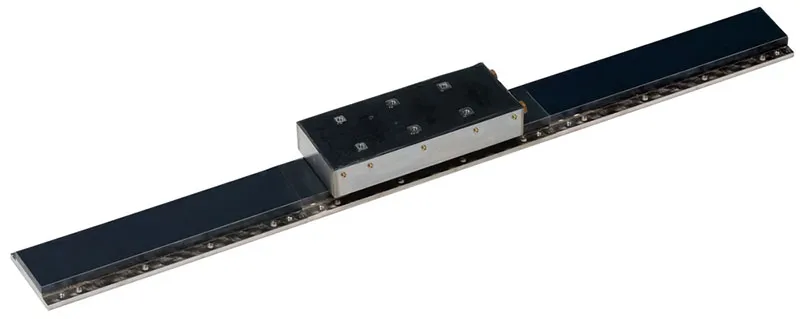

The Mitsubishi Electric LM-FP2D-12M-1SS0 is a MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series in the MELSERVO servo. 3600. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSERVO servo
Category	MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series
Type	200 V AC
Subtype	LM-FS20-480-1SS0 LM-FS20-576-1SS0
Outline	3600

Specifications

Series	MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series
Product name	LM-F Series
Power class	200 V AC
Model name: Primary side (coil)	LM-FP2D-12M-1SS0
Model name: Secondary side (magnet)	LM-FS20-480-1SS0 LM-FS20-576-1SS0
Compatible servo amplifier	For the compatible servo amplifiers, refer to the following and the relevant catalog or manual. For the MELSERVO-J5 series, " click here ". For the MELSERVO-J4 series, " click here ".
Power supply capacity [kVA] 1 2	7.5
Cooling method	Natural cooling or liquid cooling
Thrust: Continuous (natural cooling) [N] *3	600
Thrust: Continuous (liquid cooling) [N] *3	1200
Thrust: Maximum [N]	3600
Maximum speed [m/s] *4	2.0
Magnetic attraction force [N]	9000
Rated current: Natural cooling [A]	7.8
Rated current: Liquid cooling [A]	16
Maximum current [A]	58
Recommended load to motor mass ratio *5	15 times or less
Type	Permanent magnet synchronous motor
Thermistor	Built-in
Insulation class	155 (F)
Structure	Open (IP rating: IP00)
Environment: Ambient temperature	Operation: 0 °C to 60 °C (non-freezing) *6 , Storage: -15 °C to 70 °C (non-freezing)
Environment: Ambient humidity	Operation: 10 %RH to 80 %RH (non-condensing), Storage: 10 %RH to 90 %RH (non-condensing)
Environment: Ambience *8	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude	2000 m or less above sea level *9
Environment: Vibration resistance	49 m/s 2
Satisfied standards	Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Mass: Primary side (coil) [kg]	18
Mass: Secondary side (magnet) [kg]	480 mm/pc: 7.0 576 mm/pc: 9.0
