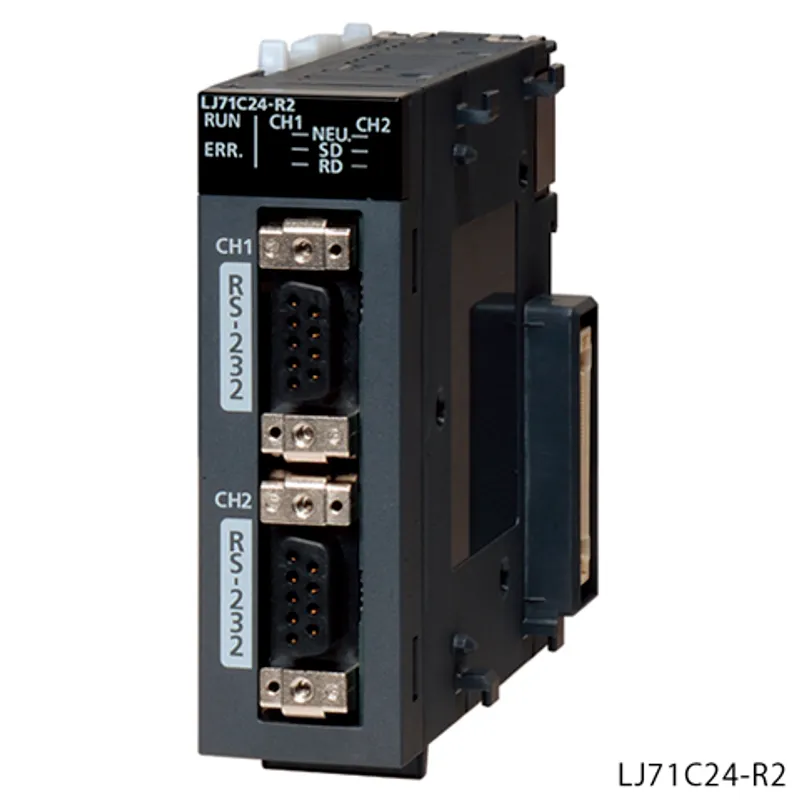

What is the Mitsubishi Electric LJ71C24-R2?

The Mitsubishi Electric LJ71C24-R2 is a serial communication in the MELSEC-L Series. RS-232: 2 channels, transmission speed: 230.4 kbps with 2 channels. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategorySerial communication
Sales status2027/09 To be end of order (Mitsubishi Electric)
OutlineRS-232: 2 channels, transmission speed: 230.4 kbps with 2 channels

Specifications

Interface: CH1RS-232-compliance (D-sub 9 pin)
Interface: CH2RS-232-compliance (D-sub 9 pin)
Communication method: LineFull-duplex/half-duplex communications
Communication method: MC protocol communicationHalf-duplex communications
Communication method: Predefined protocol communicationFull-duplex/half-duplex communications
Communication method: Nonprocedural protocol communicationFull-duplex/half-duplex communications
Communication method: Bidirectional protocol communicationFull-duplex/half-duplex communications
Synchronization methodStart-stop synchronization method
Transmission speed50, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400 bps • Transmission speed 230400 bps is available for only CH1. (Not available for CH2) • Total transmission speed of two interfaces is available up to 230400 bps. • Total transmission speed of two interfaces is available up to 115200 bps when the communication data monitoring function is used.
Transmission distance: RS-232Maximum 15 m
Data format: Start bits1
Data format: Data bits7/8
Data format: Parity bits1 (vertical parity) or none
Data format: Stop bits1/2
Access cycle: MC protocol communicationProcesses one request during the END processing of the CPU module of the station. Number of scans that must be processed/number of link scans depends on the contents of the request.
Access cycle: Predefined protocol communicationSends or receives data when requested with the dedicated instruction.
Access cycle: Nonprocedural protocol communicationSends each time a send request is issued. Can receive at any time.
Access cycle: Bidirectional protocol communicationSends each time a send request is issued. Can receive at any time.
Error detection: Parity checkSelected for all protocols and when this check is enabled, ODD or EVEN is selected by a parameter.
Error detection: Sum check codeFor the MC or bidirectional protocol, selected by a parameter. For the predefined protocol, whether or not a sum check code is needed depends on the selected protocol. For the nonprocedural protocol, selected in the user frame.
Transmission control: RS-232: DTR/DSR controlEnabled
Transmission control: RS-232: RS/CS controlEnabled
Transmission control: RS-232: CD (DCD) signal controlEnabled
Transmission control: RS-232: DC1/DC3 (Xon/Xoff) controlEnabled
Transmission control: RS-232: DC2/DC4 controlEnabled
Line configuration for connection (Target device side : CPU module side): RS-2321:1
Line configuration for data communication (Target device side : CPU module side): RS-232: MC protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: Predefined protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: Nonprocedural protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: Bidirectional protocol communication1:1
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.26 A
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth95 mm
Weight0.14 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.
