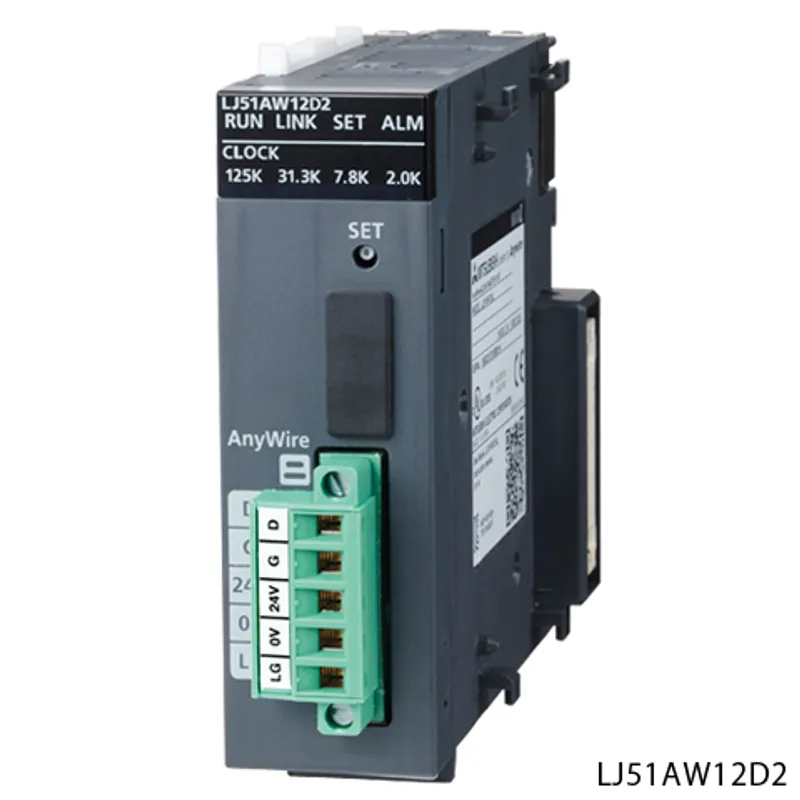

Mitsubishi Electric LJ51AW12D2

Mitsubishi MELSEC-L Series AnyWire

MPN
LJ51AW12D2
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original LJ51AW12D2 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric LJ51AW12D2?

The Mitsubishi Electric LJ51AW12D2 is a anyWire in the MELSEC-L Series. Master station, AnyWire DB A20 system compatible, powered by Anywire. Mitsubishi Electric has discontinued it (2024/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryAnyWire
TypeAnyWire DB A20
Sales status2024/09 Discontinued (Mitsubishi Electric)
OutlineMaster station, AnyWire DB A20 system compatible, powered by Anywire

Specifications

Transmission clock125 kHz/31.3 kHz/7.8 kHz/2 kHz
Maximum transmission distance (total length)125 kHz: 50 m 31.3 kHz: 200 m 7.8 kHz: 1 km 2 kHz: 3 km
Number of connectable modules125 kHz: up to 128 31.3 kHz: up to 128 7.8 kHz: up to 128 2 kHz: up to 32
Transmission systemTotal Frame Cyclic method with double-duplex mode
Connection typeBus topology (multidrop system, T-branch system, tree branch system)
Transmission protocolDedicated protocol (AnyWire DB A20)
Error control systemDouble-check system
Number of connected I/O pointsUp to 1024 points (input: 512 points/output: 512 points) (However, input: 1024 points/output: 1024 points can be set)
Transmission cable (D, G)• UL-listed general-purpose 2-/4-wire cable (VCTF, VCT 0.75...1.25 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (0.75...1.25 mm 2 , rated temperature 70 ˚C or higher) • FK4-UL075-100 (Anywire) (0.75 mm 2 , rated temperature 90 ˚C) (UL-compliant item) (Regardless of the type of the transmission line, when the transmission distance exceeds 200 m, use wires with a diamet
Power cable (24V, 0V)• UL-compliant general-purpose 2-wire cable (VCTF, VCT 0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • UL-compliant general-purpose wire (0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • FK4-UL075-100 (Anywire) (0.75 mm 2 , rated temperature 90 ˚C) (UL-compliant item)
External power supply: Voltage21.6...27.6 V DC (24 V DC, -10...+15 %), ripple voltage 0.5 Vp-p or lower
External power supply: Current0.5 A (when 128 slave modules are connected and the load current is not included)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.20 A
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth104.5 mm
Weight0.2 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

LJ51AW12D2: frequently asked questions

Can I still buy the LJ51AW12D2 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the LJ51AW12D2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can LJ51AW12D2 be shipped?

LJ51AW12D2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LJ51AW12D2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LJ51AW12D2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LJ51AW12D2, subject to availability and destination.
