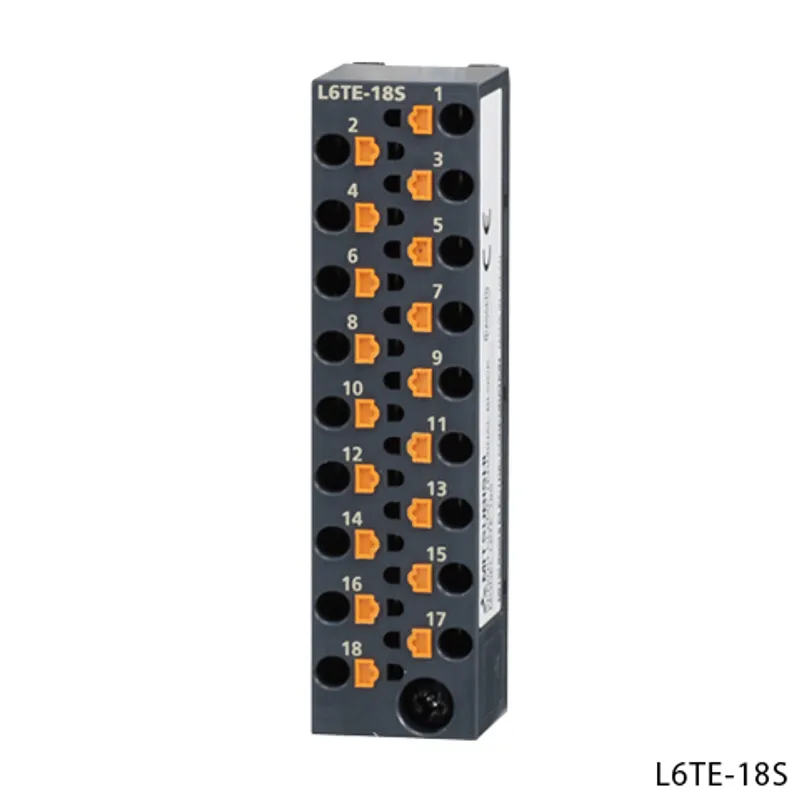

What is the Mitsubishi Electric L6TE-18S?

The Mitsubishi Electric L6TE-18S is a spring-clamp terminal block in the MELSEC-L Series. Spring clamp terminal to replace 18-point terminal block, 0.3...1.0 mm 2 (AWG22...18). Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategorySpring-clamp terminal block
Sales status2027/09 To be end of order (Mitsubishi Electric)
OutlineSpring clamp terminal to replace 18-point terminal block, 0.3...1.0 mm 2 (AWG22...18)

Specifications

Maximum rated voltage264 V AC 125 V DC
Maximum rated current8 A (terminal number: 17, 18) 2 A (terminal number: 1...16)
Applicable wire size0.3...1.0 mm 2 (22...18 AWG) (stranded wire) Φ0.5...1.0 mm (solid wire)
Wire strip length8...11 mm
Weight0.04 kg

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L6TE-18S: frequently asked questions

When can L6TE-18S be shipped?

L6TE-18S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L6TE-18S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L6TE-18S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L6TE-18S, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

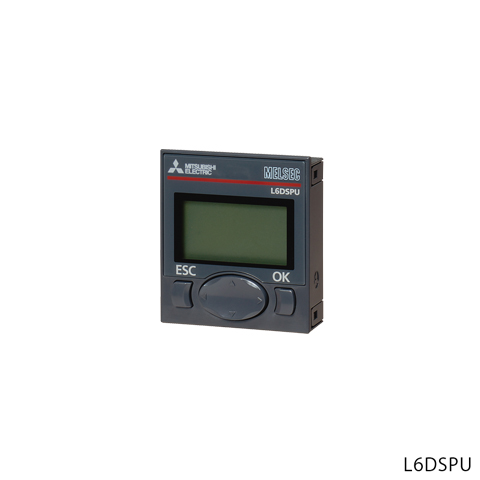

Mitsubishi Electric L6DSPU – Mitsubishi MELSEC-L Series Option
Mitsubishi Electric
L6DSPU

Mitsubishi MELSEC-L Series Option

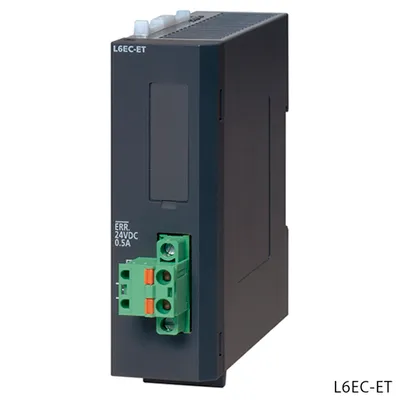

Mitsubishi Electric L6EC-ET – Mitsubishi MELSEC-L Series Option
