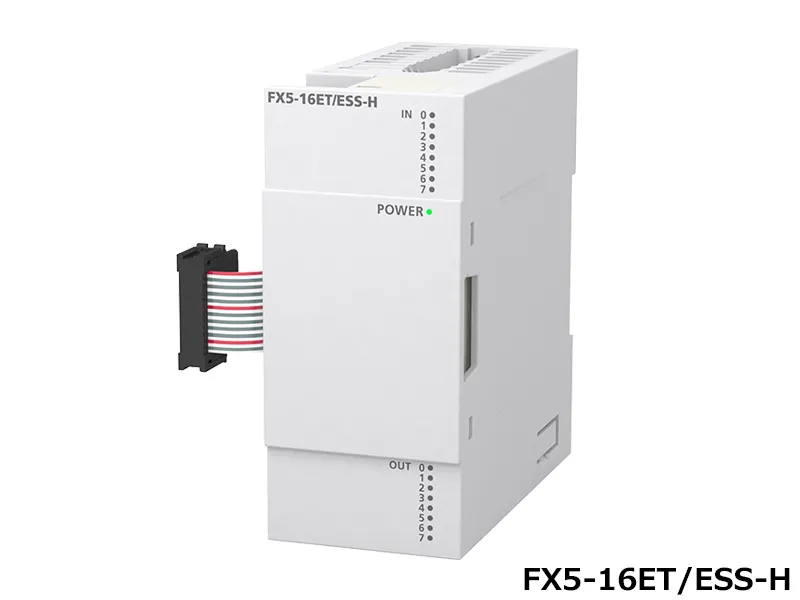

FX5-16ET/ESS-H Mitsubishi MELSEC iQ-F Series Input/Output Module

MPN: FX5-16ET/ESS-H · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Input/Output Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-16ET/ESS-H be shipped?

FX5-16ET/ESS-H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-16ET/ESS-H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-16ET/ESS-H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-16ET/ESS-H, subject to availability and destination.

The Mitsubishi Electric FX5-16ET/ESS-H is a input/Output Module in the MELSEC iQ-F Series. Screw terminal block type Input: 8 points 24 V DC Sink/source Output: 8 points Transistor Source. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Input/Output Module
Outline	Screw terminal block type Input: 8 points 24 V DC Sink/source Output: 8 points Transistor Source

Specifications

Applicable Controller	MX Controller MX-F model *1
Applicable CPU module	FX5UJ CPU module: Ver. 1.030 or later FX5U CPU module: Ver. 1.030 or later FX5UC CPU module: Ver. 1.030 or later FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3	FX5UJ CPU module: Ver. 1.085P or later FX5U CPU module: Ver. 1.025B or later FX5UC CPU module: Ver. 1.025B or later
Mass (weight)	Approx. 0.25 kg

Power supply specifications

Rated voltage: Input	24 V DC (supplied from 24 V DC service power supply or external power supply) 5 V DC (supplied from PLC)
Rated voltage: Output	24 V DC (supplied from PLC) 5 V DC (supplied from PLC)
Current consumption (5 V DC)	100 mA
Current consumption (24 V DC)	125 mA (85 mA) Current consumption when external power supply is used for the input circuit.

Input specifications

No. of input points	8 points
Input connection type	Screw terminal block (M3 screws)
Input type	Sink/source
Input signal voltage	24 V DC +20%, -15%
Input signal current	5.3 mA/24 V DC
Input impedance	4.3 kΩ
Input sensitivity current: ON	3.5 mA or more
Input sensitivity current: OFF	1.5 mA or less
Input response frequency	X0 to 5: 200 kHz X6, X7: 10 kHz
Input response time	X0 to X5: ON: 2.5 μs or less, OFF: 2.5 μs or less X6, X7: ON: 30 μs or less, OFF: 50 μs or less
Input signal format (Input sensor form)	No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor
Input circuit insulation	Photo-coupler insulation
Indication of input operation	LED is lit when input is on

Output specifications

No. of output points	8 points
Output connection type	Screw terminal block (M3 screws)
Output type	Transistor/source output
External power supply	5-30 V DC
Max. load	0.5 A/point The total load current of resistance loads per common terminal should be the following value. • 8 output points/common terminal: 1.6 A or less
Min. load	－
Open circuit leakage current	0.1 mA/30 V DC
Voltage drop when ON	Y0, Y1, Y4, Y5: 1.0 V or less Y2, Y3, Y6, Y7: 1.5 V or less
Response time: OFF→ON	Y0, Y1, Y4, Y5: 2.5 μs or less/10 mA (at 5-24 V DC) Y2, Y3, Y6, Y7: 0.2 ms or less/200 mA (at 24 V DC)
Response time: ON→OFF	Y0, Y1, Y4, Y5: 2.5 μs or less/10 mA (at 5-24 V DC) Y2, Y3, Y6, Y7: 0.2 ms or less/200 mA (at 24 V DC)
Maximum frequency	Y0, Y1, Y4, Y5: 200 kpps
Output circuit insulation	Photo-coupler insulation
Indication of output operation	LED is lit when output is on

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5-16ET/E*-H Hardware Manual (JY997D64401)	PDF · 0.42MB
MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
MELSEC iQ-F FX5 User's Manual (Application) (JY997D55401-AG)	PDF · 13.14MB
