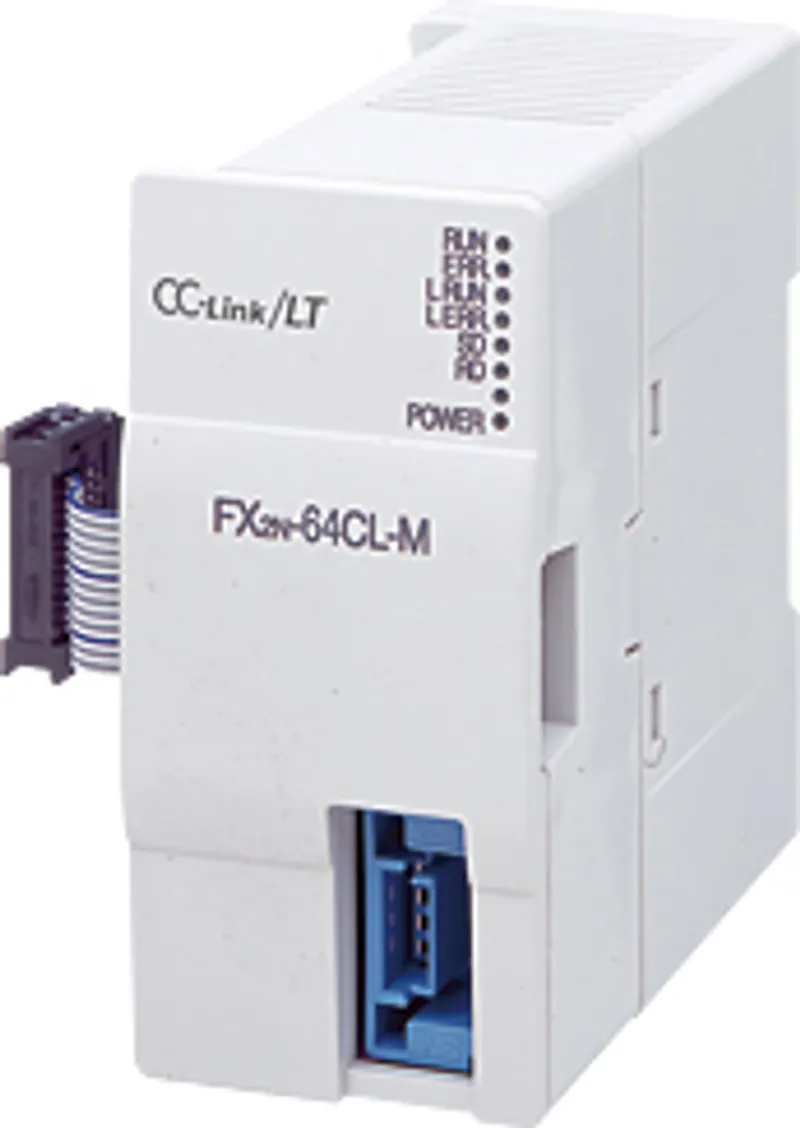

FX2N-64CL-M Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN: FX2N-64CL-M · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-64CL-M (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Data link/Communication
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2N-64CL-M now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-64CL-M, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-64CL-M be shipped?

FX2N-64CL-M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-64CL-M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-64CL-M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-64CL-M, subject to availability and destination.

The Mitsubishi Electric FX2N-64CL-M is a data link/Communication in the MELSEC-F (FX) Series. Manager station for CC-Link/LT. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Data link/Communication
Sales status	2025/03 Discontinued (Mitsubishi Electric)
Outline	Manager station for CC-Link/LT

Specifications

Applicable PLC	FX1N: Up to 4 (When connected to an FX1N Series PLC, up to two FX2N-64CL-M can be connected to each of the main and extension units.) FX1NC: Up to 2 FX2NC: Up to 3 FX3G, FX2N, FX3U: Up to 8 FX3GC, FX3UC: Up to 5 [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX1NC, FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC, FX3UC.
Number of occupied I/O points	8 points fixed (Count either the input or output points of the PLC) + Number of connected remote I/O points (in multiples of eight)
Mass (weight)	0.15 kg
Communication method	BITR method (Broadcast polling + Interval Timed Response)
Network topology	T-branch
Maximum number of link points: 4-point mode, 16-point mode	Connected to FX1N/FX3G/FX3GC Series PLC: 128 points Connected to FX2N/FX2NC/FX3U/FX3UC Series PLC: 256 points (including I/O points in PLC in each case. For PLC points, refer to the main for PLC manual.)
Error control system	CRC
Transmission speed	2.5 Mbps, 625 kbps and 156 kbps (selectable by DIP switch)
Number of link points per station: 4-point mode	4 points (8 points) ( ) shows the number of link points when composite I/O module is used.
Number of link points per station: 16-point mode	16 points (32 points) ( ) shows the number of link points when composite I/O module is used.
Link scan time: 32 stations (Points): 4-point mode	128 points
Link scan time: 32 stations (Points): 16-point mode	256 points
Link scan time: 32 stations (2.5 Mbps): 4-point mode	0.7 ms
Link scan time: 32 stations (2.5 Mbps): 16-point mode	1.0 ms
Link scan time: 32 stations (625 kbps): 4-point mode	2.2 ms
Link scan time: 32 stations (625 kbps): 16-point mode	3.8 ms
Link scan time: 32 stations (156 kbps): 4-point mode	8.0 ms
Link scan time: 32 stations (156 kbps): 16-point mode	14.1 ms
Link scan time: 64 stations (Points): 4-point mode	256 points
Link scan time: 64 stations (Points): 16-point mode	256 points
Link scan time: 64 stations (2.5 Mbps): 4-point mode	1.2 ms
Link scan time: 64 stations (2.5 Mbps): 16-point mode	2.0 ms
Link scan time: 64 stations (625 kbps): 4-point mode	4.3 ms
Link scan time: 64 stations (625 kbps): 16-point mode	7.4 ms
Link scan time: 64 stations (156 kbps): 4-point mode	15.6 ms
Link scan time: 64 stations (156 kbps): 16-point mode	27.8 ms
Number of connected stations	64 stations maximum
Remote station numbers	1 to 64
Manager station connection position	Connected at end of trunk line
RAS function	Communication error detection, Automatic return function, Slave station disconnection and Internal loop back diagnosis
Connection cable	Dedicated flat cable (0.75 mm 2 ×4) VCTF cable (Use a cable that complies with 0.75 mm 2 × 4 JIS C 3306.) High flexible cable (0.75 mm 2 ×4)
Communication with PLC	By FROM and TO instructions via the buffer memory
LED	RD, SD, RUN, ERR., L RUN, L ERR., POWER

Power supply specifications

Power supply: Voltage: 5 V DC	190 mA (internal power supply from PLC main unit)
Voltage: 20.4 V to 28.8 V DC	Current consumption: 25 mA Initial current: 35 mA Supplied from power adapter via CC-Link/LT interface connector.

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -20 to 70°C (-4 to 158 °F) when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between case and PLC grounding terminal: 500 V AC for 1 min
Insulation resistance	Between case and PLC grounding terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
