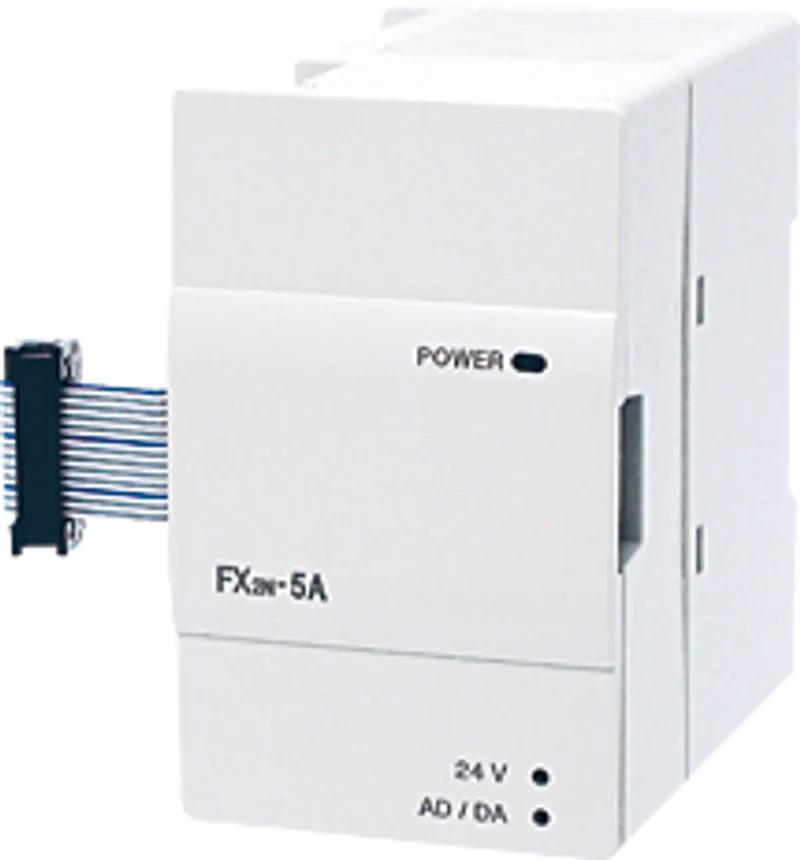

FX2N-5A Mitsubishi MELSEC-F (FX) Series Analog

MPN: FX2N-5A · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-5A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Analog
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2N-5A now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-5A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-5A be shipped?

FX2N-5A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-5A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-5A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-5A, subject to availability and destination.

The Mitsubishi Electric FX2N-5A is a analog in the MELSEC-F (FX) Series. Analog input: 4 ch Analog output: 1 ch. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2023/12 Discontinued (Mitsubishi Electric)
Outline	Analog input: 4 ch Analog output: 1 ch

Specifications

Applicable PLC	FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC.
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.3 kg
Analog input: Analog input range: Voltage input	-10 V to +10 V DC, -100 mV to +100 mV DC (Input resistance 200 kΩ)
Analog input: Analog input range: Current input	-20 mA to +20 mA, 4 mA to 20 mA (Input resistance 250 Ω)
Analog input: Number of input channels	4 channels
Analog input: Absolute maximum input: Voltage input	±15 V
Analog input: Absolute maximum input: Current input	±30 mA
Analog input: Input characteristics	The input mode (voltage/current input) can be set for each channel.
Analog input: Digital output: Voltage input	15 bits binary + sign 1-bit (during -10 V to +10 V input) 11 bits binary + sign 1-bit (during -100 mV to +100 mV input)
Analog input: Digital output: Current input	14 bits binary + sign 1 bit
Analog input: Resolution: Voltage input	When -10 V to +10 V: 312.5 μV (20 V × 1/64000) When -100 mV to +100 mV: 50 μV (200 mV × 1/4000)
Analog input: Resolution: Current input	When -20 mA to +20 mA: 10 μA (40 mA × 1/4000), 1.25 μA (40 mA × 1/32000) When 4 mA to 20 mA: 10 μA (40 mA × 1/4000), 1.25 μA (40 mA × 1/32000)
Analog input: Total accuracy: Voltage input	・Ambient temperature: 25°C±5°C When using -10 V to +10 V input mode: ±0.3% (±60 mV) for 20 V full scale When using -100 mV to +100 V input mode: ±0.5% (±100 mV) for 20 V full scale ・Ambient temperature: 0°C to 55°C When using -10 V to +10 V input mode: ±0.5% (±100 mV) for 20 V full scale When using -100 mV to +100 mV input mode: ±1.0% (±200 mV) for 20 V full scale
Analog input: Total accuracy: Current input	・Ambient temperature: 25°C±5°C When using -20 mA to +20 mA input mode: ±0.3% (±120 μA) for 40 mA full scale Same accuracy (±200 μA) for 4 mA to 20 mA input ・Ambient temperature: 0°C to 55°C When using -20 mA to +20 mA input mode: ±0.5% (±200 μA) for 40 mA full scale Same accuracy (±400 μA) for 4 to 20 mA input
Analog input: A/D conversion time	1 ms x number of channels used (when digital filter function is OFF)
Analog input: Isolation method	・The photocoupler is used to insulate the analog input area from the PLC. ・The DC/DC converter is used to insulate the analog input area from the power supply unit. ・Channels are not insulated from each other.
Analog output: Analog output range: Voltage output	-10 V to +10 V DC (External load resistance: 5 k to 1 MΩ)
Analog output: Analog output range: Current output	0 mA to 20 mA DC, 4 mA to 20 mA DC (External load resistance: 500 Ω or less)
Analog output: No. of output channels	1 channel
Analog output: Output characteristics	The output mode (voltage/current output) can be set.
Analog output: Digital input: Voltage output	11 bits binary + sign 1 bit
Analog output: Digital input: Current output	10 bits binary (without the sign)
Analog output: Resolution: Voltage output	When -10 V to +10 V: 5 mV (20 V × 1/4000)
Analog output: Resolution: Current output	When 0 mA to 20 mA: 20 μA (20 mA × 1/1000) Also 20 μA for 4 mA to 20 mA
Analog output: Total accuracy: Voltage output	Ambient temperature: 25°C±5°C ±0.5% (±100 mV) for 20 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±200 mV) for 20 V full scale
Analog output: Total accuracy: Current output	Ambient temperature: 25°C±5°C ±0.5% (±200 μA) for 40 mA full scale, Same accuracy (±200 μA) for 4 mA to 20 mA input Ambient temperature: 0°C to 55°C ±1.0% (±400 μA) for 40 mA full scale, Same accuracy for 4 mA to 20 mA input (±400 μA)
Analog output: Time required for D/A conversion	2 ms (when digital filter function is OFF)
Analog output: Isolation method	・The photocoupler is used to insulate the analog output area from the PLC. ・The DC/DC converter is used to insulate the analog output area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply

5 V DC 70 mA (internal power supply from PLC main unit) 24 V DC ±10% 90 mA (External power supply)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -20 to 70°C (-4 to 158 °F) when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
