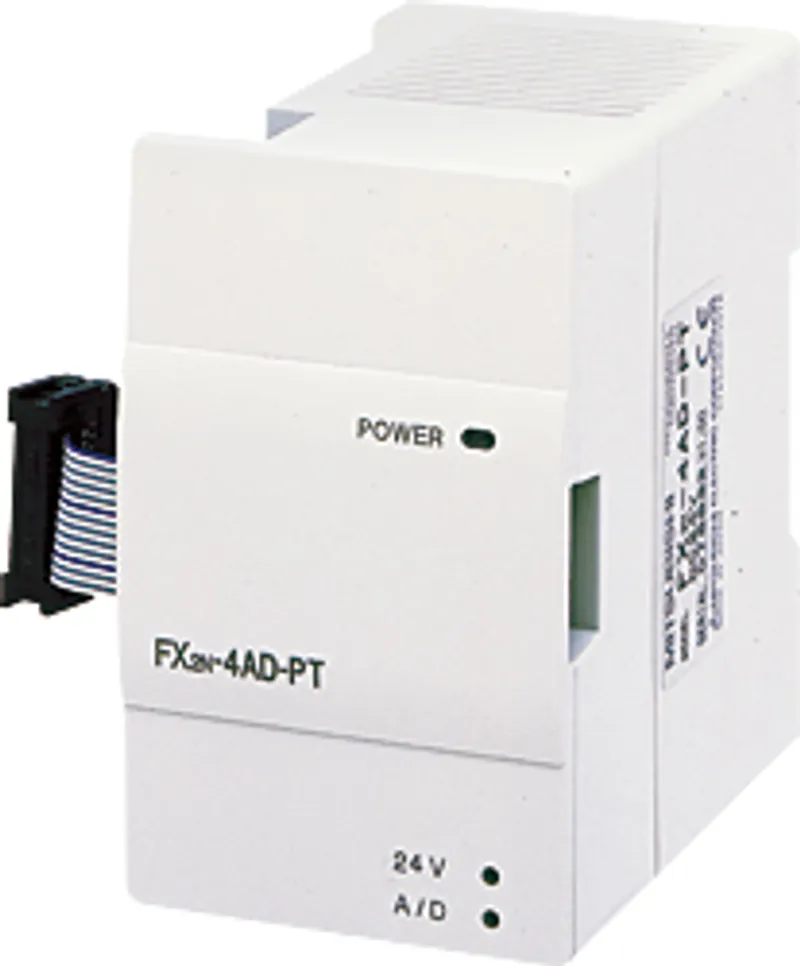

FX2N-4AD-PT Mitsubishi MELSEC-F (FX) Series Analog

MPN: FX2N-4AD-PT · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-4AD-PT (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Analog
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2N-4AD-PT now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-4AD-PT, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-4AD-PT be shipped?

FX2N-4AD-PT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-4AD-PT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-4AD-PT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-4AD-PT, subject to availability and destination.

The Mitsubishi Electric FX2N-4AD-PT is a analog in the MELSEC-F (FX) Series. Pt100 temperature sensor input: 4ch. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2015/12 Discontinued (Mitsubishi Electric)
Outline	Pt100 temperature sensor input: 4ch

Specifications

Applicable PLC	FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC.
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.3 kg
Temperature sensor/Temperature control: Number of input channels	4 channels
Temperature sensor/Temperature control: Input signal	3-wire platinum resistance thermometer sensor 4 points (CH1, CH2, CH3, CH4) Pt100 JIS C 1604-1997, DIN43760 JPt100 JIS C 1604-1981
Temperature sensor/Temperature control: Input signal current	1 mA (Constant current system)
Temperature sensor/Temperature control: Rated temperature range	-100℃ to +600℃ (-148°F to +1112°F)
Temperature sensor/Temperature control: Digital output	-1000 to +6000 (-1480 to +11120) Digital values for Celsius setting are given in parentheses.
Temperature sensor/Temperature control: Resolution	0.2℃ to 0.3℃ (0.36°F to 0.54°F)
Temperature sensor/Temperature control: Overall accuracy, Measurement accuracy	±1% for full scale
Temperature sensor/Temperature control: Conversion speed	60 ms (15 ms × 4 channels)
Temperature sensor/Temperature control: Control system	In accordance with a sequence program
Temperature sensor/Temperature control: Isolation method	・The photocoupler is used to insulate the analog input area from the PLC. ・The DC/DC converter is used to insulate the analog input area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply

5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC ±10% 50 mA (External power supply)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
