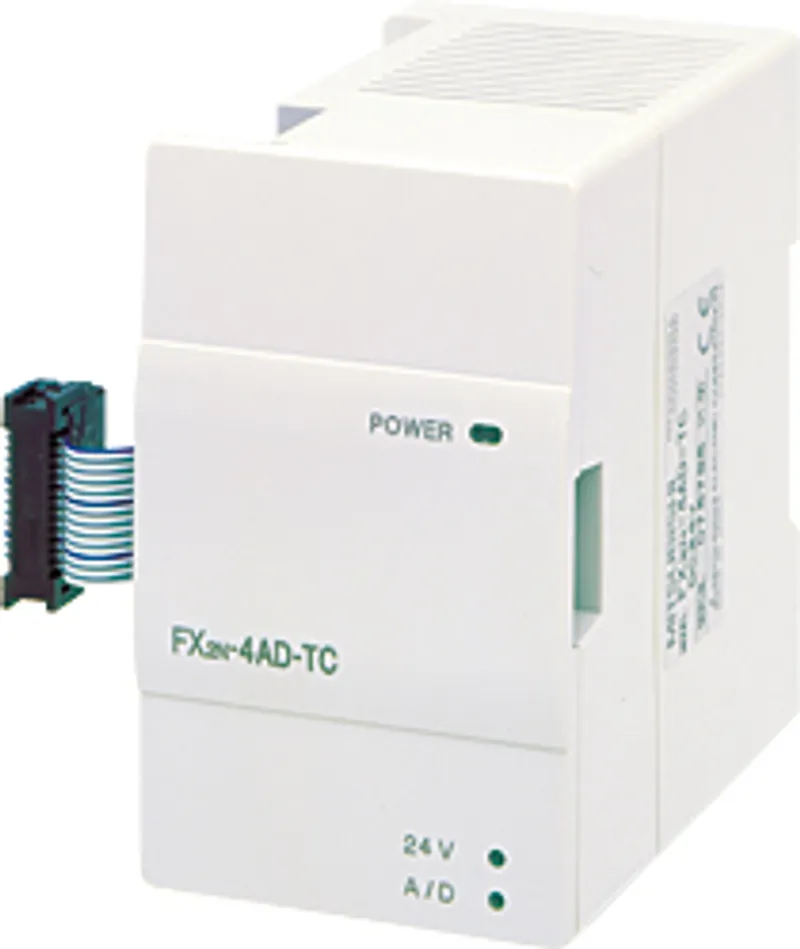

The Mitsubishi Electric FX2N-4AD-TC is a analog in the MELSEC-F (FX) Series. Thermocouple thermometer input: 4ch. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2015/12 Discontinued (Mitsubishi Electric)
Outline	Thermocouple thermometer input: 4ch

Specifications

Applicable PLC	FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC.
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.3 kg
Temperature sensor/Temperature control: Number of input channels	4 channels
Temperature sensor/Temperature control: Input signal	Thermocouple K type or J type (K type or J type can be used interchangeably for each channel) 4 channels JIS C 1602-1995
Temperature sensor/Temperature control: Rated temperature range: Type K	-100℃ to +1200℃ (-148°F to +2192°F)
Temperature sensor/Temperature control: Rated temperature range: Type J	-100℃ to +600℃ (-148°F to +1112°F)
Temperature sensor/Temperature control: Digital output: Type K	-1000 to +12000 (-1480 to +21920) Digital values for Celsius setting are given in parentheses.
Temperature sensor/Temperature control: Digital output: Type J	-1000 to +6000 (-1480 to +11120) Digital values for Celsius setting are given in parentheses.
Temperature sensor/Temperature control: Resolution: Type K	0.4℃ (0.72°F)
Temperature sensor/Temperature control: Resolution: Type J	0.3℃ (0.54°F)
Temperature sensor/Temperature control: Overall accuracy, Measurement accuracy	±0.5% for +1°C full scale
Temperature sensor/Temperature control: Conversion speed	(240 ms±2%) × 4 channels (The conversion speed does not include channels that are not in use.)
Temperature sensor/Temperature control: Control system	In accordance with a sequence program
Temperature sensor/Temperature control: Operation when input is disconnected/short-circuited	Detected as scale over. The operation depends on the sequence program.
Temperature sensor/Temperature control: Isolation method	・The photocoupler is used to insulate the analog input area from the PLC. ・The DC/DC converter is used to insulate the analog input area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply

5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC ±10% 50 mA (External power supply)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
