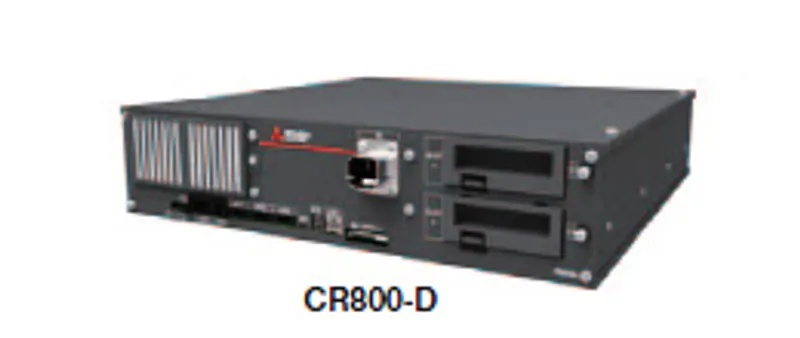

Mitsubishi Electric CR800-CHD

Mitsubishi MELFA robot CR800-D

MPN
CR800-CHD
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric CR800-CHD?

The Mitsubishi Electric CR800-CHD is a CR800-D in the MELFA robot. Standalone type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELFA robot
CategoryCR800-D
OutlineStandalone type

Specifications

CategoryRobot Controller
SeriesCR800-D
TypeCR800-CHD
Applicable robot armRH-3CRH/6CRH
Robot CPUBuilt into controller
Path control methodPTP control and CP control
Number of axes controlledSimultaneously 4 axes
Robot languageMELFA-BASIC V, VI
Position teaching methodTeaching method, MDI method
Memory capacity: Number of teaching points: points39,000
Memory capacity: Number of steps: step78,000
External input/ output: General-purpose I/O: points32 input/32 output
External input/ output: Dedicated I/O: pointsAssigned to general-purpose I/O
External input/ output: Gripper open/close: points8 input / 8 output
External input/ output: Emergency stop input: points1 (redundant)
External input/ output: Door switch input: points1 (redundant)
External input/ output: Enabling device input: points-
External input/ output: Mode selector switch input: points1 (redundant) (*1)
External input/ output: Emergency stop output: points1 (redundant)
External input/ output: Mode output: points1 (redundant)
External input/ output: Robot error output: points1 (redundant)
External input/ output: Synchronization of additional axes: points1 (redundant)
External input/ output: Encoder input: channels2
Interface: RS-232C: ports-
Interface: RS-232: ports-
Interface: RS-422: ports1 (dedicated T/B)
Interface: Ethernet: ports1 (for customer 1000BASE-T/100BASE-TX/10BASE-T) 1 (dedicated T/B : 100BASE-TX/10BASE-T
Interface: USB: ports1 (Ver. 2.0 device functions only, mini B terminal)
Interface: Hand dedicated slot: slots-
Interface: Key switch interface: points-
Interface: Additional axis, force sensor interface: channels1(付加軸インタフェースのみ)
Interface: Tracking interface: channels-
Interface: Memory slot: slots-
Interface: Extension slot: slots-
Interface: Option slot: slots2 (*2)
Interface: R/C communication interface: channels-
Interface: Remote I/O: channels1
Interface: Memory extension slot: slots1
Ambient temperature: ˚C0 to 40
Relative humidity: %RH45 to 85
Power supply: Input voltage range: VSingle-phase AC200 to 230 (*3)
Power supply: Power capacity: KVA0.5 (*4)
External dimensions (including legs): mm430(W)×425(D)×99.5(H)
Weight: kgApprox. 12.5
Structure [protective specification]Self-contained floor type/open structure (Vertical and horizontal position can be placed) [IP20]
Grounding: Ω100 or less (class D grounding) (*5)
Control TypeStandalone type

CR800-CHD: frequently asked questions

When can CR800-CHD be shipped?

CR800-CHD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CR800-CHD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CR800-CHD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CR800-CHD, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric CR800-20VD – Mitsubishi MELFA robot CR800-D
Mitsubishi Electric
CR800-20VD

Mitsubishi MELFA robot CR800-D

Mitsubishi Electric CR800-20VQ – Mitsubishi MELFA robot CR800-Q
Mitsubishi Electric
CR800-20VQ

Mitsubishi MELFA robot CR800-Q

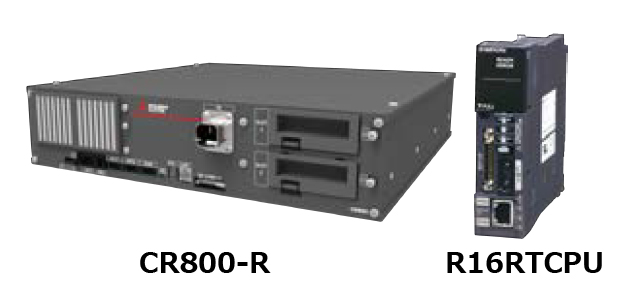

Mitsubishi Electric CR800-20VR – Mitsubishi MELFA robot CR800-R
