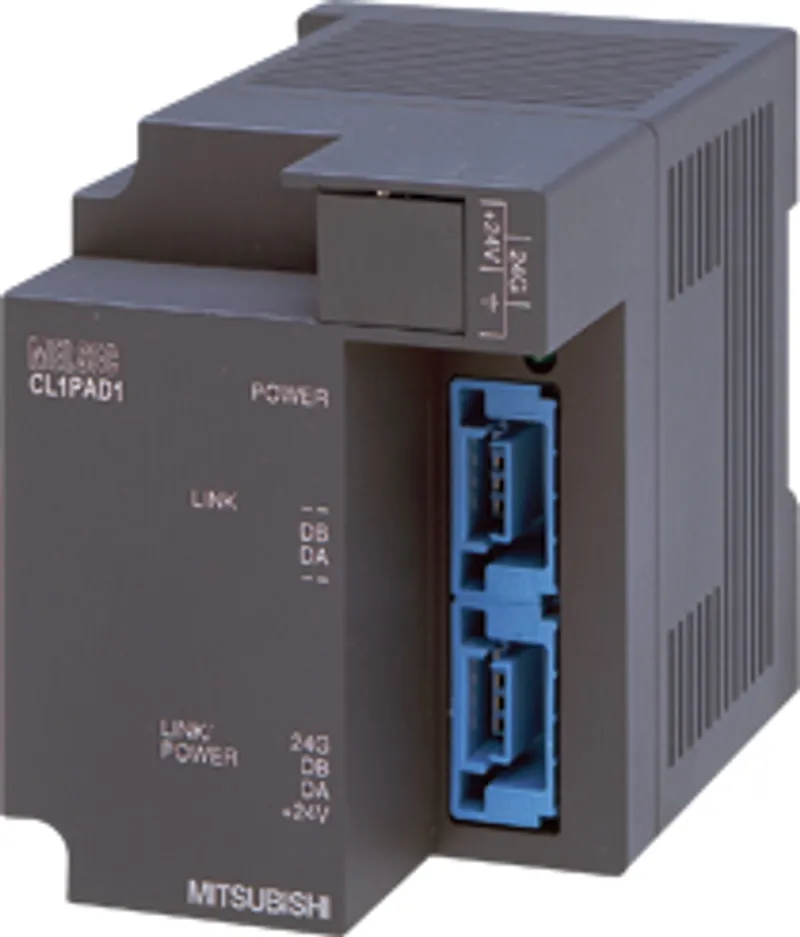

Mitsubishi Electric CL1PAD1

Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN
CL1PAD1
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original CL1PAD1 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric CL1PAD1?

The Mitsubishi Electric CL1PAD1 is a data link/Communication in the MELSEC-F (FX) Series. Power adapter for CC-Link/LT. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryData link/Communication
Sales status2025/03 Discontinued (Mitsubishi Electric)
OutlinePower adapter for CC-Link/LT

Specifications

Mass (weight)0.26 kg
Voltage input range24 V DC (maximum of 28.8 V DC)
Maximum ratings current5.0 A (Use the power adapter in the range in which the total current consumption of each module does not exceed the maximum rated current while the power is supplied (except the period immediately after the power is turned on).)
External connection method・Supplies power from outside to power adapter: 3 points (M3 screws) on terminal block ・Communication line/module power supply module: Connector (with 4 pins) dedicated to CC-Link/LT × 2

Specifications

Ambient temperature0 to 55°C (32 to 131°F) when operating and -25 to 70°C (-13 to 158°F) when stored
Ambient humidity5 to 95% RH (no condensation) when operating/stored
Vibration resistance: When intermittent vibration is present: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: When intermittent vibration is present: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: When continuous vibration is present: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: When continuous vibration is present: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 , 3 times in each of the X, Y and Z directions
Insulation resistanceBetween external terminal batch and ground terminal: 10 MΩ when measured with 500 V DC insulation resistance tester
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
Installation locationInside control panel
Over-voltage categoryII or less This category indicates in which area (inside the site) in relation to the public wiring net the equipment is to be connected. Category II applies, for example, to equipment whose power is supplied from a fixed facility. The surge-resistant voltage of equipment rated 300 V is 2,500 V.
Pollution degree2 or less This index indicates the degree of conductive substances generated in the environment generated in which the module is used. The degree of contamination 2 indicates that contamination is caused by the generation of only non-conductive substances, however, temporary conduction may be caused by accidental condensation.

CL1PAD1: frequently asked questions

Can I still buy the CL1PAD1 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the CL1PAD1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can CL1PAD1 be shipped?

CL1PAD1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CL1PAD1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CL1PAD1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CL1PAD1, subject to availability and destination.
