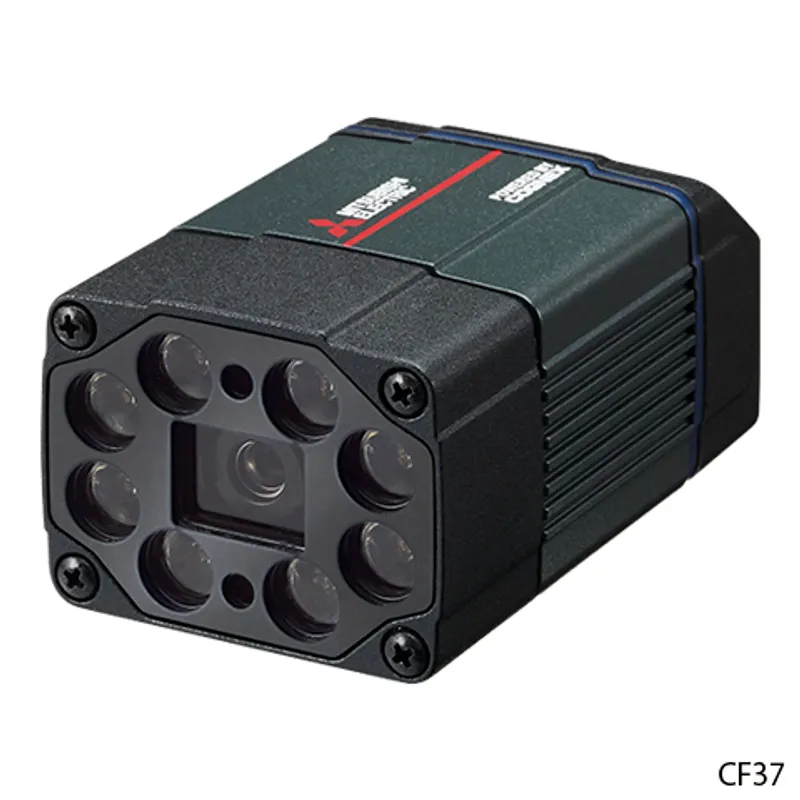

CF37-LR Mitsubishi MELSENSOR vision CF37
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original CF37-LR (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSENSOR vision – Code Reader |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the CF37-LR now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the CF37-LR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CF37-LR be shipped?
CF37-LR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CF37-LR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CF37-LR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CF37-LR, subject to availability and destination.
The Mitsubishi Electric CF37-LR is a CF37 in the MELSENSOR vision. 2048 × 1536. Mitsubishi Electric has discontinued it (2025/04 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSENSOR vision |
| Category | CF37 |
| Sales status | 2025/04 Discontinued (Mitsubishi Electric) |
| Outline | 2048 × 1536 |
Specifications
| Series | CF37 |
| Model name | CF37-LR |
| Supported codes: 1-D code | Code 128, Code 25, Code 93, Code 39, Codabar, Interleaved 2 of 5, UPC/EAN, MSI |
| Supported codes: 2-D code | Data Matrix (ECC 0, 50, 80, 100, 140, 200), QR Code, Micro QR Code, MaxiCode, Aztec Code |
| Supported codes: Stacked code | PDF 417, Micro PDF 417 |
| Reading direction for 1-D code | All directions |
| Reading algorithm | 1DMax™, 2DMax™ (PowerGrid technology is available), HotBars Ⅱ™ |
| Image sensor | 1/1.8 inch CMOS, 7.2 mm × 5.4 mm (W × H), 3.45 μm sq.pixels |
| Lens | C-mount/24 mm F: 10, liquid lens |
| Image resolution (pixels) | 2048 × 1536 |
| Electronic shutter speed | Minimum exposure: 15 μs Maximum exposure: 25 ms |
| Maximum scan speed | 55 full frames per second *1 |
| Maximum decode rate | 45/sec |
| Power supply requirements | External power supply: 24 V DC ± 10% LPS or NEC class 2 only |
| Current consumption | Typ. 0.3 A, Max. 1.5 A *2 |
| Input 0 (trigger) | Opto-isolated image acquisition trigger input x 1 |
| Input 0 (trigger): Voltage | ON: 15...28 V DC (standard 24 VDC), OFF: 0...5 V DC (standard 0 V DC) |
| Input 0 (trigger): Current | 4.2 mA/24 V DC |
| Input 1...3 | Opto-isolated general-purpose input x 3 |
| Input 1...3: Voltage | ON: 15...28 V DC (standard 24 V DC), OFF: 0...5 V DC (standard 0 V DC) |
| Input 1...3: Current | 4.2 mA/24 V DC |
| Output 0...3 | Opto-isolated general-purpose output x 4 |
| Output 0...3: Voltage | 26.4 V DC maximum through external load |
| Output 0...3: Current | ON: Max. 50 mA (sink or source) OFF: Leakage current Max. 100 μA External load resistance: 200 Ω/12 V DC |
| Communication | RS-232 (R x D, T x D (TIA/EIA-232-F compliant)), Ethernet, CC-Link IE Field Network Basic, SLMP, MODBUS®/TCP, FTP, EtherNet/IP™ |
| RS-232 communication method | Full-duplex communication or half-duplex communication |
| Ethernet communication speed | 10/100/1000 Mbps |
| Material | Aluminum |
| Installation | M3 screw hole x 4 |
| Dimensions | 54.0 mm × 42.0 mm × 91.4 mm |
| Weight | 0.29 kg |
Specifications
| Ambient operating temperature | 0...40°C |
| Ambient storage temperature | –20...80°C |
| Maximum humidity | Less than 95% RH, non-condensing |
| Vibration resistance | IEC 60068-2-6: A vibration of 10 G (10...500 Hz at 100 m/s 2 with 15 mm width) was applied to each of the three main axes for 2 hours. |
| Shock resistance | IEC 60068-2-27: A shock of 80 G (800 m/s 2 at 11 ms, half-sinusoidal) was applied to each of the three main axes 18 times. |
| Protective structure | IP67 |
| Installation location | Outside a control panel |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| Code Reader CF37 User's Manual (SH-082325ENG-C) | PDF · 1.98MB |
| Code Reader Connection Guide (BCN-P5999-1074-E) | PDF · 11.47MB |
| Code Reader Setting Guide (BCN-P5999-1258-E) | PDF · 3.96MB |
| Before Using the Product (BCN-P5999-1073) | PDF · 0.19MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestCD-40GNA Mitsubishi Power monitoring Current Transformers (CT)
Available on requestCD-40H Mitsubishi Power monitoring Current Transformers (CT)
Available on requestCF26-LR Mitsubishi MELSENSOR vision CF26
Available on requestCF26-SR Mitsubishi MELSENSOR vision CF26
Available on requestCF37-SR Mitsubishi MELSENSOR vision CF37
Available on requestCL1PAD1 Mitsubishi MELSEC-F (FX) Series Data link/Communication
Available on requestCL1PSU-2A Mitsubishi MELSEC-F (FX) Series Data link/Communication

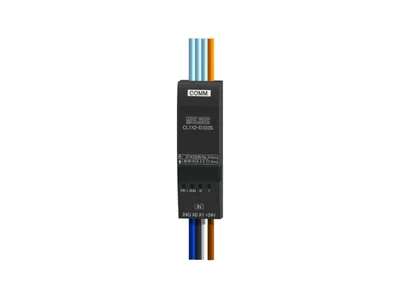

Available on requestCL1X2-D1D3S Mitsubishi MELSEC-F (FX) Series Data link/Communication
