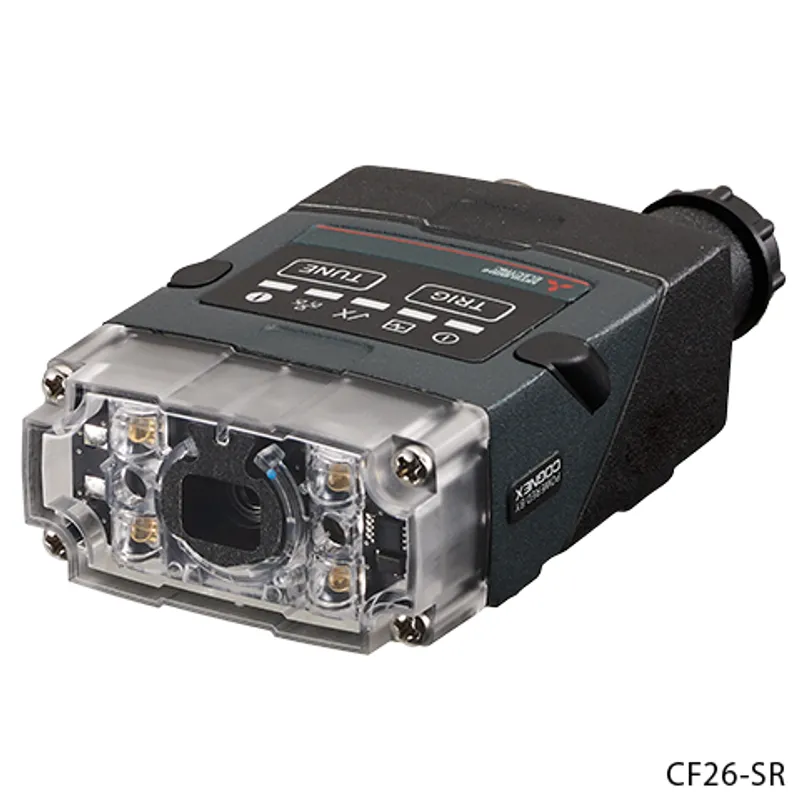

CF26-SR Mitsubishi MELSENSOR vision CF26
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original CF26-SR (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSENSOR vision – Code Reader |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the CF26-SR now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the CF26-SR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can CF26-SR be shipped?
CF26-SR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CF26-SR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CF26-SR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CF26-SR, subject to availability and destination.
The Mitsubishi Electric CF26-SR is a CF26 in the MELSENSOR vision. 1280 × 960. Mitsubishi Electric has discontinued it (2025/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSENSOR vision |
| Category | CF26 |
| Sales status | 2025/09 Discontinued (Mitsubishi Electric) |
| Outline | 1280 × 960 |
Specifications
| Series | CF26 |
| Model name | CF26-SR |
| Supported codes: 1-D code | Code 128, Code 25, Code 93, Code 39, PharmaCode, Codabar, Interleaved 2 of 5, UPC/EAN/JAN, MSI |
| Supported codes: 2-D code | Data Matrix (ECC 0, 50, 80, 100, 140, 200), QR Code, Micro QR Code, MaxiCode, Aztec Code, VeriCode *1 |
| Supported codes: Stacked code | PDF 417, EAN.UCC Composite, Micro PDF 417, DataBar |
| Reading direction for 1-D code | All directions |
| Reading algorithm | 1DMax™, 2DMax™ (PowerGrid technology is available), HotBars Ⅱ™ |
| Image sensor | 1/3 inch CMOS, 4.8 mm × 3.6 mm (W × H), 3.75 μm sq.pixels, global shutter |
| Lens | S-mount/6.2 mm F: 5, liquid lens |
| Image resolution (pixels) | 1280 × 960 |
| Maximum scan speed | 45 full frames per second *2 |
| Maximum decode rate | 45/sec |
| Power supply requirements | External power supply: 24 V DC ± 10% LPS or NEC class 2 only |
| Current consumption | Typ. 0.25 A, Max. 1.0 A *3 |
| Input 0 (trigger) | Opto-isolated image acquisition trigger input x 1 |
| Input 0 (trigger): Voltage | ON: 15...25 V DC (standard 24 V DC), OFF: 0...5 V DC (standard 0 V DC) |
| Input 0 (trigger): Current | 4.2 mA/24 V DC |
| Input 1 (general-purpose input) | Opto-isolated general-purpose input x 1 |
| Input 1 (general-purpose input): Voltage | ON: 15...25 V DC (standard 24 V DC), OFF: 0...5 V DC (standard 0 V DC) |
| Input 1 (general-purpose input): Current | 4.2 mA/24 V DC |
| Output 0...3 | Opto-isolated general-purpose output x 4 |
| Output 0...3: Voltage | 28 V DC maximum through external load |
| Output 0...3: Current | ON: Max. 50 mA (sink or source) OFF: Leakage current Max. 100 μA External load resistance: 150 Ω/12 V DC, 470 Ω/24 V DC |
| Communication | RS-232 (R x D, T x D (TIA/EIA-232-F compliant)), Ethernet, CC-Link IE Field Network Basic, SLMP, FTP |
| RS-232 communication method | Full-duplex communication or half-duplex communication |
| Ethernet communication speed | 10/100 Mbps |
| Material | Aluminum |
| Installation | M3 screw hole x 4 |
| Dimensions | Straight configuration: 44.0 mm x 22.5 mm x 79.3 mm Right-angle configuration: 44.0 mm x 52.0 mm x 49.3 mm |
| Weight | 0.14 kg |
Specifications
| Ambient operating temperature | 0...40°C |
| Ambient storage temperature | –10...60°C |
| Maximum humidity | Less than 95% RH, non-condensing |
| Vibration resistance | IEC 60068-2-6: A vibration of 10 G (10...500 Hz at 100 m/s 2 with 15 mm width) was applied to each of the three main axes for 2 hours. |
| Shock resistance | IEC 60068-2-27: 1000 half sinusoidal shocks with 11 G in 10 ms were applied. |
| Protective structure | IP65 (when all the connectors are connected to cables or sealed with sealing caps) |
| Installation location | Outside a control panel |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| Code Reader CF26 User's Manual (SH-082092ENG-D) | PDF · 1.85MB |
| Code Reader Connection Guide (BCN-P5999-1074-E) | PDF · 11.47MB |
| Code Reader Setting Guide (BCN-P5999-1258-E) | PDF · 3.96MB |
| Before Using the Product (BCN-P5999-1073) | PDF · 0.19MB |
