What is the Kuka U8124592?

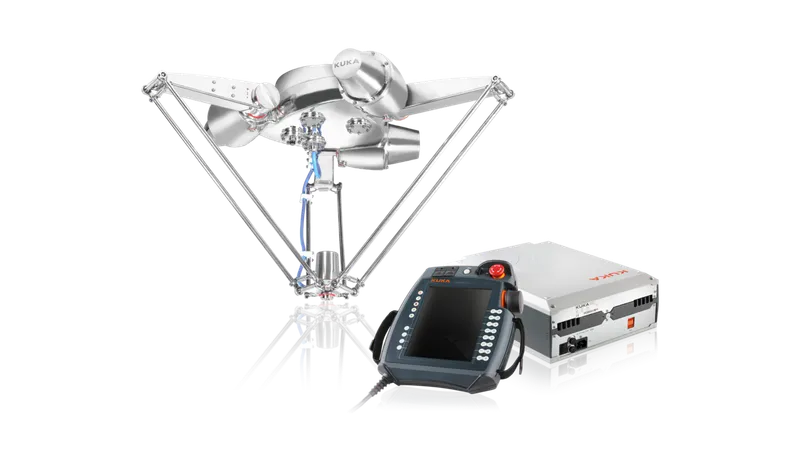

Kuka KR 3 D1200 HM, manufacturer part number U8124592. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 6 kg |
| Rated payload | 3 kg |
| Maximum reach | 1200 mm |
| Mounting position | Ceiling |
| Pose repeatability (ISO 9283) | 0.05 mm |
| Number of axes | 4 |
| Ambient temperature during operation | 0 °C to 45 °C (273 K to 318 K) |
| Ambient temperature during stor./transp. | -25 °C to 55 °C (248 K to 328 K) |
| Prot. rating, in-line wrist (IEC 60529) | IP69K |
| A1 | 600 °/s |
| A2 | 600 °/s |
| A3 | 600 °/s |
| A4 | 840 °/s |
U8124592: frequently asked questions
When can U8124592 be shipped?
U8124592 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U8124592 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U8124592 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U8124592, subject to availability and destination.
