What is the Kuka U8105151?

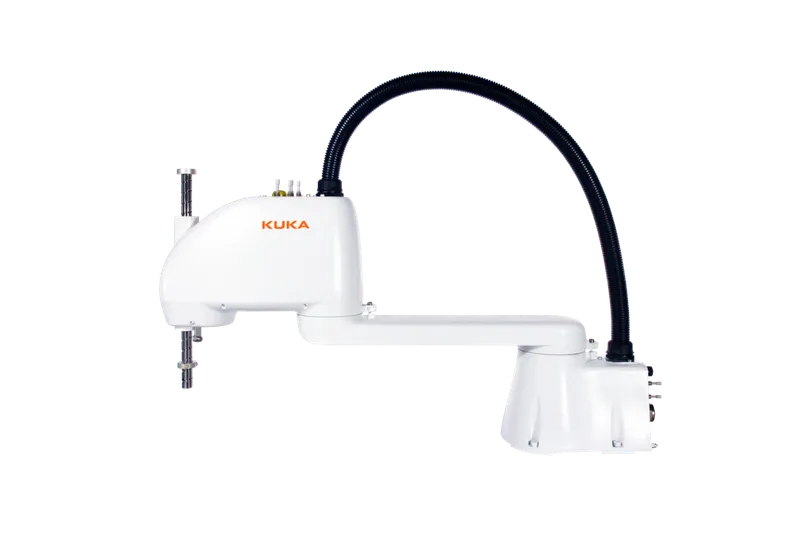

Kuka KR 6 R700 Z200 incl. KR C5 micro, manufacturer part number U8105151. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Maximum payload | 6 kg |
| Rated payload | 3 kg |
| Maximum reach | 700 mm |
| Mounting position | Floor |
| Pose repeatability (ISO 9283) | 0.02 mm |
| Number of axes | 4 |
| Ambient temperature during operation | 5 °C to 40 °C (278 K to 313 K) |
| Ambient temperature during stor./transp. | -25 °C to 55 °C (248 K to 328 K) |
| Protection rating (IEC 60529) | IP20 |
| A1 | 420 °/s |
| A2 | 720 °/s |
| A4 | 2000 °/s |
| Height | 134 |
| Depth | 392 mm |
| Maximum number of servo axes | 6 |
| Rated supply voltage | AC 1x 200 V - 240 V |
| Mains frequency | 50...60 Hz |
| Mains side fusing | 1x 16 A slow-blowing, type C |
| Rated connected load | 1.3 kVA |
U8105151: frequently asked questions
When can U8105151 be shipped?
U8105151 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U8105151 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U8105151 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U8105151, subject to availability and destination.
