Kuka

Kuka U8106895

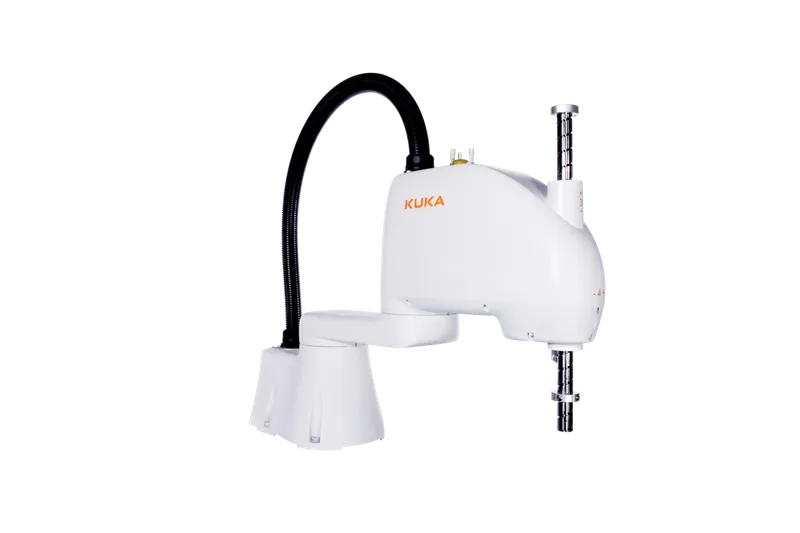

KR 6 R500 Z200 incl. KR C5 micro

MPN: U8106895
Category: SCARA

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U8106895?

Kuka KR 6 R500 Z200 incl. KR C5 micro, manufacturer part number U8106895. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	6 kg
Rated payload	3 kg
Maximum reach	500 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.02 mm
Number of axes	4
Ambient temperature during operation	5 °C to 40 °C (278 K to 313 K)
Ambient temperature during stor./transp.	-25 °C to 55 °C (248 K to 328 K)
Protection rating (IEC 60529)	IP20
A1	420 °/s
A2	720 °/s
A4	2000 °/s
Height	134
Depth	392 mm
Maximum number of servo axes	6
Rated supply voltage	AC 1x 200 V - 240 V
Mains frequency	50...60 Hz
Mains side fusing	1x 16 A slow-blowing, type C
Rated connected load	1.3 kVA

U8106895: frequently asked questions

When can U8106895 be shipped?

U8106895 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U8106895 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U8106895 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U8106895, subject to availability and destination.
