SCARA Parts
Compare SCARA
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum payload | Rated payload | Maximum reach | A1 | A2 |
|---|---|---|---|---|---|
| U8105151 | 6 kg | 3 kg | 700 mm | 420 °/s | 720 °/s |
| U8106895 | 6 kg | 3 kg | 500 mm | 420 °/s | 720 °/s |
| U810111412 | 12 kg | 6 kg | 850 mm | 400 °/s | 660 °/s |
| U810117071 | 6 kg | 3 kg | 500 mm | 420 °/s | 720 °/s |
| U810147501 | 60 kg | 20 kg | 1200 mm | 230 °/s | 260 °/s |
| U810114235 | 6 kg | 3 kg | 500 mm | 420 °/s | 720 °/s |

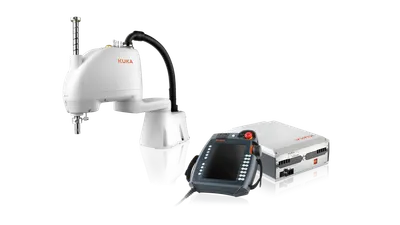

| U810114236 | 6 kg | 3 kg | 500 mm | 420 °/s | 720 °/s |
| U810110464 | 20 kg | 10 kg | 1000 mm | 350 °/s | 530 °/s |
| U8168020 | 6 kg | 3 kg | 700 mm | 420 °/s | 720 °/s |
| U8182209 | 6 kg | 3 kg | 700 mm | 420 °/s | 720 °/s |
| U8182210 | 6 kg | 3 kg | 700 mm | 420 °/s | 720 °/s |
| U8182211 | 6 kg | 3 kg | 700 mm | 420 °/s | 720 °/s |
Common to all listed parts
| Mounting position | Floor |
| Number of axes | 4 |
| Ambient temperature during stor./transp. | -25 °C to 55 °C (248 K to 328 K) |
| Protection rating (IEC 60529) | IP20 |
| Rated supply voltage | AC 1x 200 V - 240 V |
| Mains frequency | 50...60 Hz |
