Kuka U810110562

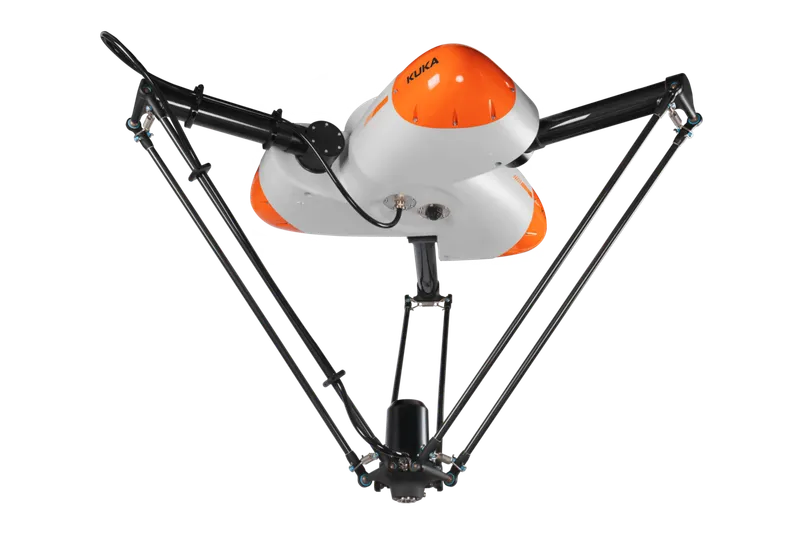

KR 3 D1200 incl. KR C5 micro

MPN: U810110562
Category: Delta

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Kuka parts? We buy surplus →

What is the Kuka U810110562?

Kuka KR 3 D1200 incl. KR C5 micro, manufacturer part number U810110562. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	6 kg
Rated payload	3 kg
Maximum reach	1200 mm
Mounting position	Ceiling
Pose repeatability (ISO 9283)	0.05 mm
Number of axes	4
Ambient temperature during operation	0 °C to 45 °C (273 K to 318 K)
Ambient temperature during stor./transp.	-25 °C to 55 °C (248 K to 328 K)
Protection rating (IEC 60529)	IP20
Prot. rating, in-line wrist (IEC 60529)	IP67
A1	600 °/s
A2	600 °/s
A3	600 °/s
A4	1091 °/s
Height	134
Depth	392 mm
Maximum number of servo axes	6
Rated supply voltage	AC 1x 200 V - 240 V
Mains frequency	50...60 Hz
Mains side fusing	1x 16 A slow-blowing, type C
Rated connected load	1.3 kVA

U810110562: frequently asked questions

When can U810110562 be shipped?

U810110562 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U810110562 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U810110562 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U810110562, subject to availability and destination.
