Kuka

Kuka U810111531

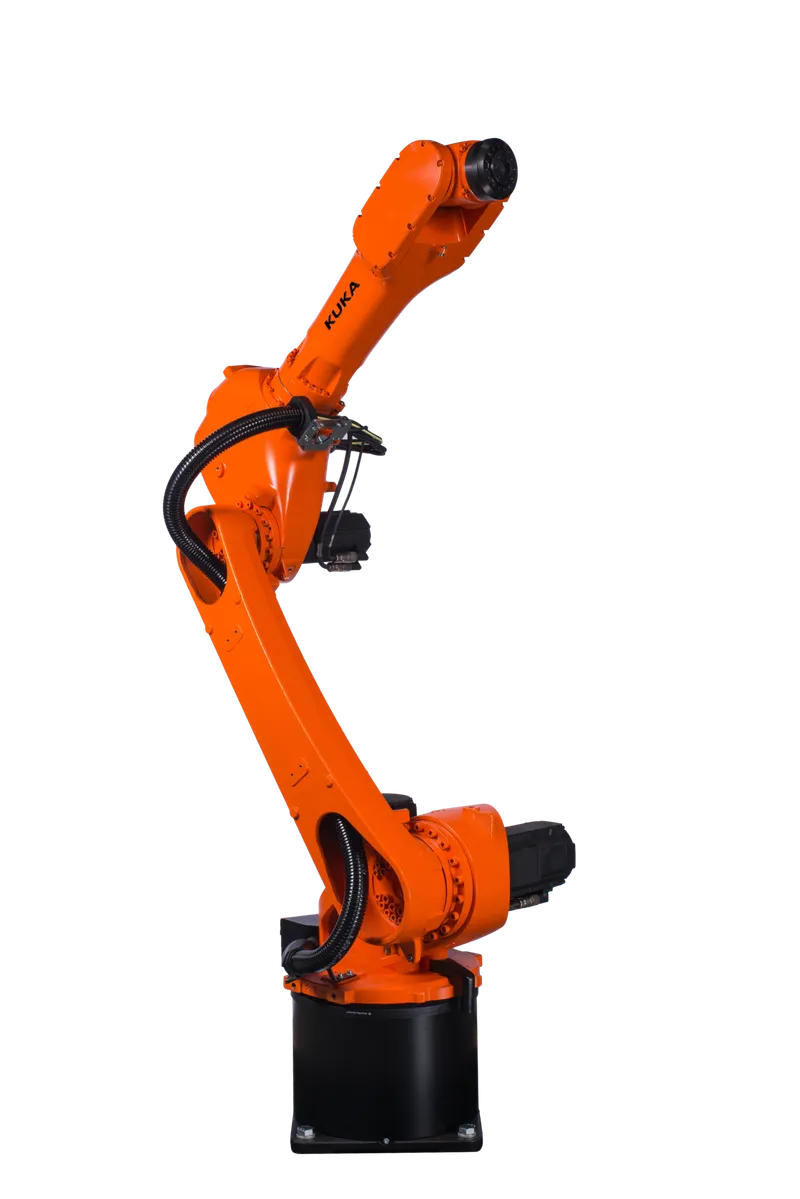

KR 20 R1820-2 E incl. KR C5

MPN: U810111531
Category: Low payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Kuka parts? We buy surplus →

What is the Kuka U810111531?

Kuka KR 20 R1820-2 E incl. KR C5, manufacturer part number U810111531. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	23.9 kg
Rated payload	20 kg
Maximum reach	1820 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.04 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP67
A1	195 °/s
A2	175 °/s
A3	180 °/s
A4	360 °/s
A5	360 °/s
A6	550 °/s
Depth	600 mm
Maximum number of servo axes	12
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
Rated connected load	2 kVA

U810111531: frequently asked questions

When can U810111531 be shipped?

U810111531 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U810111531 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U810111531 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U810111531, subject to availability and destination.
