Kuka U1427622
- MPN
- U1427622
- Category
- Medium payload class
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

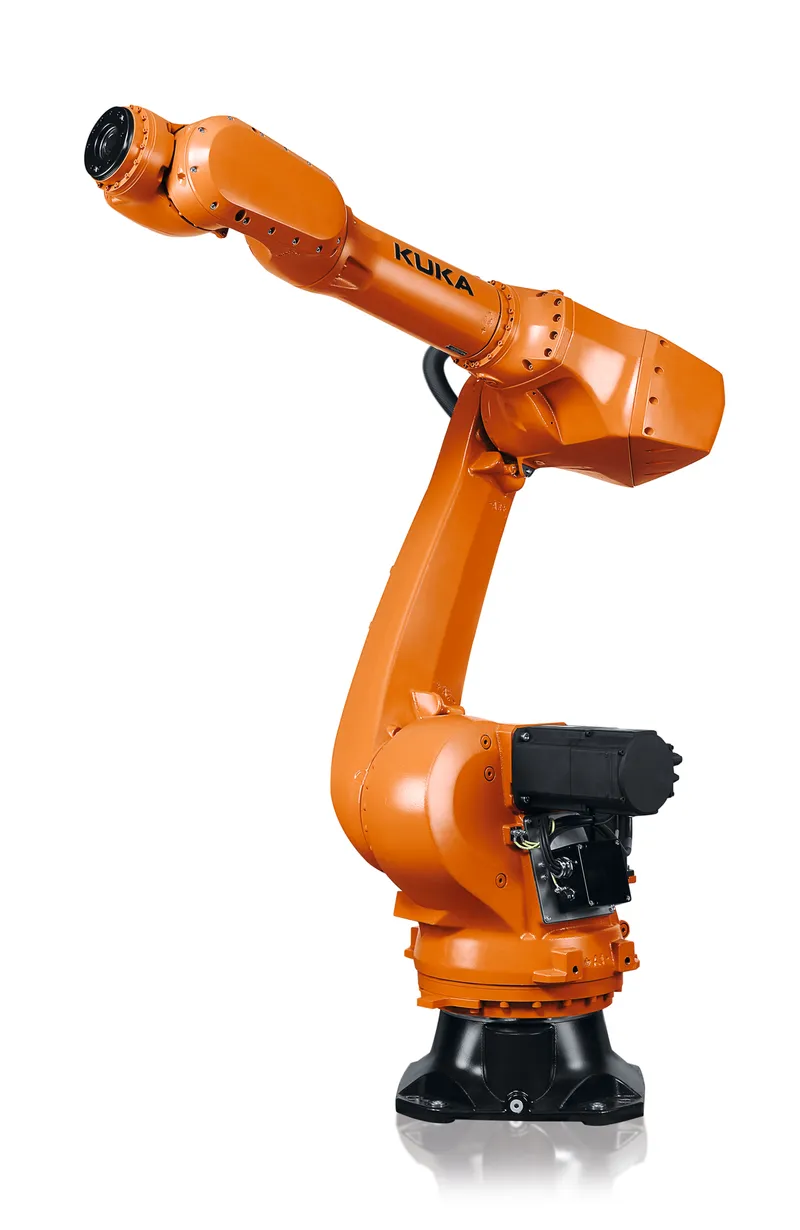

What is the Kuka U1427622?
Control cable (CTR): 25x 0.5 mm²
Specifications
Specifications
| Maximum payload | 85 kg |
| Rated payload | 70 kg |
| Maximum reach | 2101 mm |
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Pose repeatability (ISO 9283) | 0.05 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Prot. rating, in-line wrist (IEC 60529) | IP65 / IP67 |
| Cleanroom class (ISO 14644-1) | Class 4 at 80% override, Class 5 at 40% override |
| A1 | 180 °/s |
| A2 | 158 °/s |
| A3 | 160 °/s |
| A4 | 230 °/s |
| A5 | 230 °/s |
| A6 | 320 °/s |
U1427622: frequently asked questions
When can U1427622 be shipped?
U1427622 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U1427622 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U1427622 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U1427622, subject to availability and destination.
