Kuka

Kuka U1427595

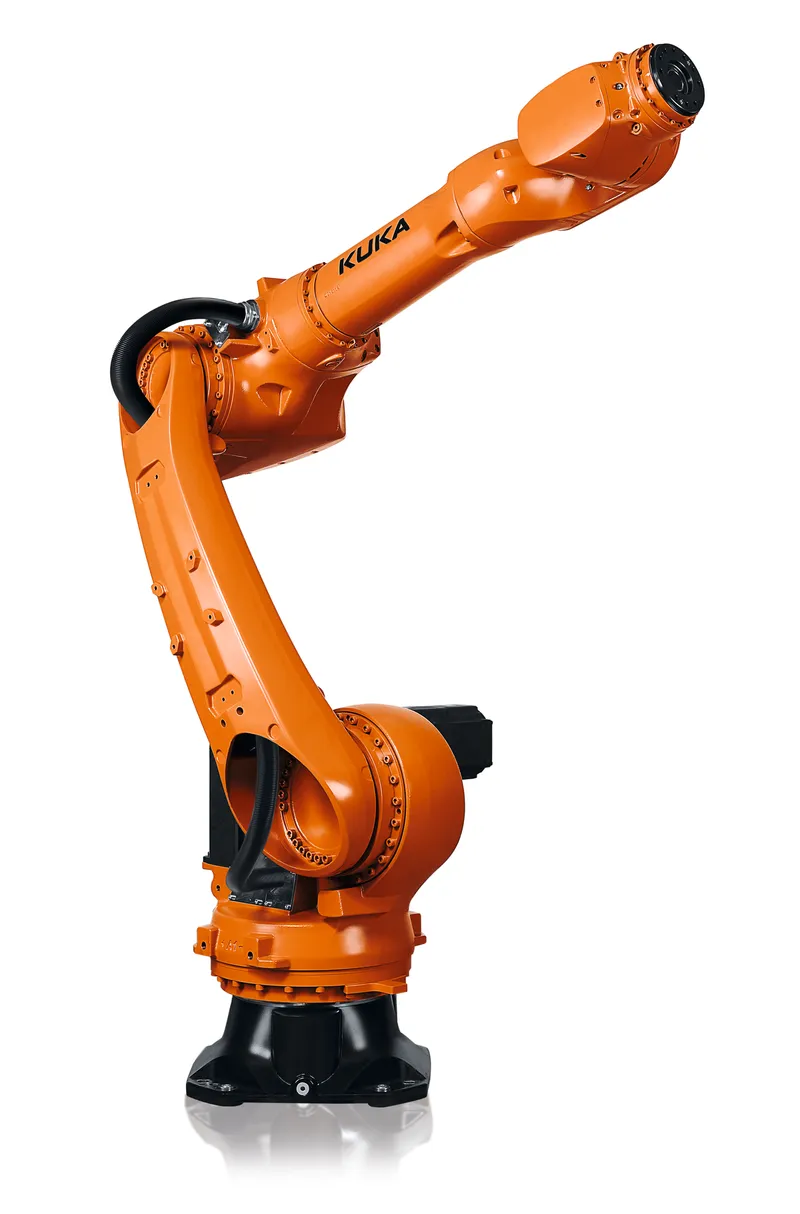

KR 70 R2100 incl. KR C5 dualcab

MPN: U1427595
Category: Medium payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U1427595?

All devices are powered by the 3-phase mains infeed in the cabinet. All required cables to the robots and additional kinematic systems as well as to other system control components are fed into the control cabinet through a flexible cable inlet system. The devices are protected according to protection class IP54.

Specifications

Maximum payload	85 kg
Rated payload	70 kg
Maximum reach	2101 mm
Mounting position	Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283)	0.05 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
Cleanroom class (ISO 14644-1)	Class 4 at 80% override, Class 5 at 40% override
A1	180 °/s
A2	158 °/s
A3	160 °/s
A4	230 °/s
A5	230 °/s
A6	320 °/s
Height	720
Depth	600 mm
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	50/60 Hz ±1 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
