Available on request

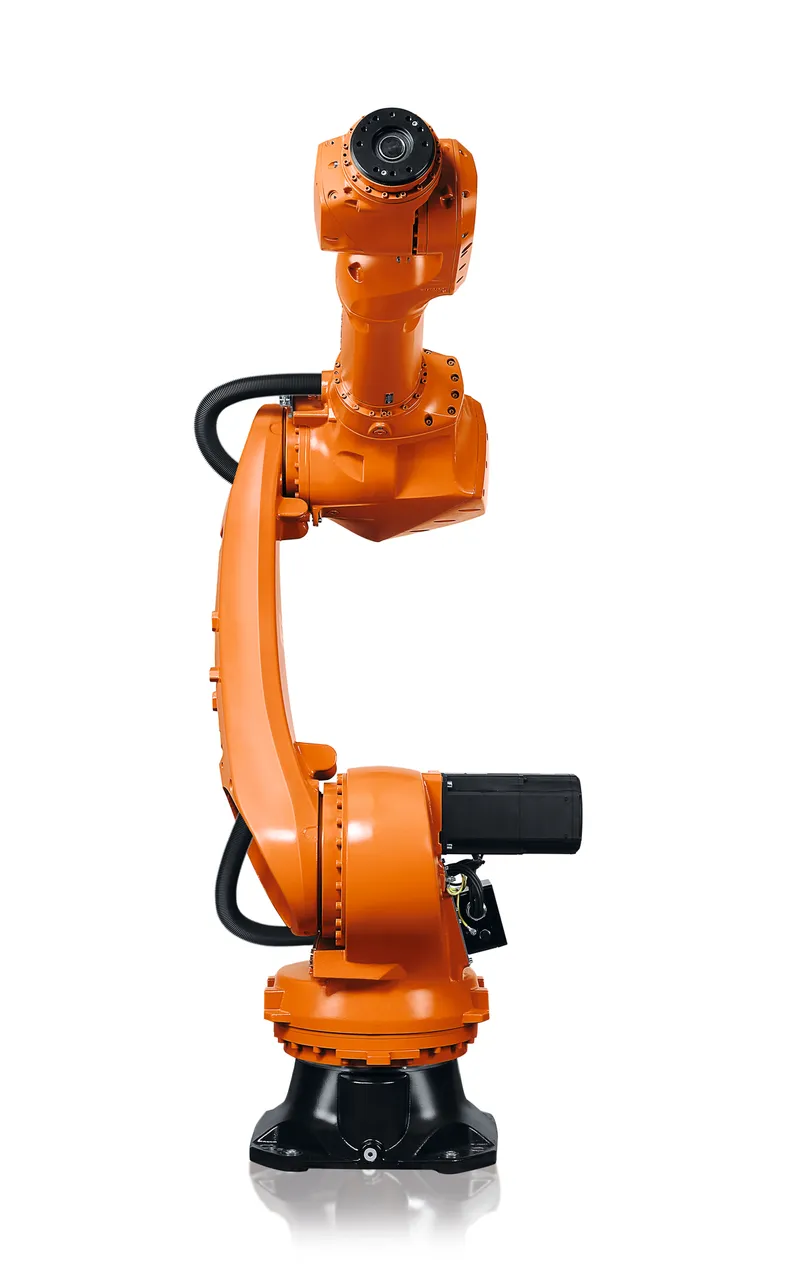

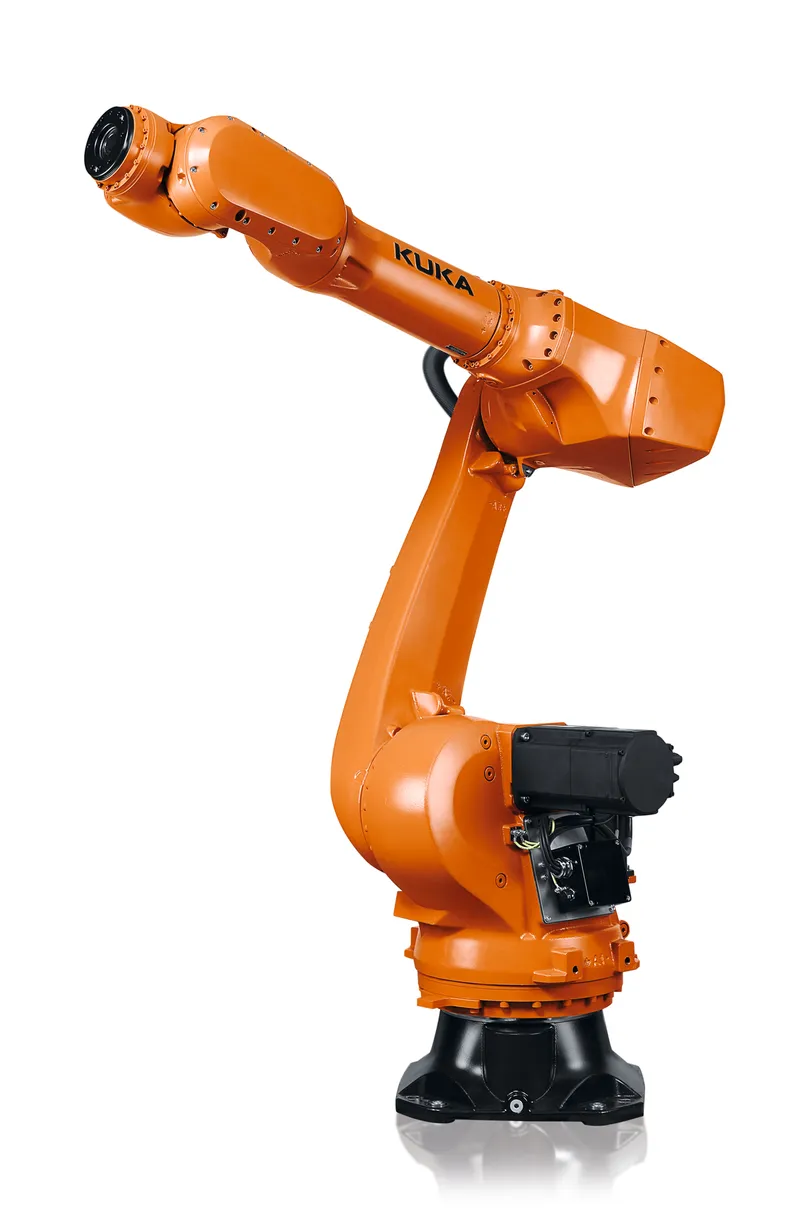

KR 70 R2100 incl. KR C5
MPN: U1427603 · Brand: Kuka
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Medium payload class |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0 kg |
Shipping & availability
When can U1427603 be shipped?
U1427603 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up U1427603 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for U1427603 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U1427603, subject to availability and destination.
Control cable (CTR): 25x 0.5 mm²
Specifications
Specifications
| Maximum payload | 85 kg |
| Rated payload | 70 kg |
| Maximum reach | 2101 mm |
| Mounting position | Floor, Ceiling, Wall, Desired angle |
| Pose repeatability (ISO 9283) | 0.05 mm |
| Number of axes | 6 |
| Ambient temperature during operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Protection rating (IEC 60529) | IP54 |
| Prot. rating, in-line wrist (IEC 60529) | IP65 / IP67 |
| Cleanroom class (ISO 14644-1) | Class 4 at 80% override, Class 5 at 40% override |
| A1 | 180 °/s |
| A2 | 158 °/s |
| A3 | 160 °/s |
| A4 | 230 °/s |
| A5 | 230 °/s |
| A6 | 320 °/s |
| Depth | 600 mm |
| Maximum number of servo axes | 12 |
| Rated supply voltage | AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V |
| Mains frequency | 49...61 Hz |
| Mains side fusing | min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate |
| Rated connected load | 2 kVA |
