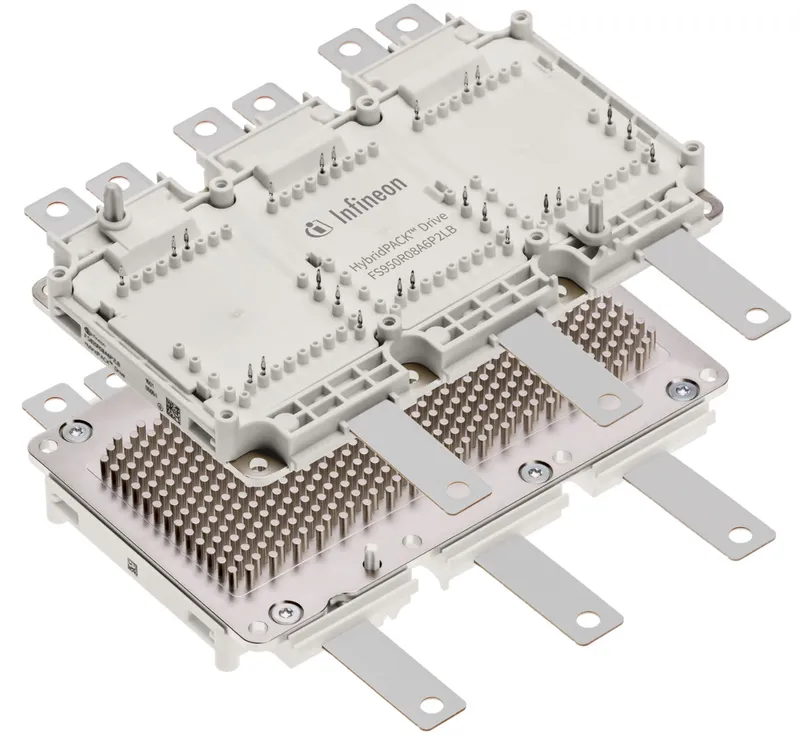

Infineon FS950R08A6P2LB – 750 V, 950 A sixpack automotive qualified IGBT module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IGBT Modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can FS950R08A6P2LB be shipped?
FS950R08A6P2LB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FS950R08A6P2LB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FS950R08A6P2LB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS950R08A6P2LB, subject to availability and destination.
Infineon FS950R08A6P2LB: 750 V, 950 A sixpack automotive qualified IGBT module in HybridPACK™ Drive housing (IGBT EDT2). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.
Specifications
Specifications
| Applications | Drives |
| Applications | CAV |
| Applications | eMobility |
| Applications | Hybrid Electric Vehicles |
| Configuration | Sixpack |
| Cooling Concept | PinFin baseplate |
| Dimensions (length) | 152 mm |
| Dimensions (width) | 92 mm |
| Features | Long Tabs |
| Housing | HybridPACK™ Drive |
| IC(nom) / IF(nom) | 950 A |
| IC max | 1900 A |
| Launch year | 2020 |
| Planned to be available until at least | 2034 |
| Qualification | Automotive |
| Technology | IGBT EDT2 |
| VCE(sat) (Tvj=25°C typ) | 1.1 V |
| VCES (Tvj=25°C typ) | 750 V |
| Voltage Class max | 750 V |
Ordering codes (OPN)
| FS950R08A6P2LBBPSA1 | active and preferred, package AG-HDG1-7511, RoHS |
Downloads & documentation
Official documents from Infineon, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet FS950R08A6P2LB |
