Infineon FZ1000R45KL3-B5

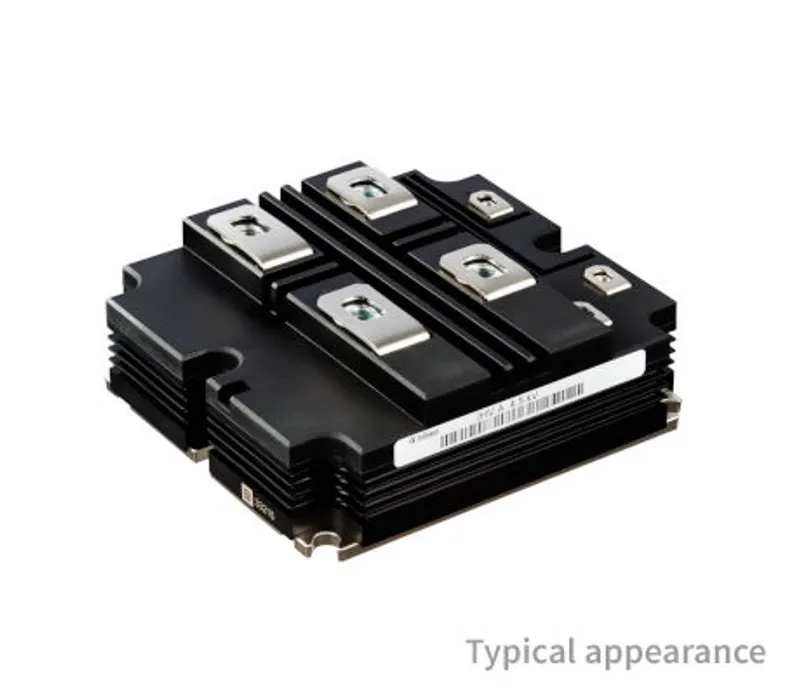

4500 V, 1000 A single switch IGBT module

MPN: FZ1000R45KL3-B5
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FZ1000R45KL3-B5?

Infineon FZ1000R45KL3-B5: 4500 V, 1000 A single switch IGBT module in IHV housing (IGBT3 - L3). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Single switch
Dimensions (width)	140 mm
Dimensions (length)	130 mm
Features	10.4 kV isolation
Housing	IHV
IC(nom) / IF(nom)	1000 A
IC max	1000 A
Qualification	Traction
Qualification	Industrial
Technology	IGBT3 - L3
VCE(sat) (Tvj=25°C typ)	2.5 V
VCES / VRRM	4500 V
VF (Tvj=25°C typ)	2.5 V
Voltage Class max	4500 V

Ordering codes (OPN)

FZ1000R45KL3B5NPSA1

active and preferred, package A-IHV130

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FZ1000R45KL3-B5PDF

FZ1000R45KL3-B5: frequently asked questions

When can FZ1000R45KL3-B5 be shipped?

FZ1000R45KL3-B5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FZ1000R45KL3-B5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FZ1000R45KL3-B5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FZ1000R45KL3-B5, subject to availability and destination.
