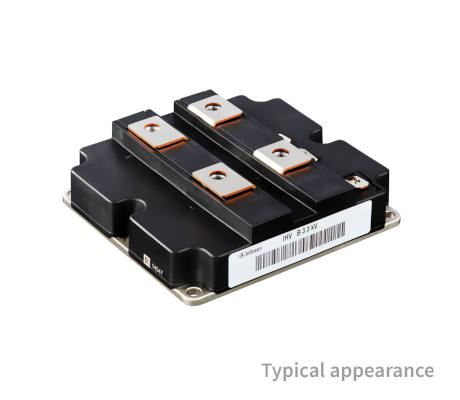

Infineon FZ1000R33HE3 – 3300 V, 1000 A single switch IGBT module

Name: Infineon FZ1000R33HE3 – 3300 V, 1000 A single switch IGBT module
Brand: Infineon
SKU: FZ1000R33HE3

MPN: FZ1000R33HE3 · Brand: Infineon

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IGBT Modules
Lifecycle	Not for new design
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can FZ1000R33HE3 be shipped?

FZ1000R33HE3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FZ1000R33HE3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FZ1000R33HE3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FZ1000R33HE3, subject to availability and destination.

Infineon FZ1000R33HE3: 3300 V, 1000 A single switch IGBT module in IHV B housing (IGBT3 - E3). Infineon status: not for new design — still supplied, but not recommended for new designs. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Configuration	Single switch
Dimensions (length)	130 mm
Dimensions (width)	140 mm
Housing	IHV B
IC(nom) / IF(nom)	1000 A
IC max	1000 A
Qualification	Industrial
Qualification	Traction
Technology	IGBT3 - E3
VCE(sat) (Tvj=25°C typ)	2.55 V
VCES / VRRM	3300 V
VF (Tvj=25°C typ)	3.1 V
Voltage Class max	3300 V
