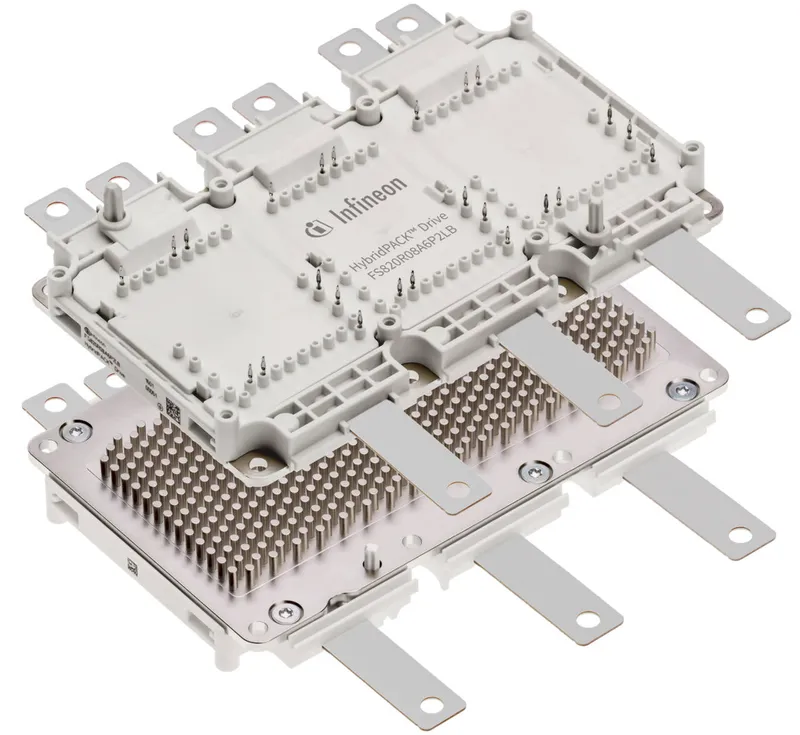

Infineon FS820R08A6P2LB – 750 V, 820 A sixpack automotive qualified IGBT module

Name: Infineon FS820R08A6P2LB – 750 V, 820 A sixpack automotive qualified IGBT module
Brand: Infineon
SKU: FS820R08A6P2LB

MPN: FS820R08A6P2LB · Brand: Infineon

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IGBT Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can FS820R08A6P2LB be shipped?

FS820R08A6P2LB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FS820R08A6P2LB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FS820R08A6P2LB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS820R08A6P2LB, subject to availability and destination.

Infineon FS820R08A6P2LB: 750 V, 820 A sixpack automotive qualified IGBT module in HybridPACK™ Drive housing (IGBT EDT2). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Applications	CAV
Applications	eMobility
Applications	Hybrid Electric Vehicles
Applications	Drives
Configuration	Sixpack
Cooling Concept	PinFin baseplate
Dimensions (width)	100.5 mm
Dimensions (length)	154.5 mm
Features	PinFin Baseplate, Long Tabs
Housing	HybridPACK™ Drive
IC(nom) / IF(nom)	820 A
IC max	820 A
Launch year	2017
Planned to be available until at least	2038
Qualification	Automotive
Rated Current	820 A
Technology	IGBT EDT2
VCE(sat) (Tvj=25°C typ)	1.1 V
VCES (Tvj=25°C typ)	750 V
VF (Tvj=25°C typ)	1.45 V
Voltage Class max	750 V
