Infineon FS820R08A6P2

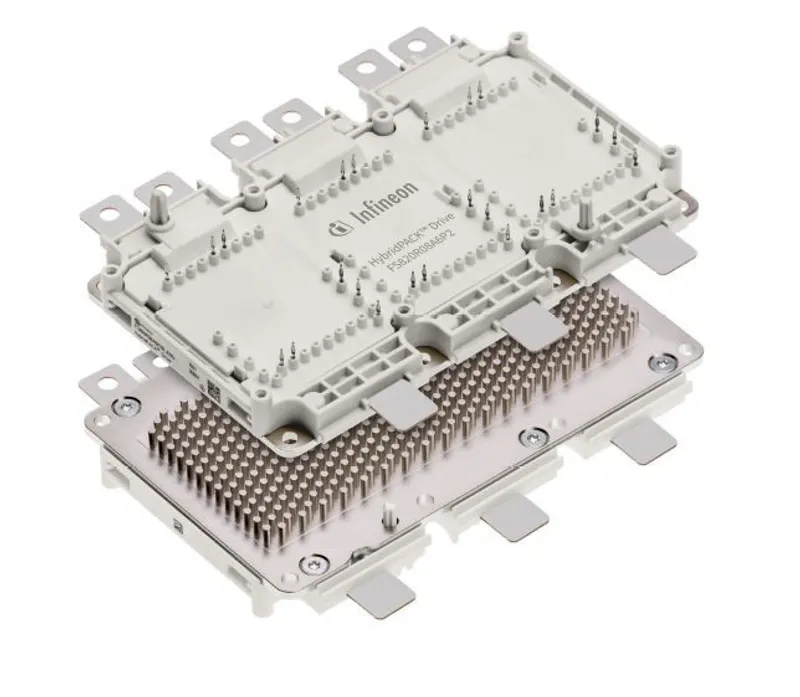

750 V, 820 A sixpack automotive qualified IGBT module

MPN: FS820R08A6P2
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Discontinued by Infineon — we can still source the original FS820R08A6P2 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FS820R08A6P2?

Infineon FS820R08A6P2: 750 V, 820 A sixpack automotive qualified IGBT module in HybridPACK™ Drive housing (IGBT EDT2). Discontinued by Infineon. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Applications	CAV
Applications	eMobility
Applications	Hybrid Electric Vehicles
Applications	Drives
Configuration	Sixpack
Cooling Concept	PinFin baseplate
Dimensions (length)	152 mm
Dimensions (width)	92 mm
Features	PinFin Baseplate, Short Tabs
Housing	HybridPACK™ Drive
IC(nom) / IF(nom)	820 A
IC max	1640 A
Qualification	Automotive
Technology	IGBT EDT2
VCE(sat) (Tvj=25°C typ)	1.1 V
VCES (Tvj=25°C typ)	750 V
VF (Tvj=25°C typ)	1.45 V
Voltage Class max	750 V

Ordering codes (OPN)

FS820R08A6P2BPSA1

discontinued, package AG-HDG1-7511, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FS820R08A6P2PDF

FS820R08A6P2: frequently asked questions

Can I still buy the FS820R08A6P2 now that it is discontinued?

Yes. Infineon has discontinued the FS820R08A6P2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FS820R08A6P2 be shipped?

FS820R08A6P2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FS820R08A6P2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FS820R08A6P2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS820R08A6P2, subject to availability and destination.
