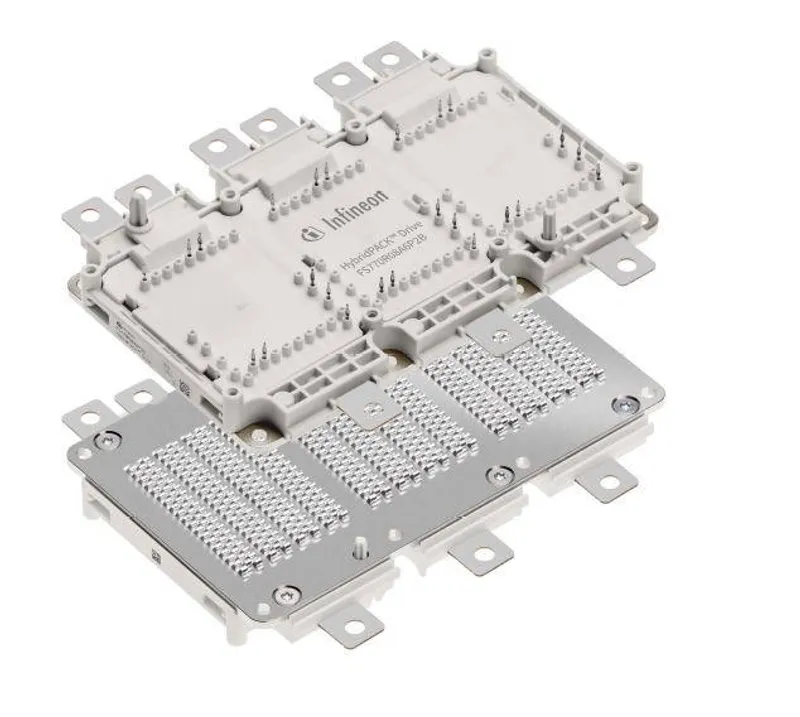

Infineon FS770R08A6P2B

750 V, 770 A sixpack automotive qualified IGBT module

MPN: FS770R08A6P2B
Category: IGBT Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon FS770R08A6P2B?

Infineon FS770R08A6P2B: 750 V, 770 A sixpack automotive qualified IGBT module in HybridPACK™ Drive housing (IGBT EDT2). Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

Applications	CAV
Applications	eMobility
Applications	Hybrid Electric Vehicles
Applications	Drives
Configuration	Sixpack
Cooling Concept	Wave baseplate
Dimensions (length)	152 mm
Dimensions (width)	92 mm
Features	Wave Baseplate, Short Tabs
Housing	HybridPACK™ Drive
IC(nom) / IF(nom)	770 A
IC max	1540 A
Launch year	2019
Planned to be available until at least	2034
Qualification	Automotive
Technology	IGBT EDT2
VCE(sat) (Tvj=25°C typ)	1.1 V
VCES (Tvj=25°C typ)	750 V
VF (Tvj=25°C typ)	1.45 V
Voltage Class max	750 V

Ordering codes (OPN)

FS770R08A6P2BBPSA1

active and preferred, package AG-HDG1RB-7511, RoHS

Downloads & documentation

Official documents from Infineon, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet FS770R08A6P2BPDF

FS770R08A6P2B: frequently asked questions

When can FS770R08A6P2B be shipped?

FS770R08A6P2B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FS770R08A6P2B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FS770R08A6P2B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FS770R08A6P2B, subject to availability and destination.
