Danfoss 87391-20-16Z

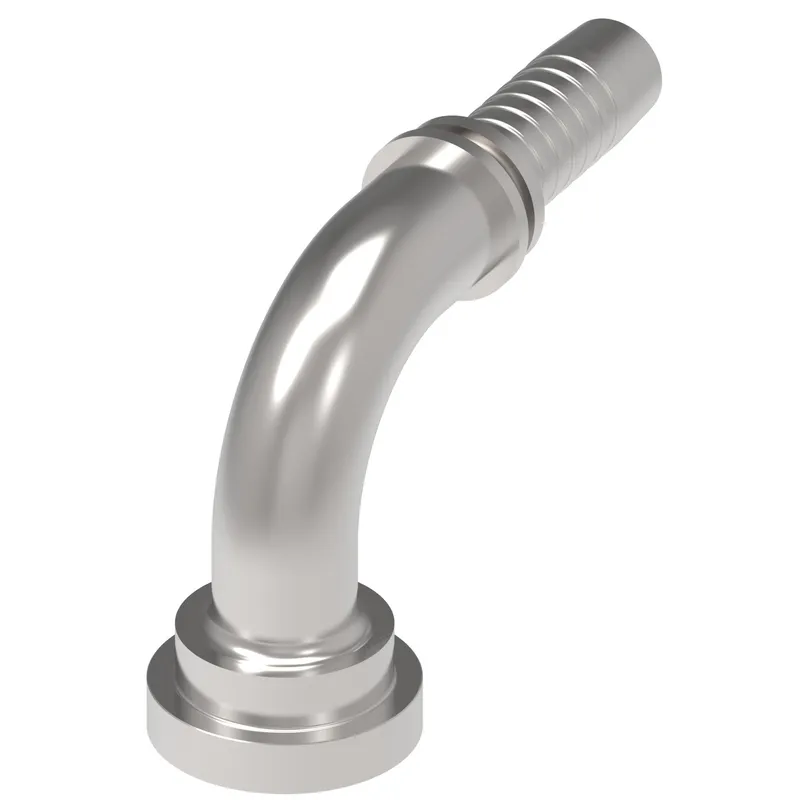

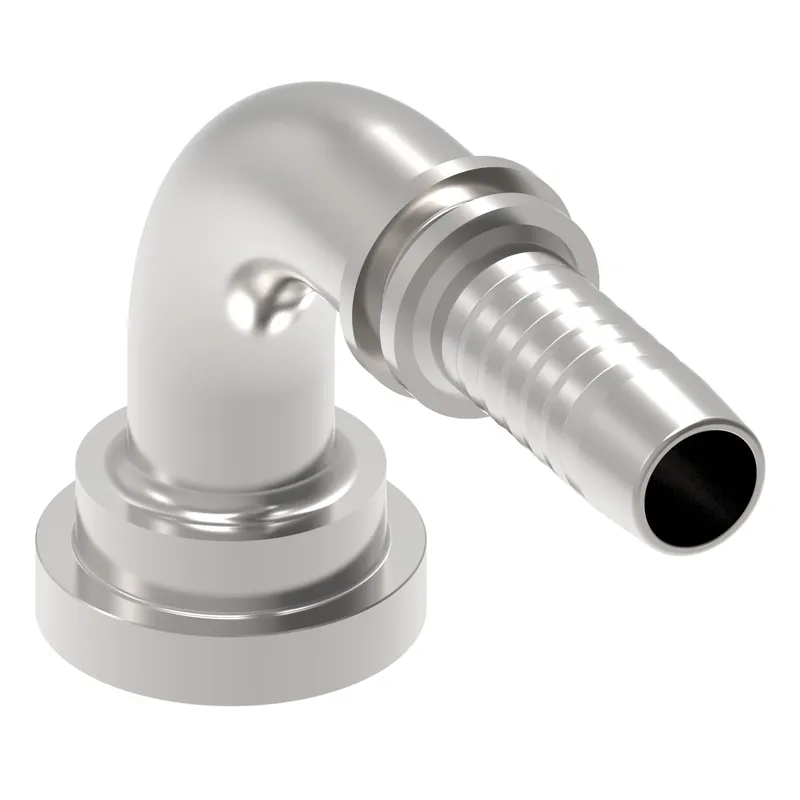

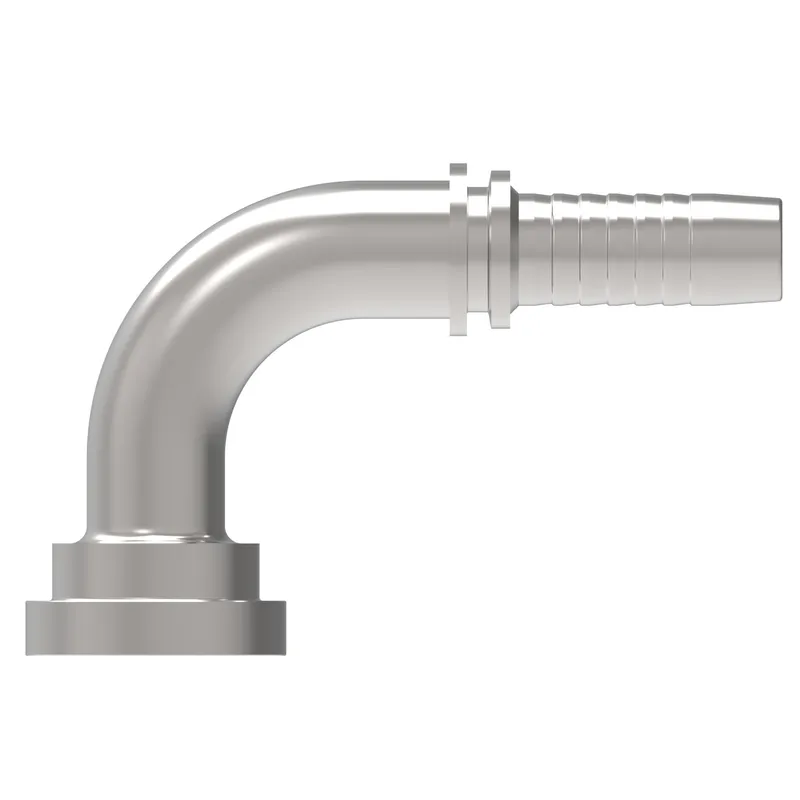

HOSE NIPPLE ASSY, 2P/16, C61/20, CS, 90D

MPN
87391-20-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87391-20-16Z?

Danfoss HOSE NIPPLE ASSY, 2P/16, C61/20, CS, 90D, manufacturer part number 87391-20-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.870
A dimension MM123.700
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
Drop dimension IN2.657
Drop dimension MM67.50
End size 1-20
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN3.019
Hose cut off factor MM76.700
Hose size-16
Inside diameter IN0.826
Inside diameter MM21.000
Product height in3.240
Product height mm82.296
Product length in5.870
Product length mm149.098
Product materialCarbon steel
Product width in2.000
Product width mm50.8
Thread sealantNo
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87391-20-16Z: frequently asked questions

When can 87391-20-16Z be shipped?

87391-20-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391-20-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391-20-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-20-16Z, subject to availability and destination.
