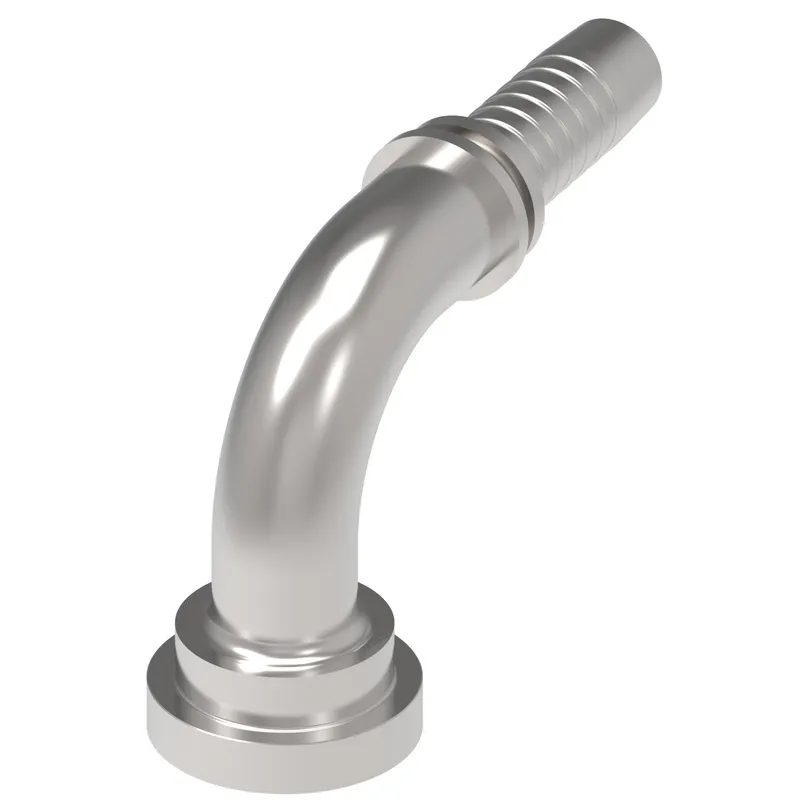

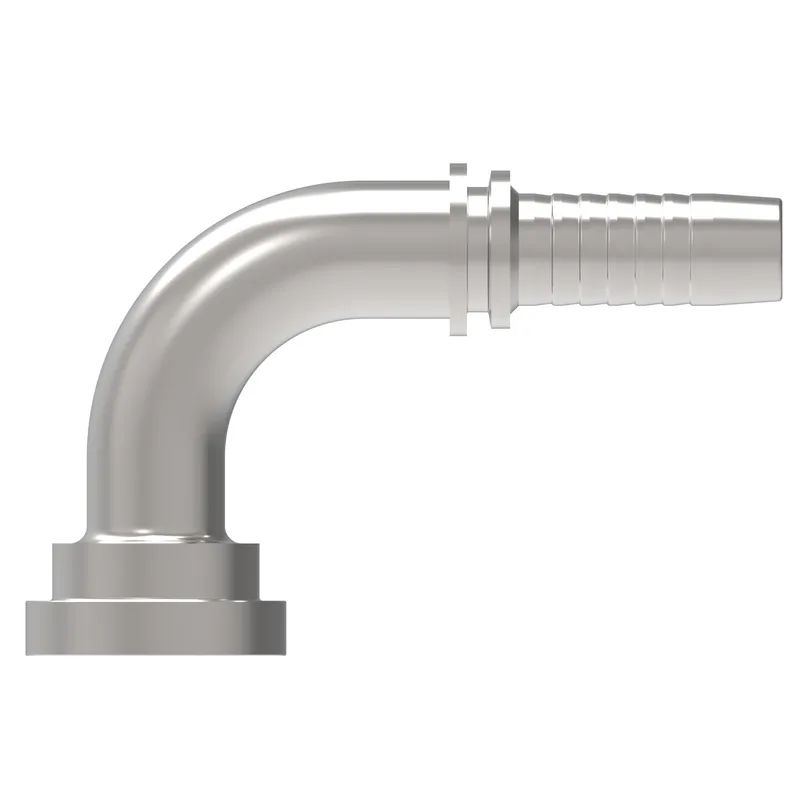

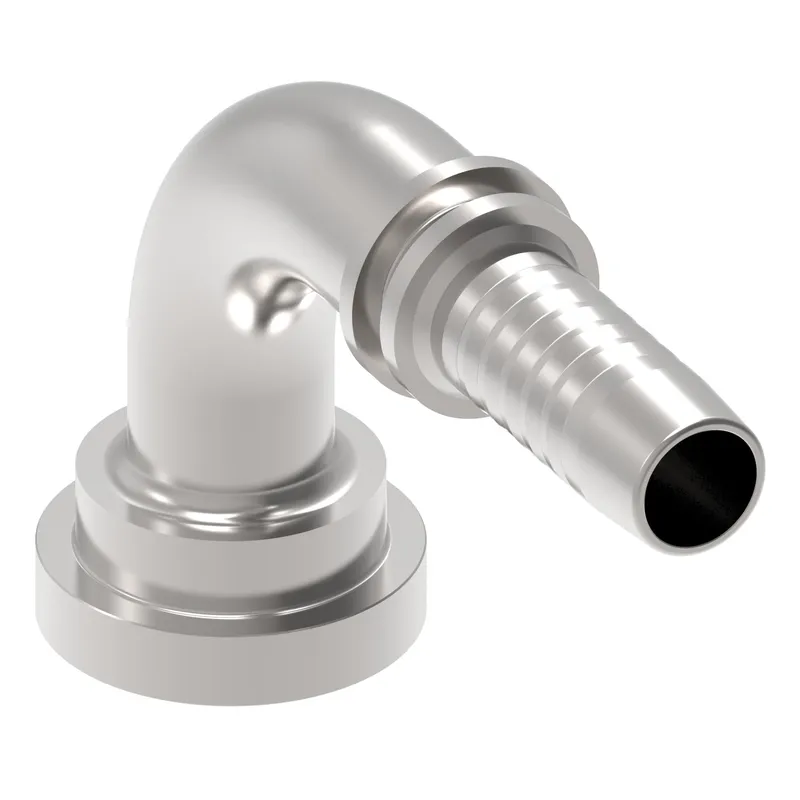

Danfoss 87391-16-16SR

HOSE NIPPLE ASSY, 2P/16, C61/16, AN, 90D

MPN
87391-16-16SR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87391-16-16SR?

Danfoss HOSE NIPPLE ASSY, 2P/16, C61/16, AN, 90D, manufacturer part number 87391-16-16SR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.870
A dimension MM123.700
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN2.657
Drop dimension MM67.50
End size 1-16
End size 2-16
End Type 1Split flange code 61
End Type 2Line/hose/tube
Hose cut off factor IN3.019
Hose cut off factor MM76.700
Hose size-16
Inside diameter IN0.826
Inside diameter MM21.000
Product height in3.248
Product height mm82.499
Product length in5.744
Product length mm145.900
Product material304 Stainless steel
Product width in1.748
Product width mm44.399
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87391-16-16SR: frequently asked questions

When can 87391-16-16SR be shipped?

87391-16-16SR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391-16-16SR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391-16-16SR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-16-16SR, subject to availability and destination.
