Danfoss 87391-20-24Z

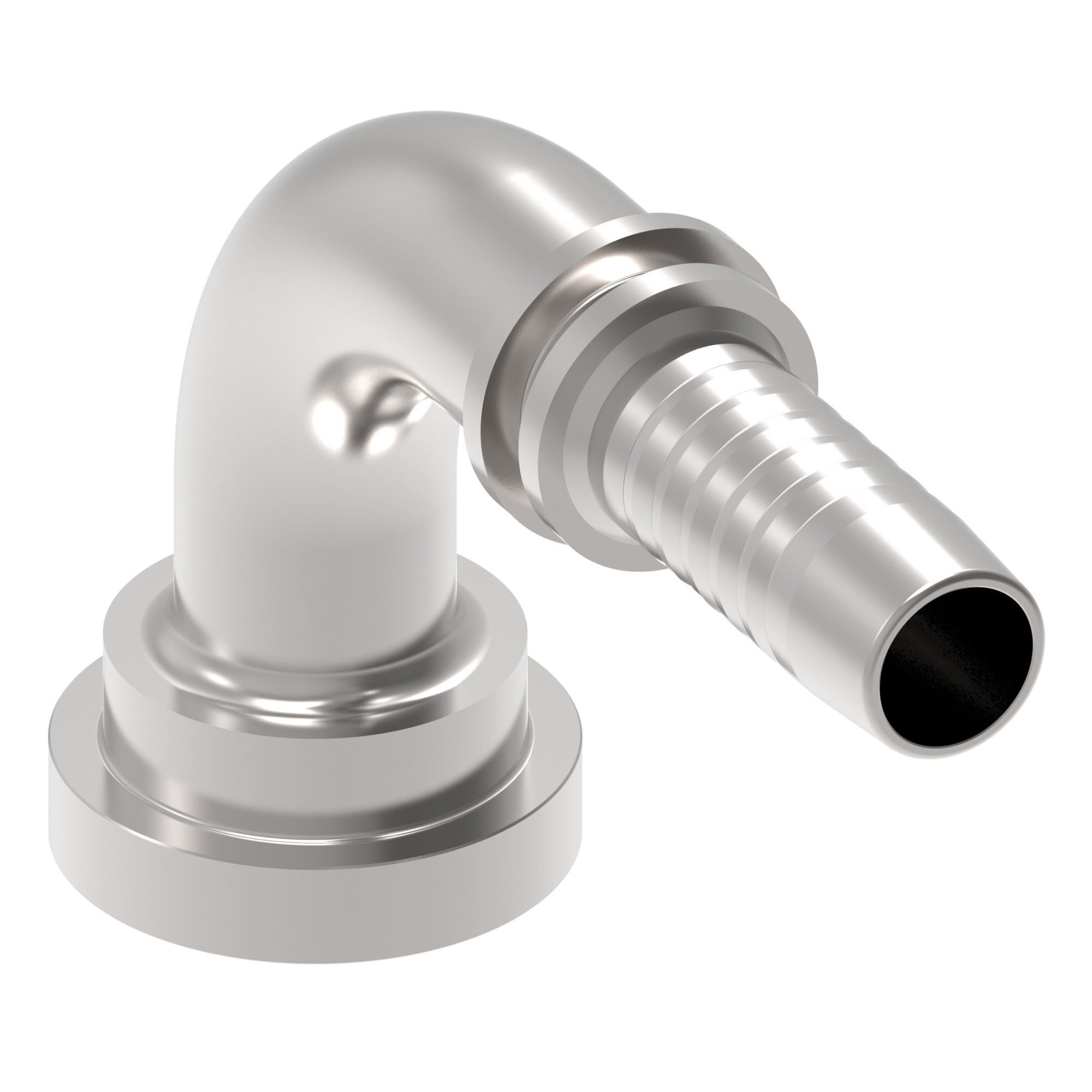

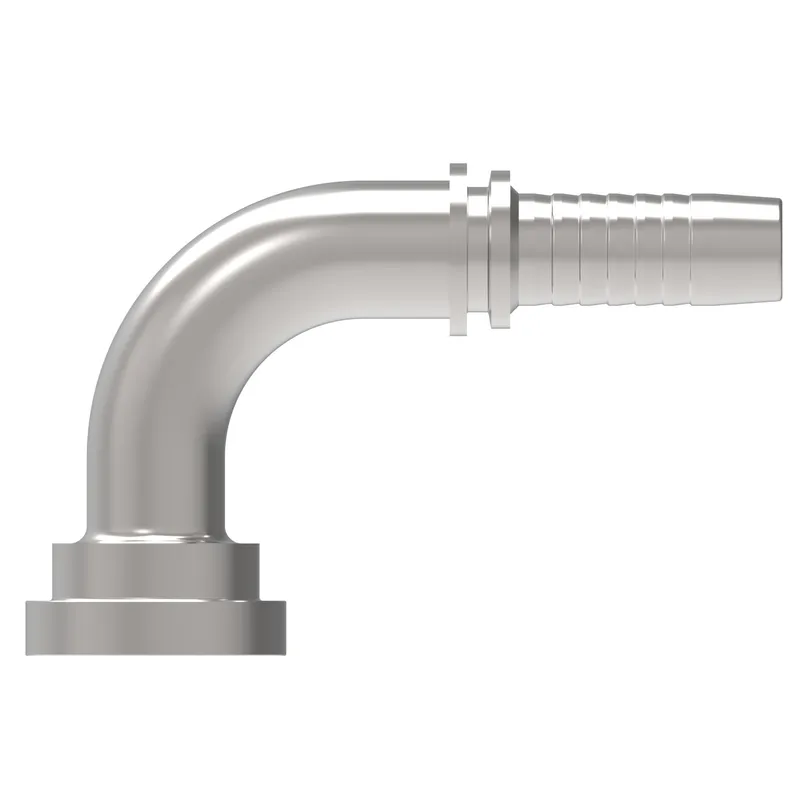

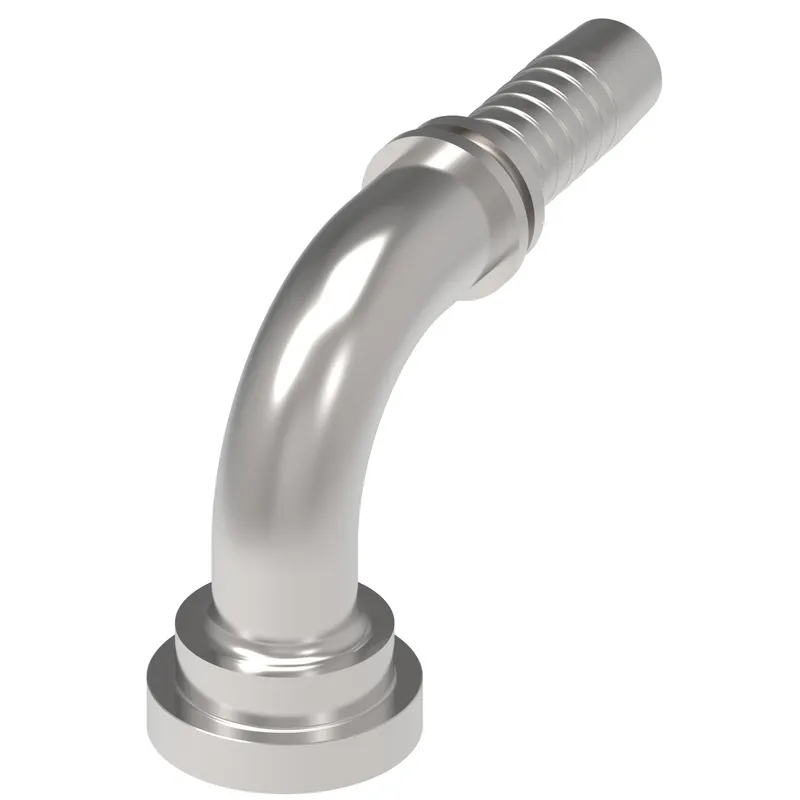

HOSE NIPPLE ASSY, 2P/24, C61/20, CS, 90D

MPN
87391-20-24Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87391-20-24Z?

Danfoss HOSE NIPPLE ASSY, 2P/24, C61/20, CS, 90D, manufacturer part number 87391-20-24Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN6.889
A dimension MM175.000
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.500
Construction StyleCrimp
Drop dimension IN3.090
Drop dimension MM78.50
End size 1-20
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN4.212
Hose cut off factor MM107.000
Inside diameter IN1.181
Inside diameter MM30.000
Product height in3.947
Product height mm100.251
Product length in7.890
Product length mm200.401
Product materialCarbon steel
Product width in2.000
Product width mm50.8
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87391-20-24Z: frequently asked questions

When can 87391-20-24Z be shipped?

87391-20-24Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391-20-24Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391-20-24Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-20-24Z, subject to availability and destination.
