Danfoss 87391-20-20SR

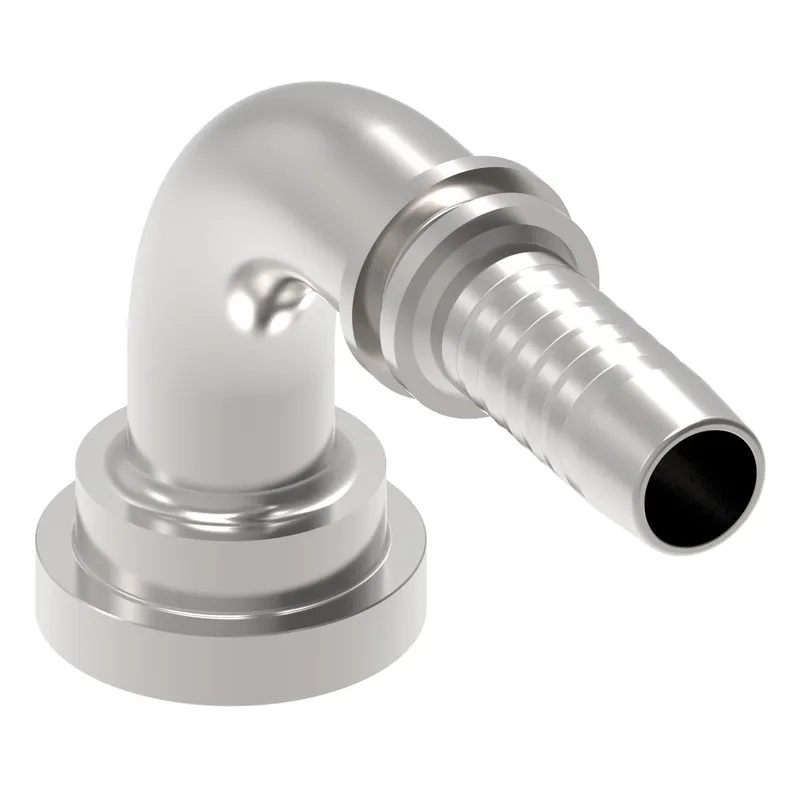

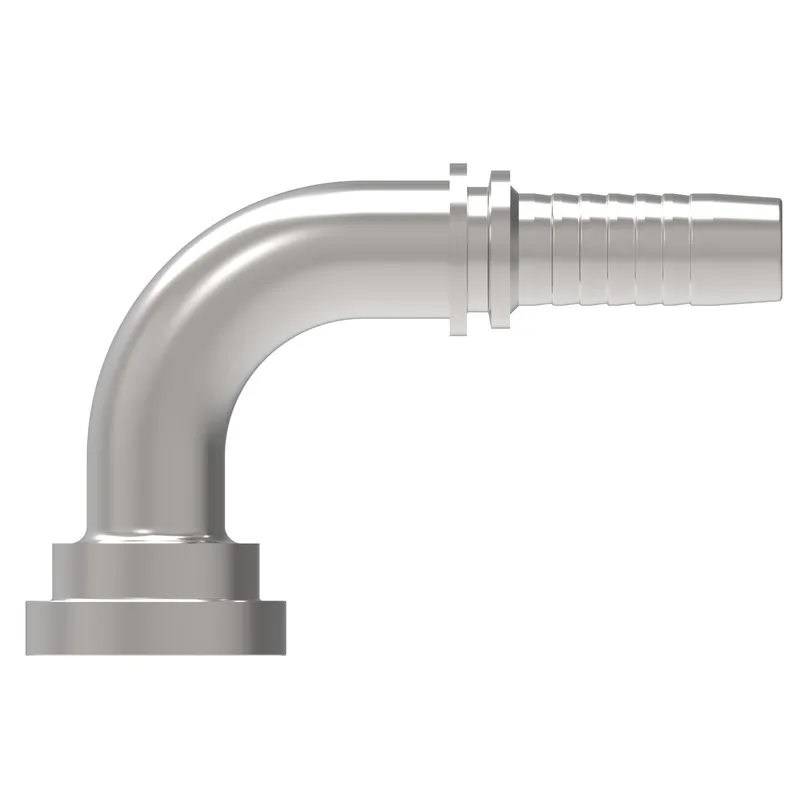

HOSE NIPPLE ASSY, 2P/20, C61/20, AN, 90D

MPN
87391-20-20SR
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87391-20-20SR?

Danfoss HOSE NIPPLE ASSY, 2P/20, C61/20, AN, 90D, manufacturer part number 87391-20-20SR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.728
A dimension MM145.500
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Construction StyleCrimp
Drop dimension IN3.090
Drop dimension MM78.50
End size 1-20
End Type 1Split flange code 61
Hose cut off factor IN3.602
Hose cut off factor MM91.500
Hose size-20
Inside diameter IN1.062
Inside diameter MM27.000
Product height in3.091
Product height mm78.501
Product length in6.728
Product length mm170.901
Product material304 Stainless steel
Product width in2.000
Product width mm50.8
Thread sealantNo
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87391-20-20SR: frequently asked questions

When can 87391-20-20SR be shipped?

87391-20-20SR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391-20-20SR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391-20-20SR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-20-20SR, subject to availability and destination.
