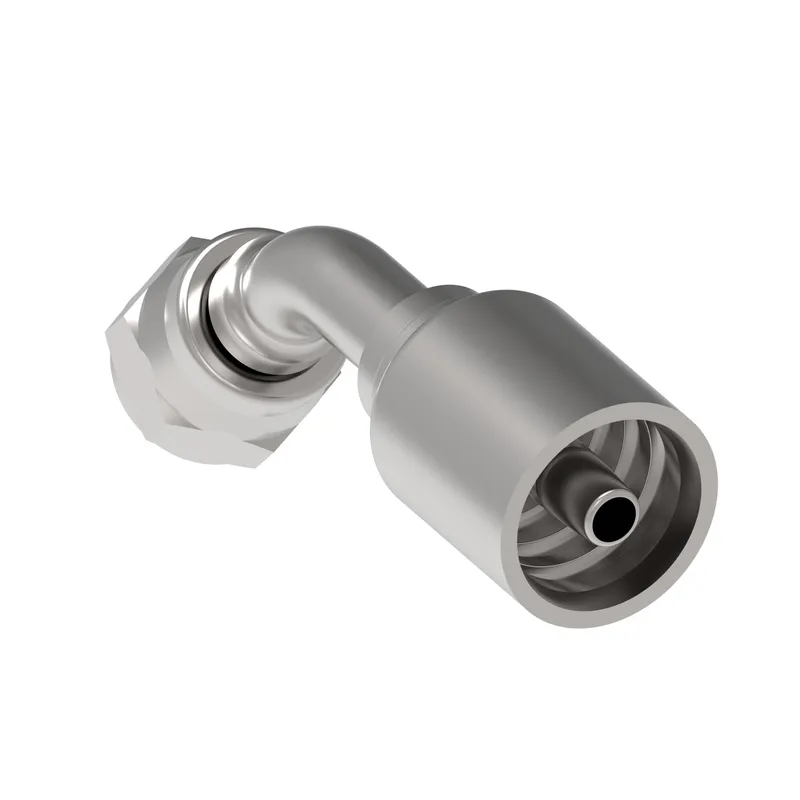

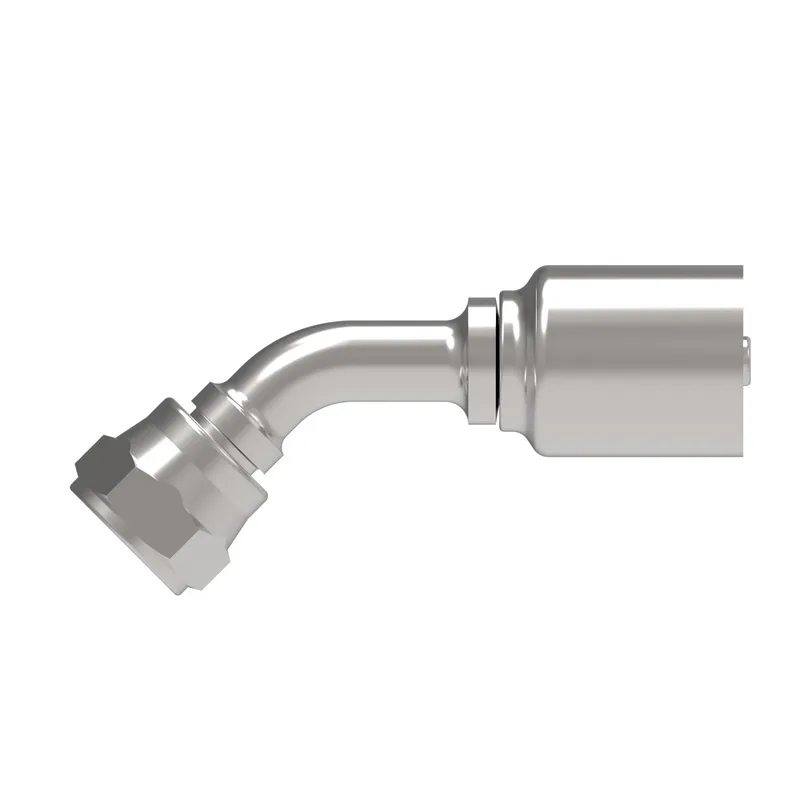

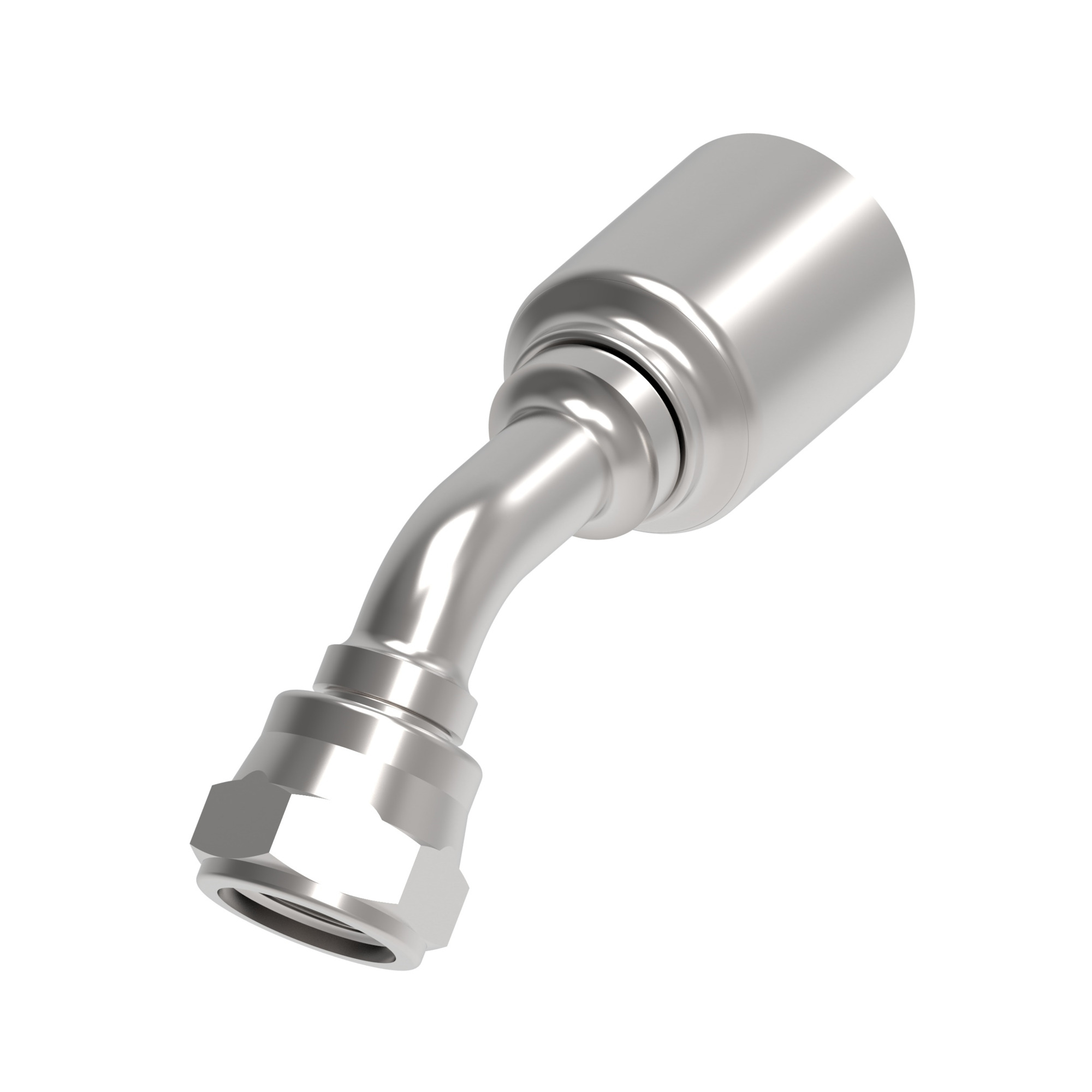

Danfoss 4T8BFA6

HOSE FTG, 4T/06, BF/08, CS, 45D

MPN: 4T8BFA6
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T8BFA6?

Danfoss HOSE FTG, 4T/06, BF/08, CS, 45D, manufacturer part number 4T8BFA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.330
A dimension MM	84.700
Angle shape	45 Degree
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.652
Construction Style	Crimp
Drop dimension IN	0.930
Drop dimension MM	23.50
End size 1	-8
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	2.340
Hose cut off factor MM	59.400
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.940
Product height mm	49.276
Product length in	3.870
Product length mm	98.298
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924 mm
Thread sealant	No
Thread size 1	G 1/2
Working pressure max BAR	330
Working pressure max PSI	4800
