Danfoss 4T8BF8

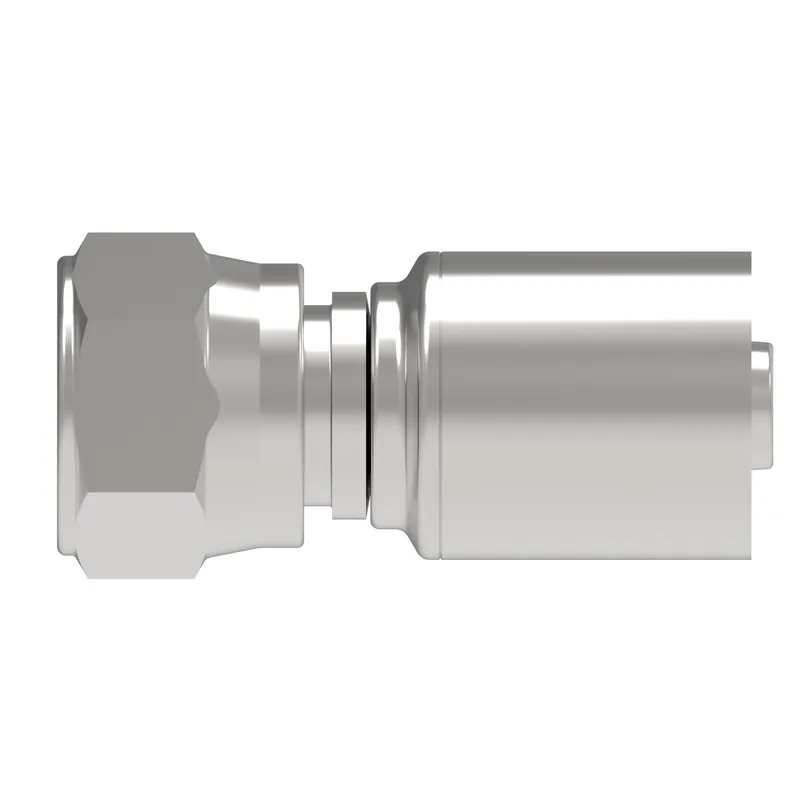

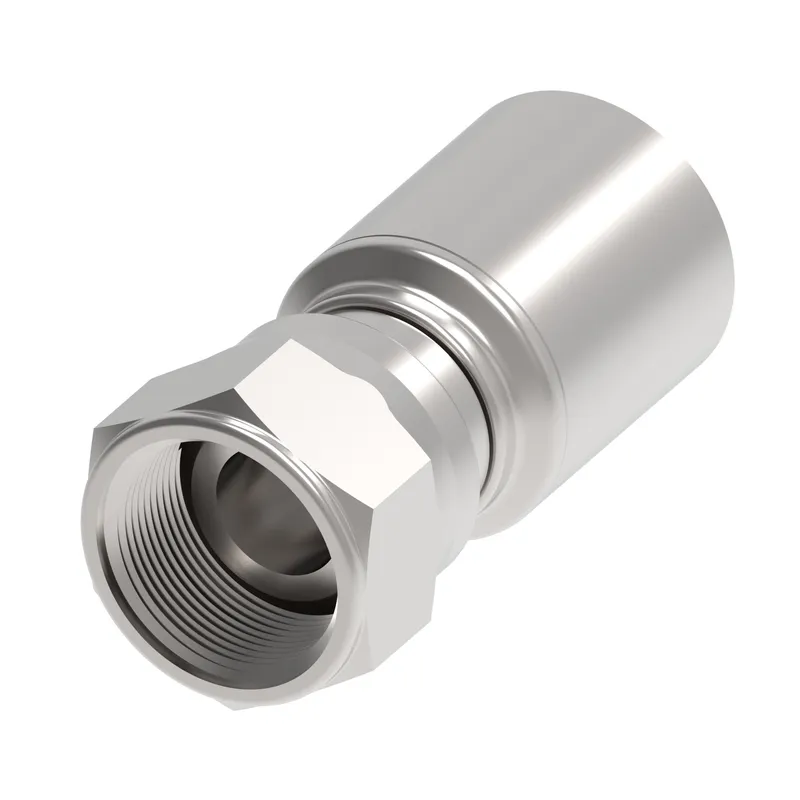

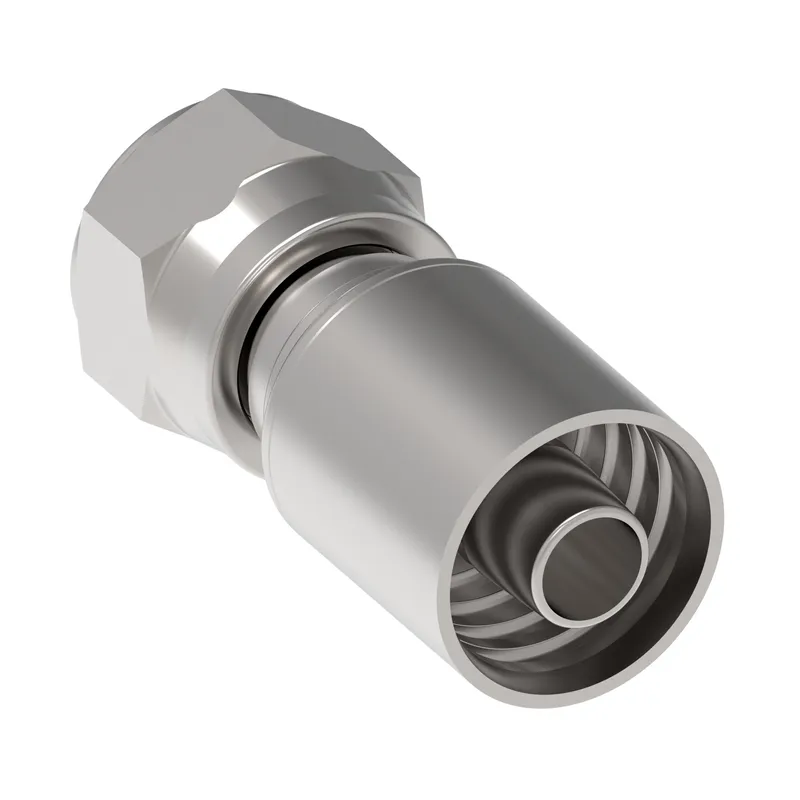

HOSE FTG, 4T/08, BF/08, CS, STR

MPN: 4T8BF8
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T8BF8?

Danfoss HOSE FTG, 4T/08, BF/08, CS, STR, manufacturer part number 4T8BF8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789255488
A dimension IN	2.350
A dimension MM	59.600
Angle shape	Straight
Application	Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-8
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	0.940
Hose cut off factor MM	23.800
Hose size	-8
Inside diameter IN	0.3800
Inside diameter MM	9.6000
Product height in	1.063
Product height mm	27.000
Product length in	2.165
Product length mm	55.000
Product material	Carbon steel
Product width in	1.063
Product width mm	27.000 mm
Thread sealant	No
Thread size 1	G 1/2
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
