Danfoss 4T8BF6

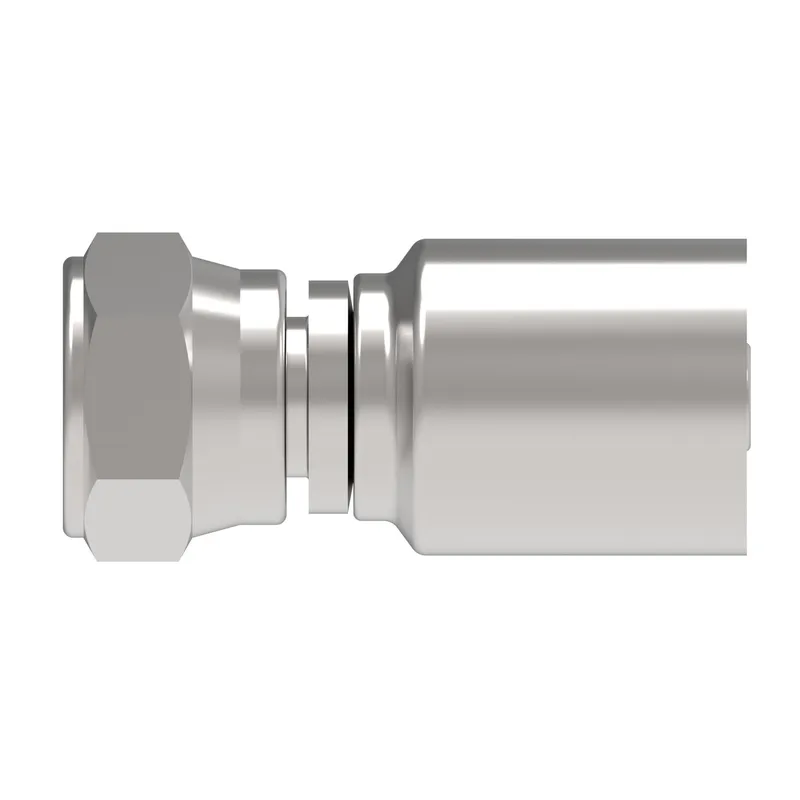

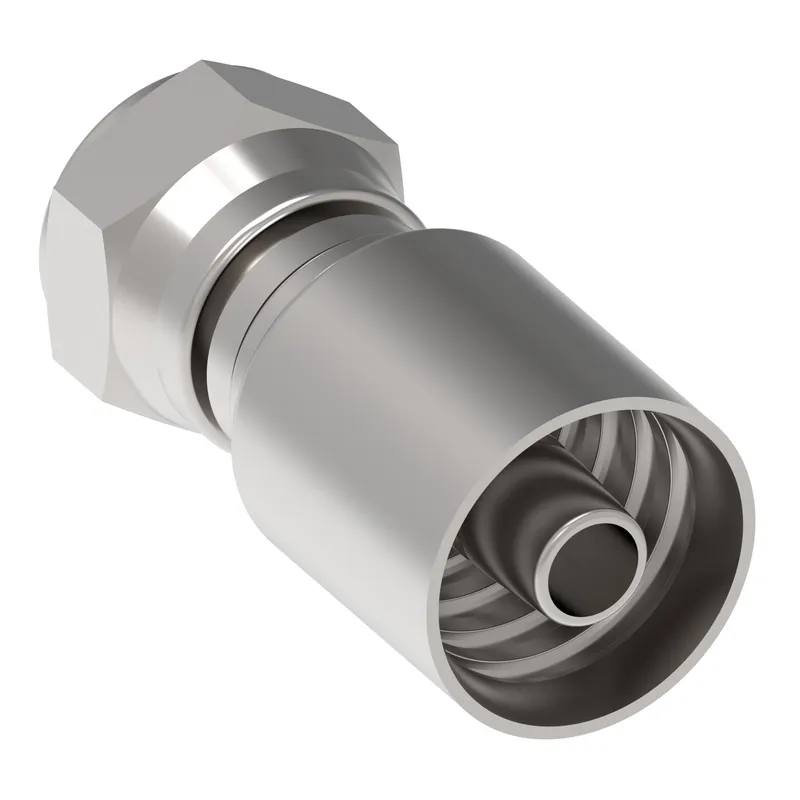

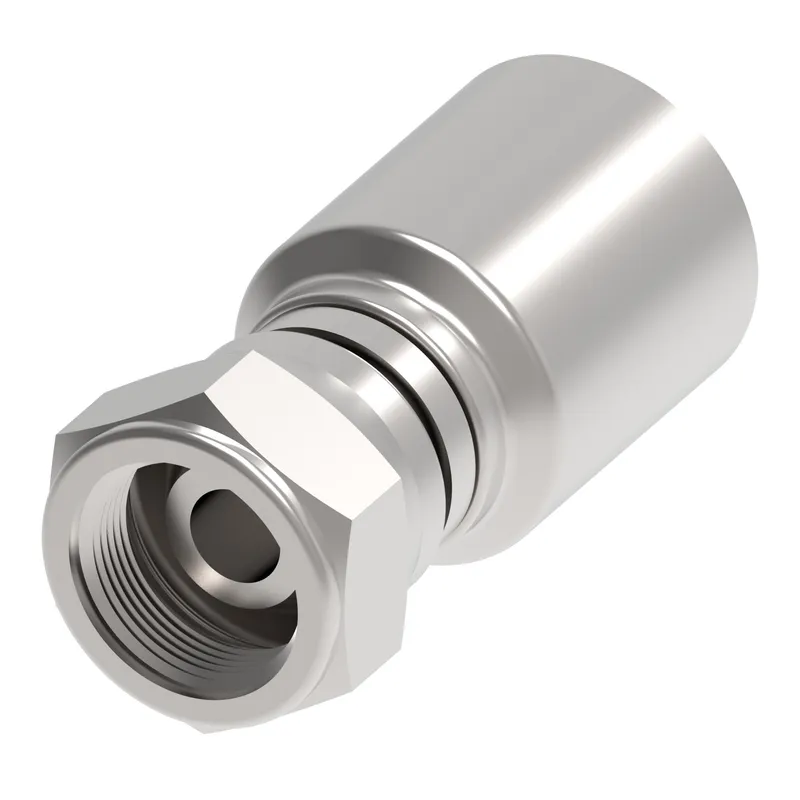

HOSE FTG, 4T/06, BF/08, CS, STR

MPN: 4T8BF6
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T8BF6?

Danfoss HOSE FTG, 4T/06, BF/08, CS, STR, manufacturer part number 4T8BF6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.890
A dimension MM	47.900
Angle shape	Straight
Application	Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.525
Construction Style	Crimp
End size 1	-8
End type 1	Female BSPP swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	0.890
Hose cut off factor MM	22.600
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.7000
Product height in	1.063
Product height mm	27.000
Product length in	1.968
Product length mm	50.000
Product material	Carbon steel
Product width in	0.078
Product width mm	2.000 mm
Thread sealant	No
Thread size 1	G 1/2
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
