Danfoss 4T16DLA12

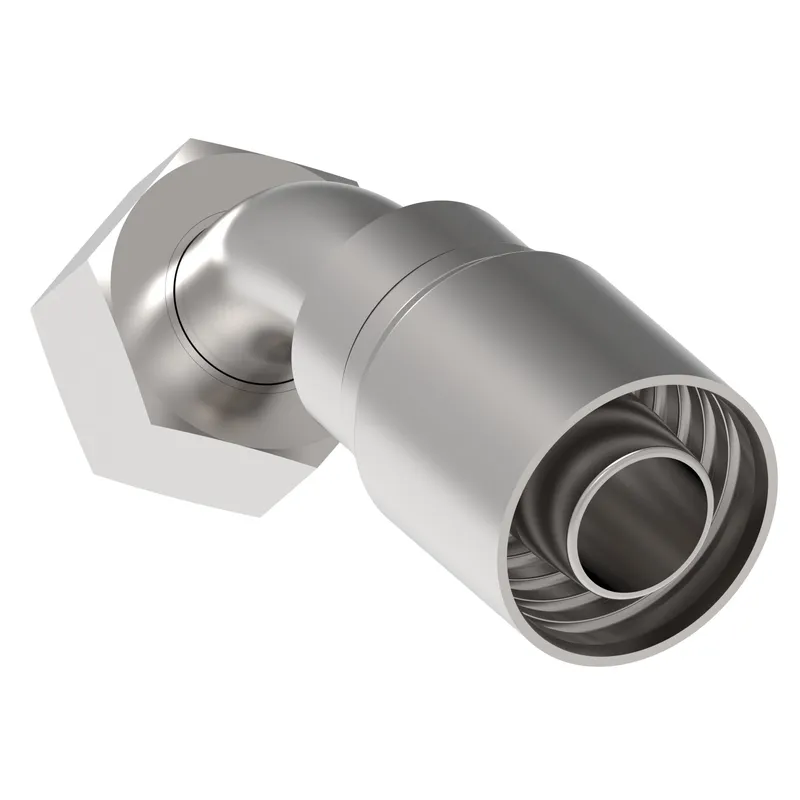

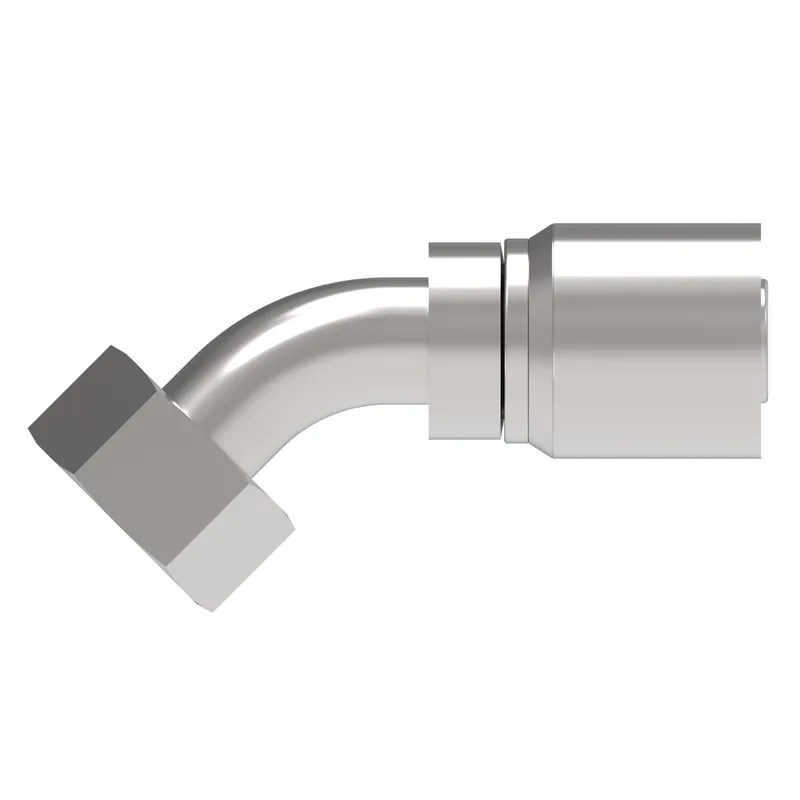

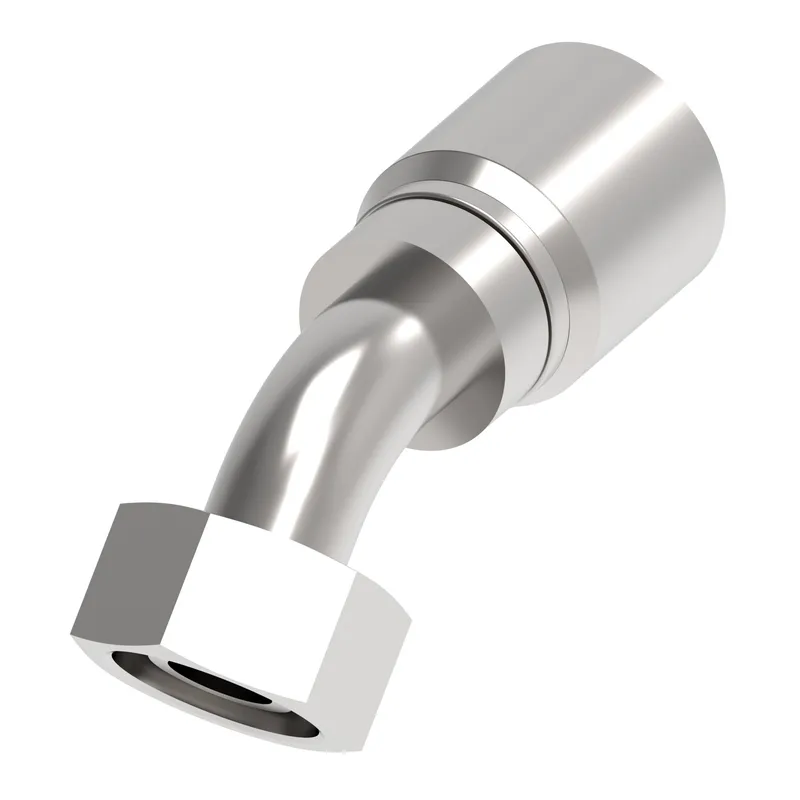

HOSE FTG, 4T/12, DKOL/16, CS, 45D

MPN: 4T16DLA12
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T16DLA12?

Danfoss HOSE FTG, 4T/12, DKOL/16, CS, 45D, manufacturer part number 4T16DLA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.570
A dimension MM	90.700
Angle shape	45 Degree
Compatible hose ID IN	0.750
Compatible hose ID MM	19.050
Construction Style	Crimp
Drop dimension IN	0.960
Drop dimension MM	24.40
End size 1	-16
End type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hose cut off factor IN	2.380
Hose cut off factor MM	60.500
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.968
Product height mm	50.000
Product length in	3.937
Product length mm	100.000
Product material	Carbon steel
Product width in	1.259
Product width mm	32.000 mm
Thread sealant	No
Thread size 1	M26x1.5
Working pressure max BAR	165
Working pressure max PSI	2400
