Danfoss 4T16DK10

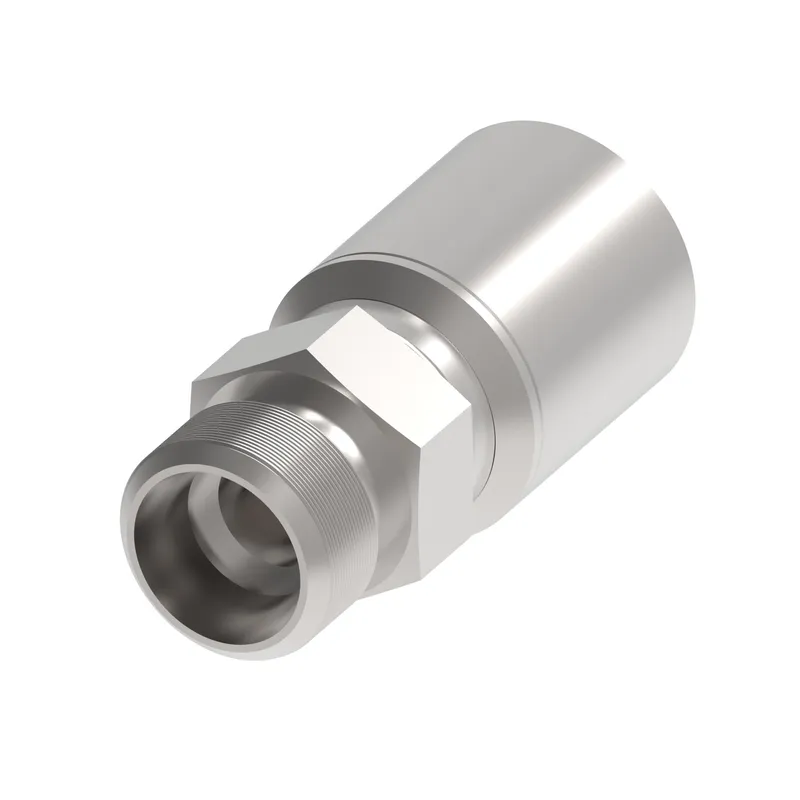

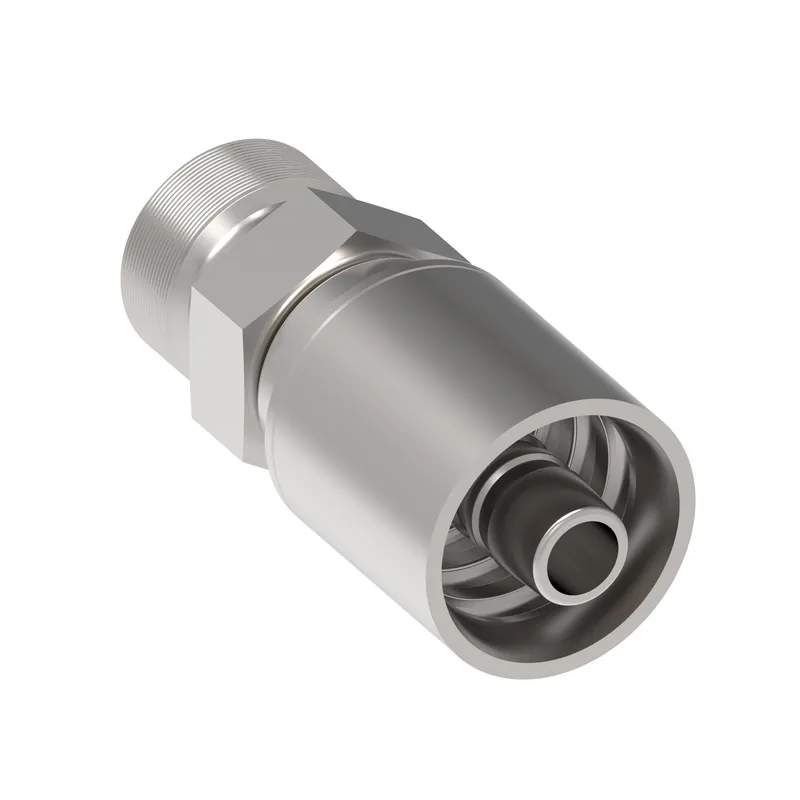

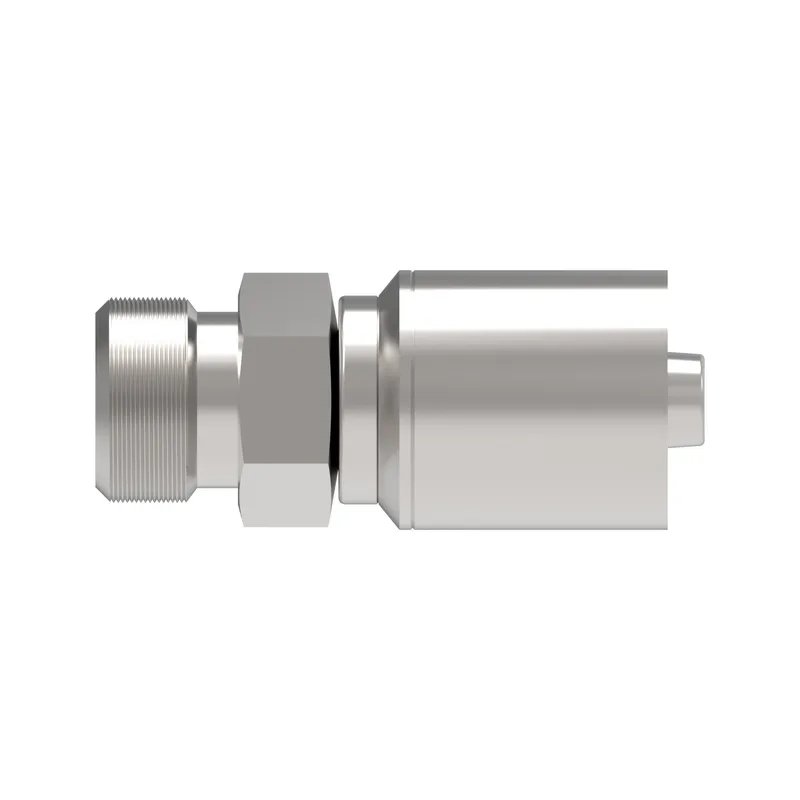

HOSE FTG, 4T/10, DKL-M/16, CS, STR

MPN: 4T16DK10
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T16DK10?

Danfoss HOSE FTG, 4T/10, DKL-M/16, CS, STR, manufacturer part number 4T16DK10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.200
A dimension MM	56.000
Angle shape	Straight
Compatible hose ID IN	0.620
Compatible hose ID MM	15.875
Construction Style	Crimp
End size 1	-16
End type 1	24 deg. tube port light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	27.0
Hose cut off factor IN	1.050
Hose cut off factor MM	26.600
Hose size	-10
Inside diameter IN	0.5000
Inside diameter MM	12.8000
Product height in	1.181
Product height mm	30.000
Product length in	2.204
Product length mm	56.000
Product material	Carbon steel
Product width in	1.181
Product width mm	30.000 mm
Thread sealant	No
Thread size 1	M26x1.5
Working pressure max BAR	100.00
Working pressure max PSI	1450.00
