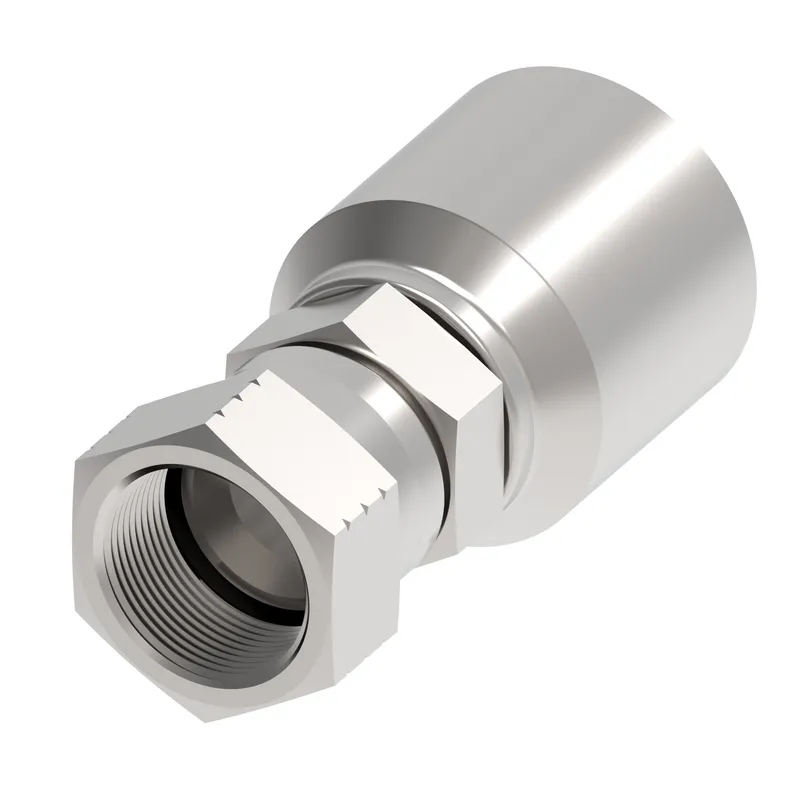

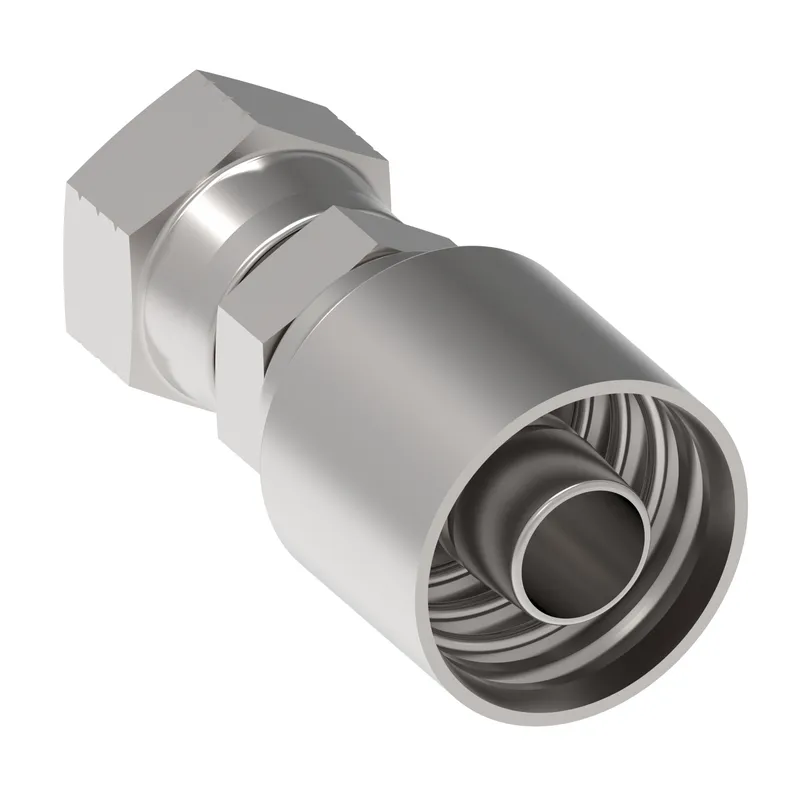

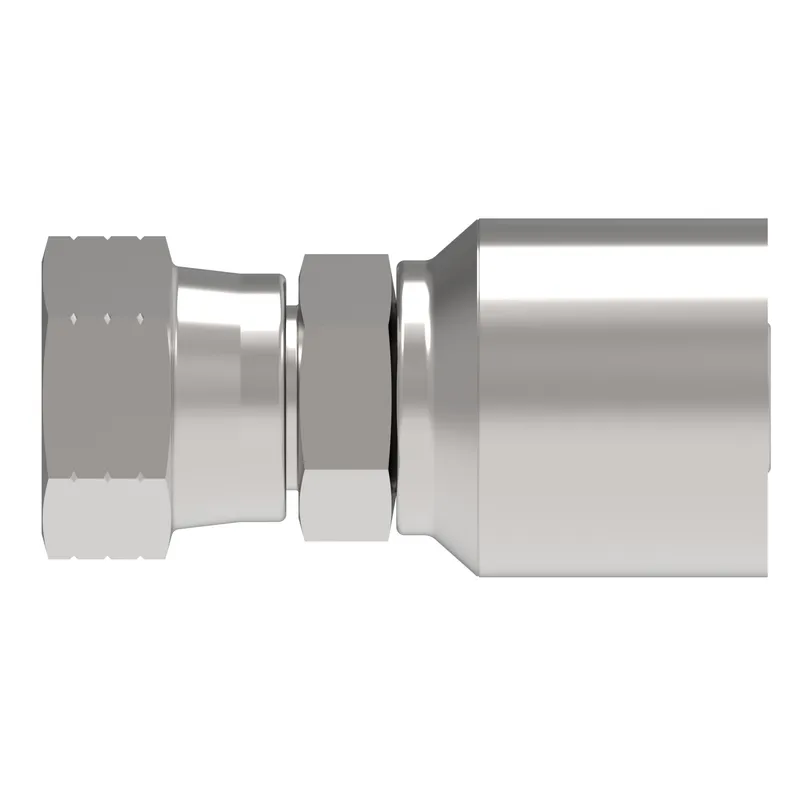

Danfoss 4T16FJ16

HOSE FTG, 4T/16, JIC-F/16, CS, STR

MPN: 4T16FJ16
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4T16FJ16?

Danfoss HOSE FTG, 4T/16, JIC-F/16, CS, STR, manufacturer part number 4T16FJ16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.270
A dimension MM	83.700
Angle shape	Straight
Brand	Synflex Optimum by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End size 1	-16
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.614
Hex size 1 MM	41.000
Hex size 2 IN	1.417
Hex size 2 MM	36.000
Hose cut off factor IN	1.930
Hose cut off factor MM	49.100
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	20.700
Product height in	1.614
Product height mm	41.000
Product length in	3.275
Product length mm	83.200
Product material	Carbon steel
Product width in	1.614
Product width mm	41.000 mm
Thread sealant	No
Thread size 1	1 5/16-12 UN
Working pressure max BAR	280
Working pressure max PSI	4050
