Danfoss 24213-20-20WZ

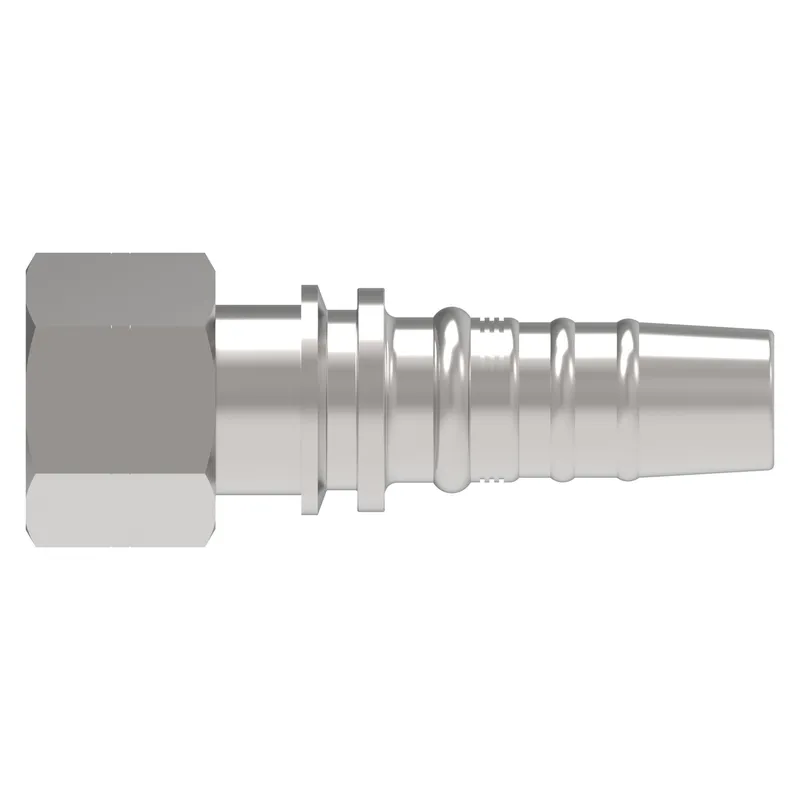

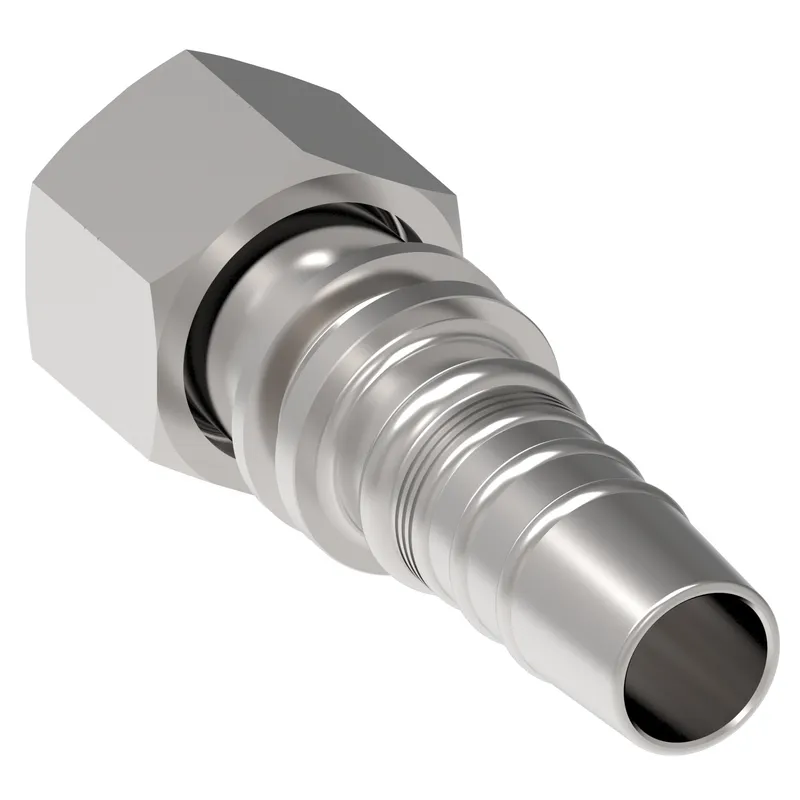

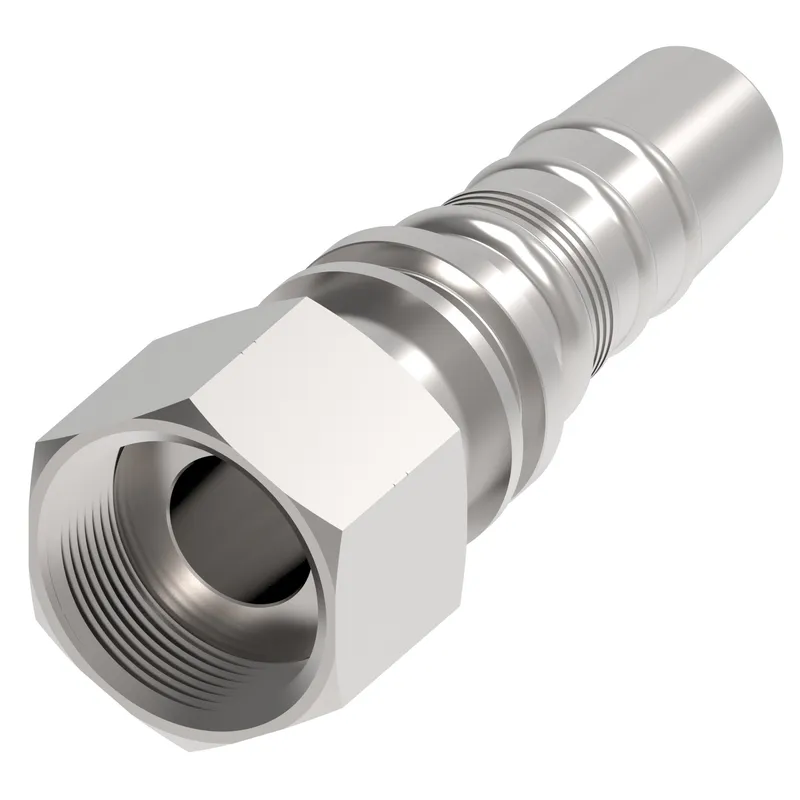

HOSE NIPPLE, 2P/20, ORS-F/20, CS, STR

MPN
24213-20-20WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24213-20-20WZ?

Danfoss HOSE NIPPLE, 2P/20, ORS-F/20, CS, STR, manufacturer part number 24213-20-20WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.078
A dimension MM129.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.800
Construction StyleCrimp
End connection torque125-140 lb-ft(170-190 Nm)
End size 1-20
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN1.970
Hex size 2 MM50.038
Hose cut off factor IN1.881
Hose cut off factor MM47.800
Hose size-20
Inside diameter IN0.944
Inside diameter MM24.000
Product height in2.270
Product height mm57.658
Product length in5.669
Product length mm143.993
Product materialCarbon steel
Product width in1.968
Product width mm49.987
SeriesWinner 2-Piece
Thread sealantNo
Working pressure max BAR310
Working pressure max PSI4500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
