Danfoss 24211Y-24-24TZ

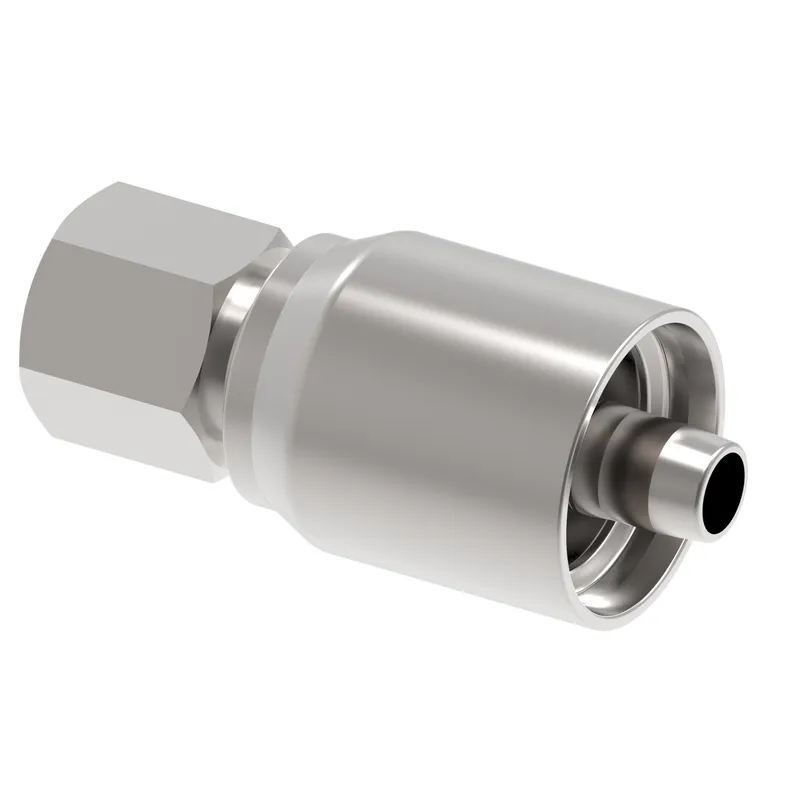

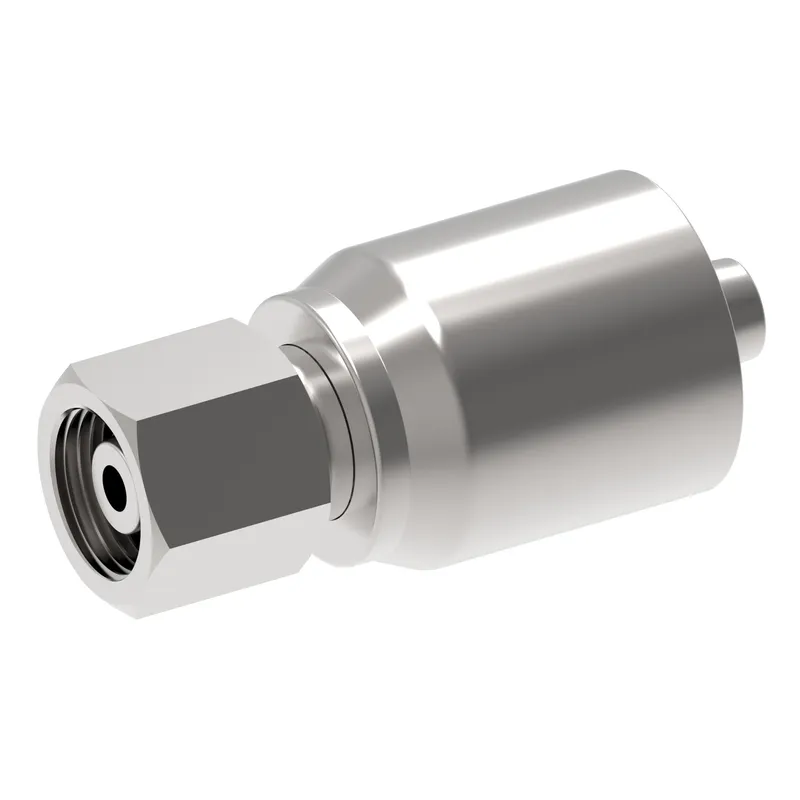

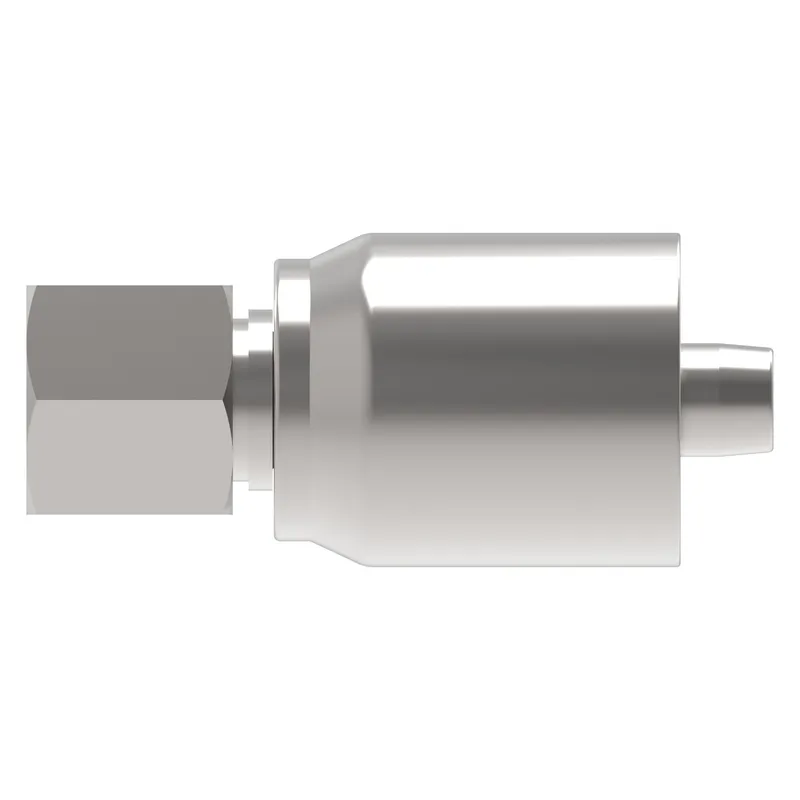

HOSE NIPPLE ASSY,1P/24,ORS-F/24,CS,STR

MPN
24211Y-24-24TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211Y-24-24TZ?

Danfoss HOSE NIPPLE ASSY,1P/24,ORS-F/24,CS,STR, manufacturer part number 24211Y-24-24TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.090
A dimension MM104.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-24
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN2.362
Hex size 1 MM60.000
Hex size 2 IN2.360
Hex size 2 MM59.944
Hose cut off factor IN1.420
Hose cut off factor MM36.000
Hose size-24
Inside diameter IN1.260
Inside diameter MM32.000
Product height in2.696
Product height mm68.478
Product length in4.677
Product length mm118.796
Product materialCarbon steel
Product width in2.690
Product width mm68.326
Thread sealantNo
Thread size 12-12 UN
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24211Y-24-24TZ: frequently asked questions

When can 24211Y-24-24TZ be shipped?

24211Y-24-24TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24211Y-24-24TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24211Y-24-24TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211Y-24-24TZ, subject to availability and destination.
