Danfoss 24241-06-04H11TZF

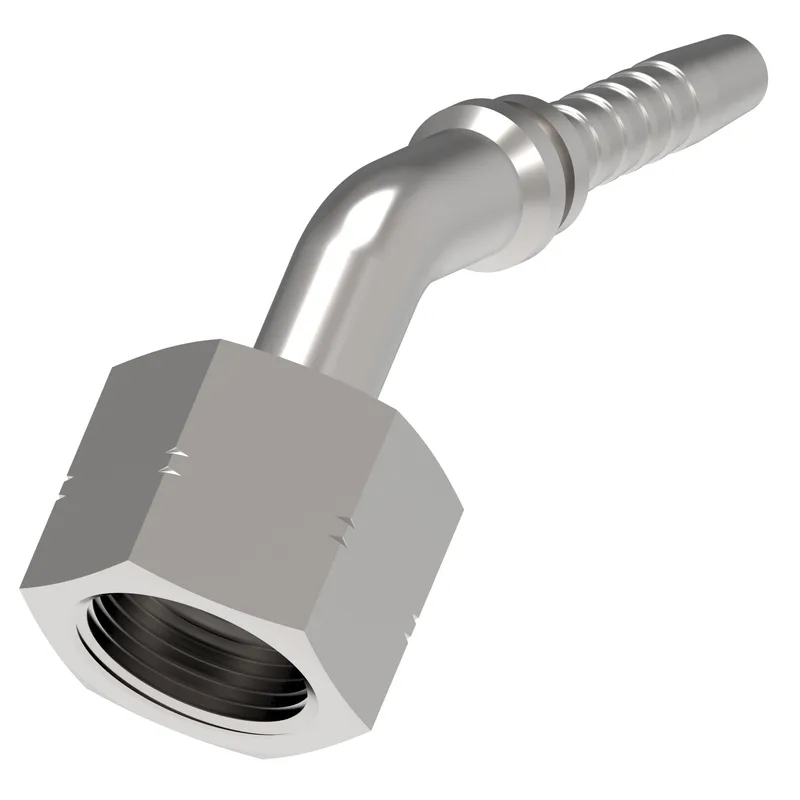

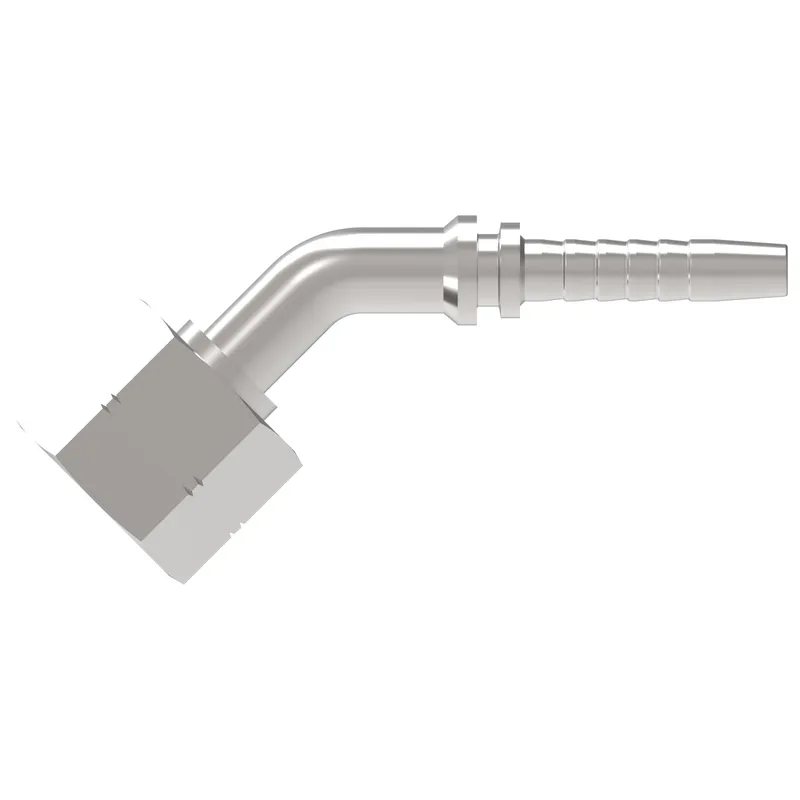

HOSE NIPPLE ASSY,2P/04,ORS-F/06,CS,45D

MPN
24241-06-04H11TZF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24241-06-04H11TZF?

Danfoss HOSE NIPPLE ASSY,2P/04,ORS-F/06,CS,45D, manufacturer part number 24241-06-04H11TZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.500
A dimension MM63.500
Angle shape45 Degree
Compatible hose ID IN0.250
Compatible hose ID MM6.350
Compatible hoses EC110, EC115, EC210, EC215
Construction StyleCrimp
Drop dimension IN0.430
Drop dimension MM11.00
End size 1-6
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM22.000
Hex size 2 IN0.866
Hex size 2 MM21.996
Hose cut off factor IN1.397
Hose cut off factor MM35.500
Hose size-4
Inside diameter IN0.150
Inside diameter MM3.900
Product height in1.450
Product height mm36.830
Product length in3.280
Product length mm83.312
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Thread sealantNo
Thread size 111/16-16 UN
Working pressure max BAR621
Working pressure max PSI9100

24241-06-04H11TZF: frequently asked questions

When can 24241-06-04H11TZF be shipped?

24241-06-04H11TZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24241-06-04H11TZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24241-06-04H11TZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24241-06-04H11TZF, subject to availability and destination.
