Danfoss 24213-16-16WZ

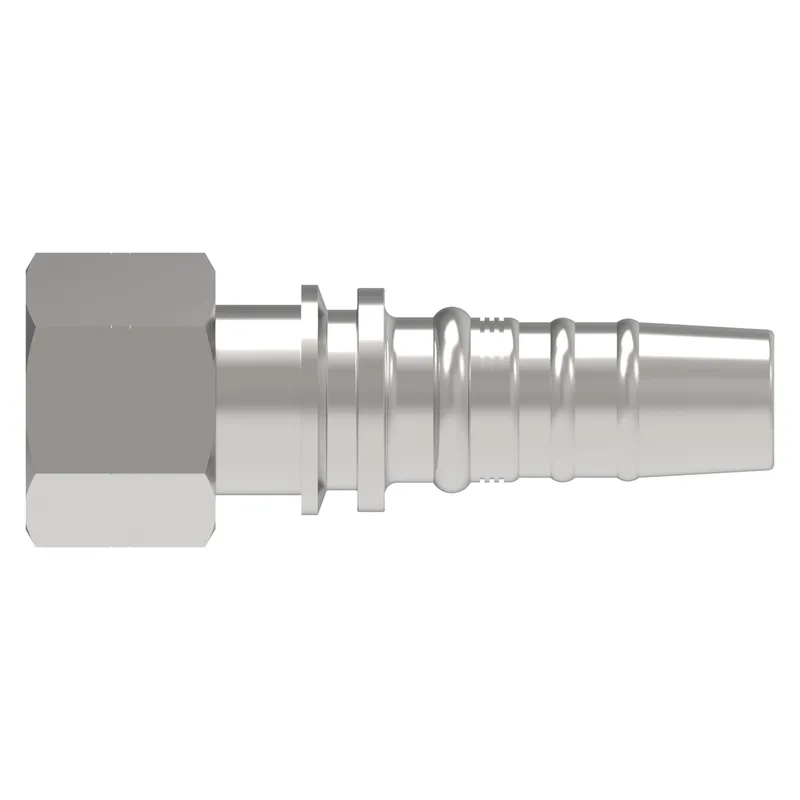

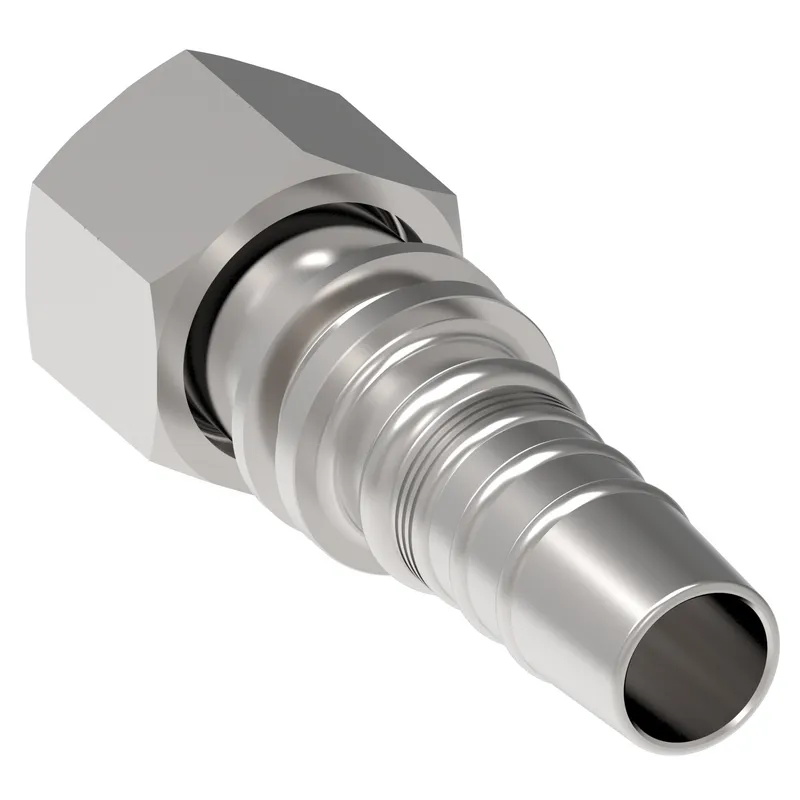

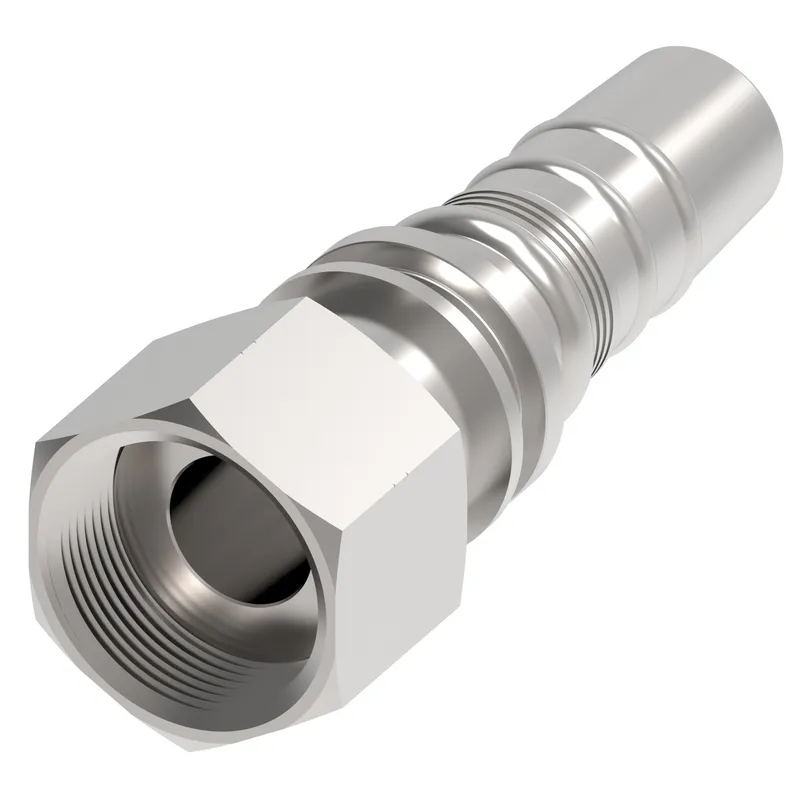

HOSE NIPPLE, 2P/16, ORS-F/16, CS, STR

MPN
24213-16-16WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24213-16-16WZ?

Danfoss HOSE NIPPLE, 2P/16, ORS-F/16, CS, STR, manufacturer part number 24213-16-16WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.212
A dimension MM107.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Compatible hoses2755, GH493, GH506
Construction StyleCrimp
End connection torque92-100 lb-ft(125-136 Nm)
End size 1-16
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 2 IN1.614
Hex size 2 MM40.996
Hose cut off factor IN1.748
Hose cut off factor MM44.400
Hose size-16
Inside diameter IN0.748
Inside diameter MM19.000
Product height in1.840
Product height mm46.736
Product length in4.795
Product length mm121.793
Product materialCarbon steel
Product width in1.614
Product width mm40.996
SeriesWinner 2-Piece
Thread sealantNo
Working pressure max BAR414
Working pressure max PSI6000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24213-16-16WZ: frequently asked questions

When can 24213-16-16WZ be shipped?

24213-16-16WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24213-16-16WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24213-16-16WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24213-16-16WZ, subject to availability and destination.
