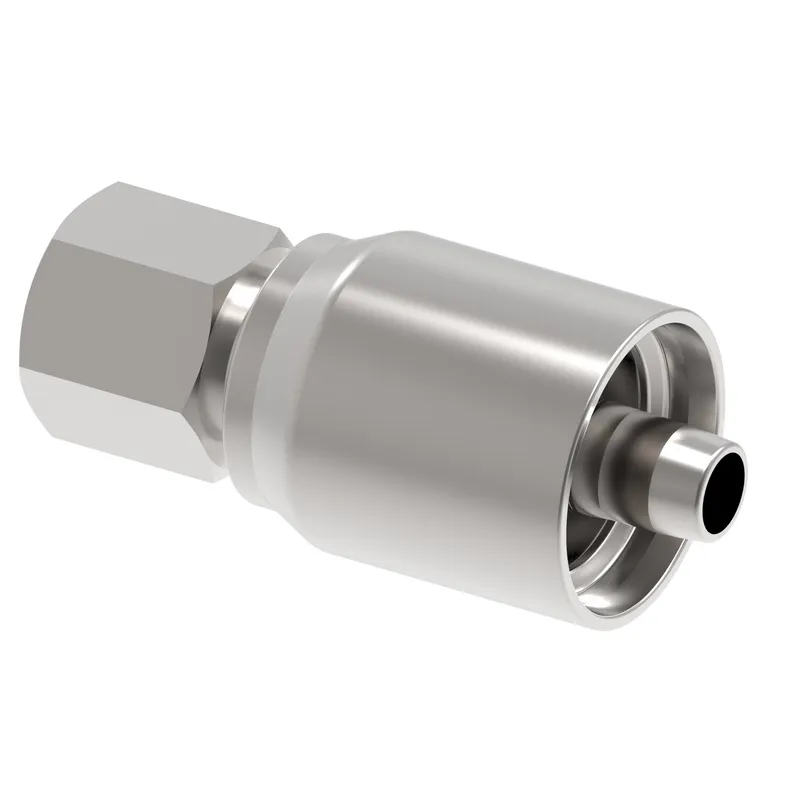

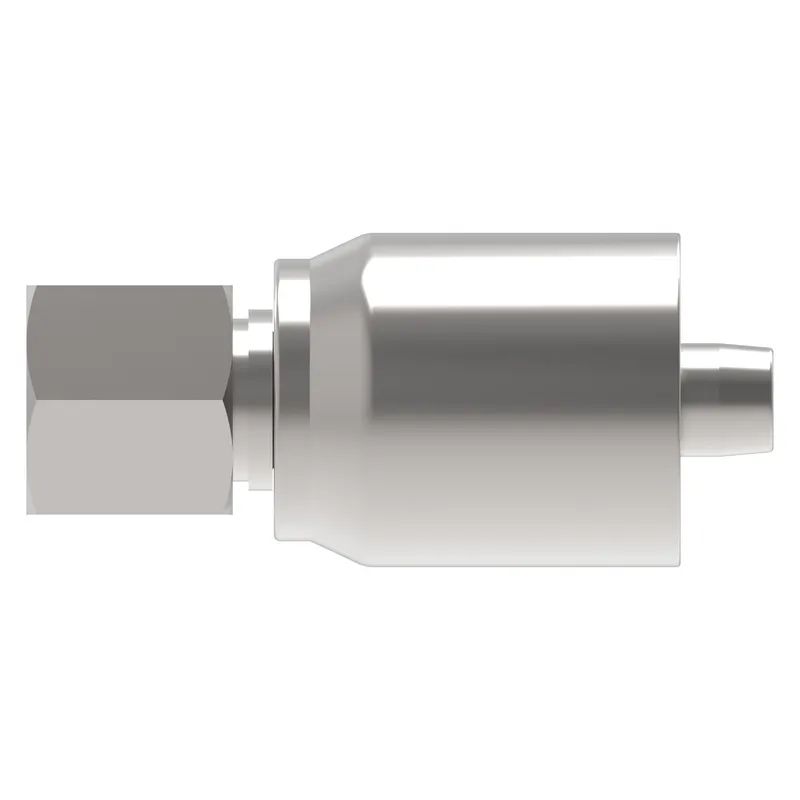

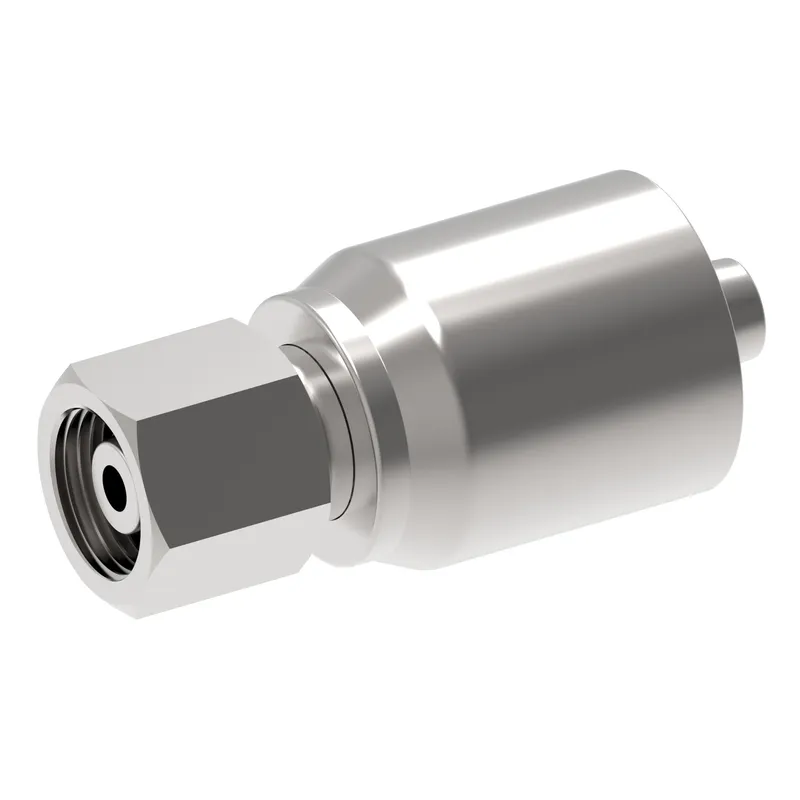

Danfoss 24211Y-20-16TZ

HOSE NIPPLE ASSY,1P/16,ORS-F/20,CS,STR

MPN
24211Y-20-16TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 24211Y-20-16TZ?

Danfoss HOSE NIPPLE ASSY,1P/16,ORS-F/20,CS,STR, manufacturer part number 24211Y-20-16TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.248
A dimension MM82.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
End size 1-20
End Type 1Female ORFS swivel
Finish platingZinc plating
Hex size 1 IN1.938
Hex size 1 MM50.000
Hex size 2 IN1.968
Hex size 2 MM49.987
Hose cut off factor IN1.850
Hose cut off factor MM47.000
Hose size-16
Inside diameter IN0.826
Inside diameter MM21.000
Product height in1.574
Product height mm40.000
Product length in3.248
Product length mm82.500
Product materialCarbon steel
Product width in1.838
Product width mm46.7
Seal materialNitrile (NBR)
Thread sealantNo
Working pressure max BAR310
Working pressure max PSI4500
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

24211Y-20-16TZ: frequently asked questions

When can 24211Y-20-16TZ be shipped?

24211Y-20-16TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 24211Y-20-16TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 24211Y-20-16TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211Y-20-16TZ, subject to availability and destination.
