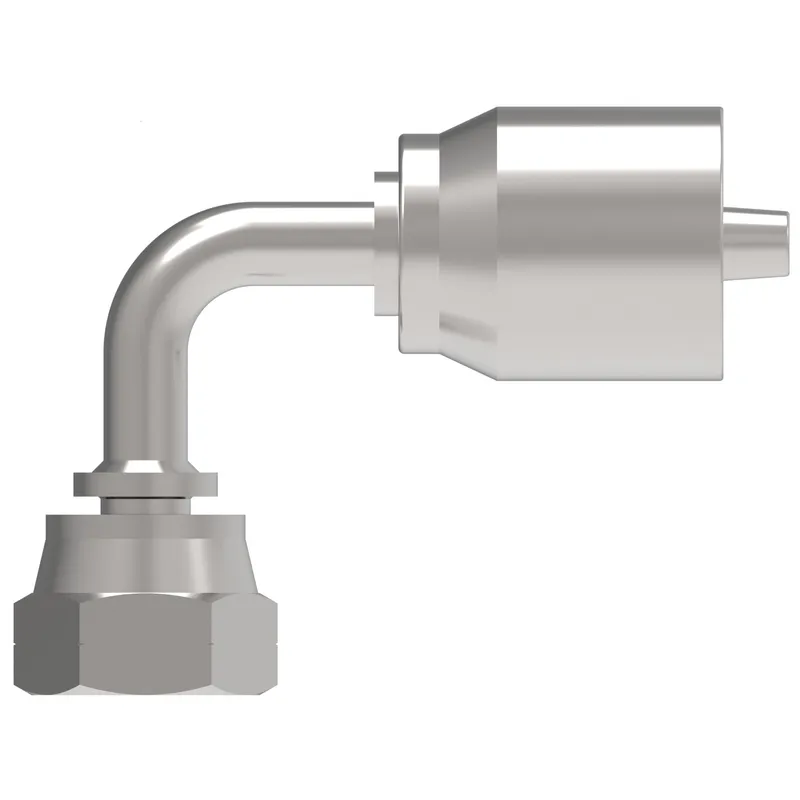

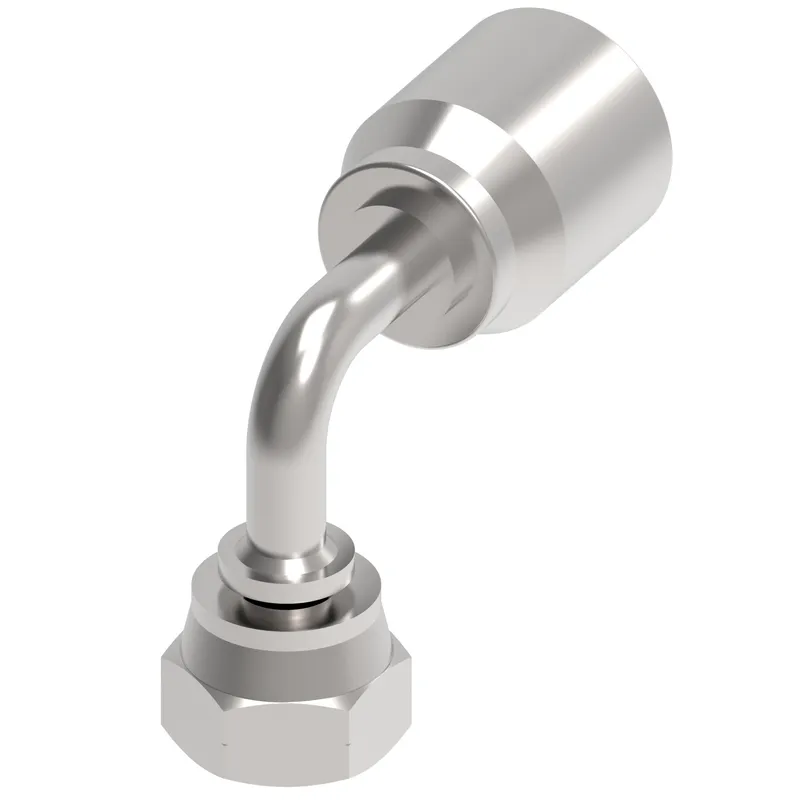

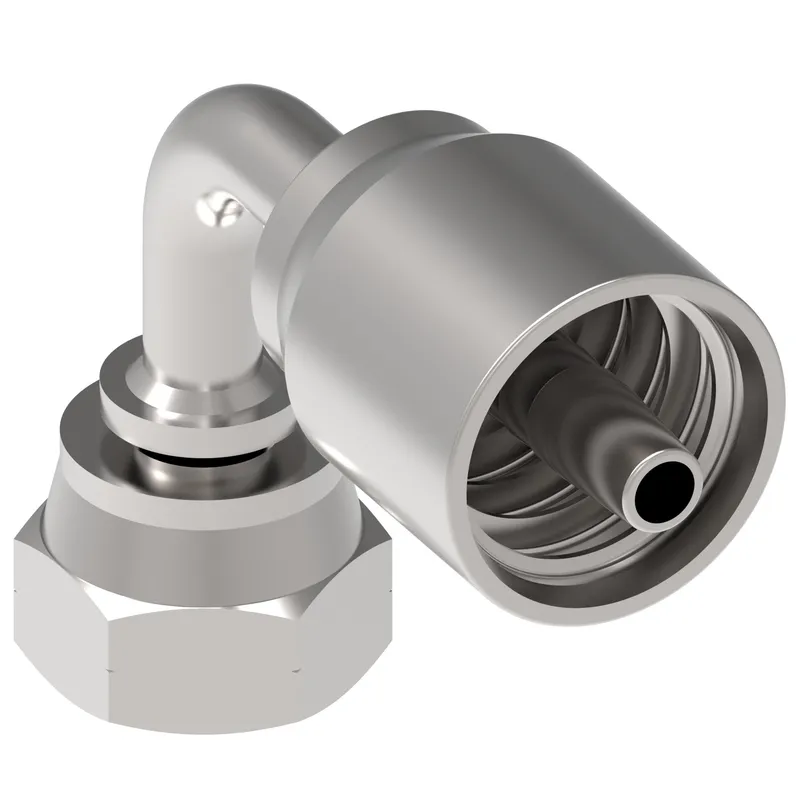

Danfoss 22691Y-12-12Z

HOSE NIPPLE ASSY, 1P/12, BF/12, CS, 90D

MPN
22691Y-12-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691Y-12-12Z?

Danfoss HOSE NIPPLE ASSY, 1P/12, BF/12, CS, 90D, manufacturer part number 22691Y-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.070
A dimension MM103.400
Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN2.600
Drop dimension MM66.10
End connection torque103-118 lb-ft(140-160 Nm)
End size 1-12
End Type 1Female BSPP swivel
Finish platingZinc plating
Hex size 2 IN1.250
Hex size 2 MM31.750
Hose cut off factor IN2.560
Hose cut off factor MM64.900
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in3.810
Product height mm96.774
Product length in4.700
Product length mm119.380
Product materialCarbon steel
Product width in1.555
Product width mm39.497
Thread sealantNo
Thread size 1G 3/4
Working pressure max BAR330
Working pressure max PSI4800
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

22691Y-12-12Z: frequently asked questions

When can 22691Y-12-12Z be shipped?

22691Y-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 22691Y-12-12Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 22691Y-12-12Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22691Y-12-12Z, subject to availability and destination.
