Danfoss 22691Y-16-16Z

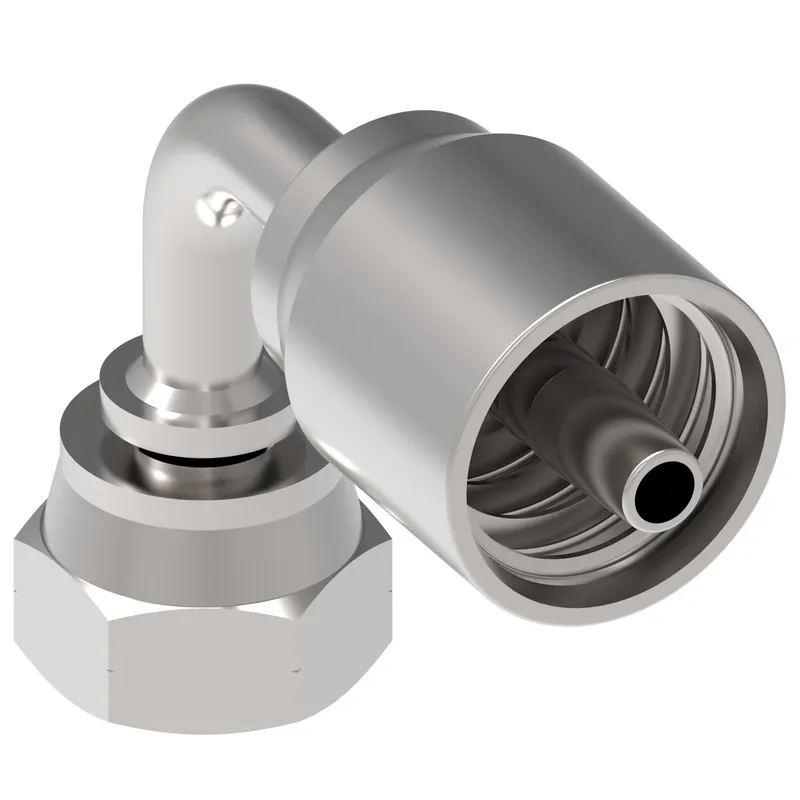

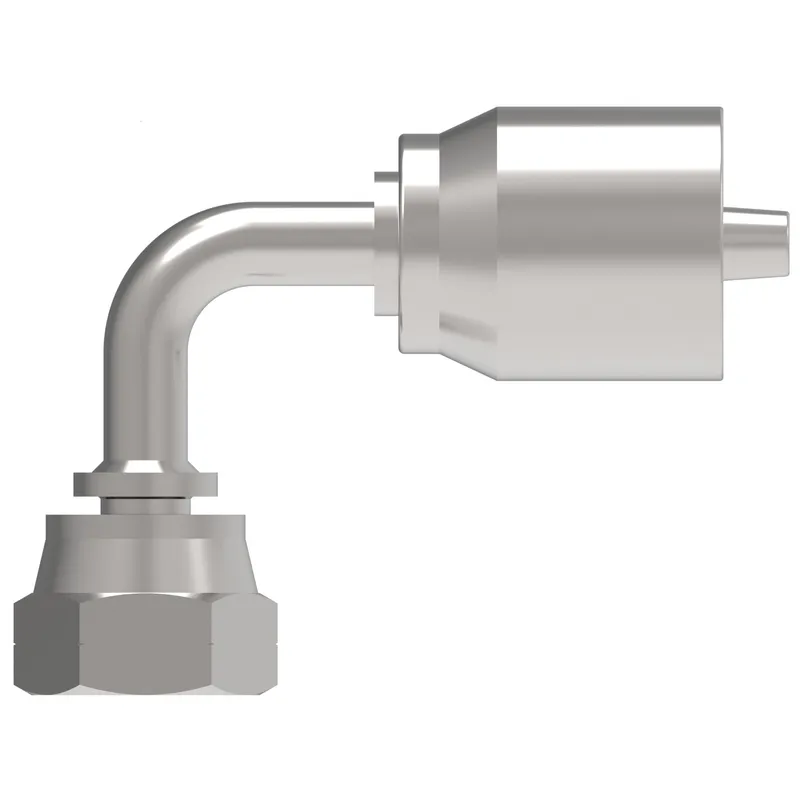

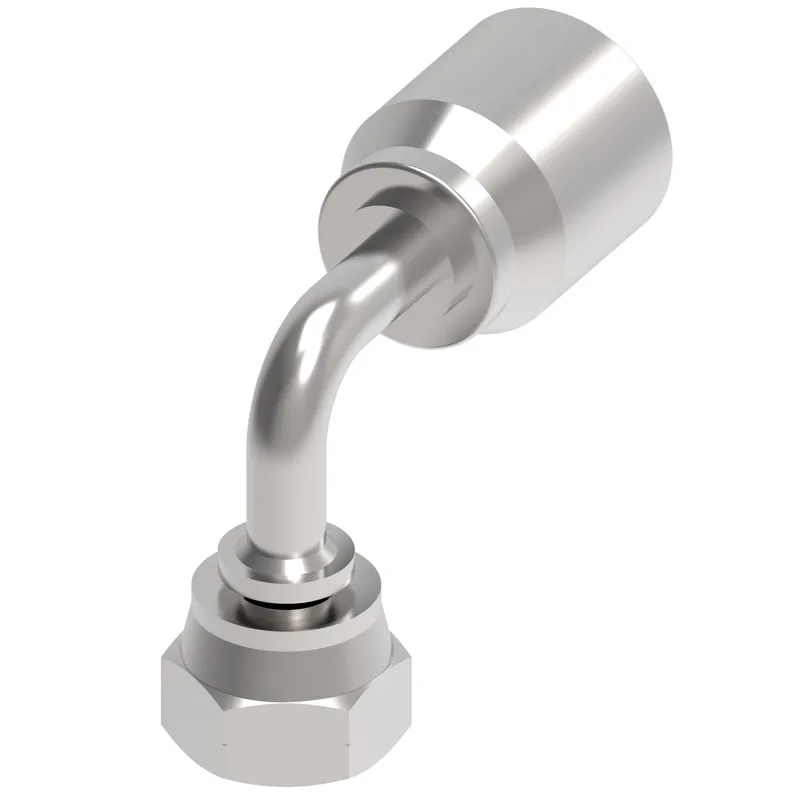

HOSE NIPPLE ASSY, 1P/16, BF/16, CS, 90D

MPN: 22691Y-16-16Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691Y-16-16Z?

Danfoss HOSE NIPPLE ASSY, 1P/16, BF/16, CS, 90D, manufacturer part number 22691Y-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.870
A dimension MM	123.700
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	2.910
Drop dimension MM	73.80
End connection torque	162-184 lb-ft(220-250 Nm)
End size 1	-16
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	1.610
Hex size 2 MM	40.894
Hose cut off factor IN	3.020
Hose cut off factor MM	76.700
Hose size	-16
Inside diameter IN	0.830
Inside diameter MM	21.000
Product height in	4.330
Product height mm	109.982
Product length in	5.680
Product length mm	144.272
Product material	Carbon steel
Product width in	1.929
Product width mm	48.997
Thread sealant	No
Thread size 1	G 1
Working pressure max BAR	280
Working pressure max PSI	4050
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
