Danfoss 22691Y-06-06Z

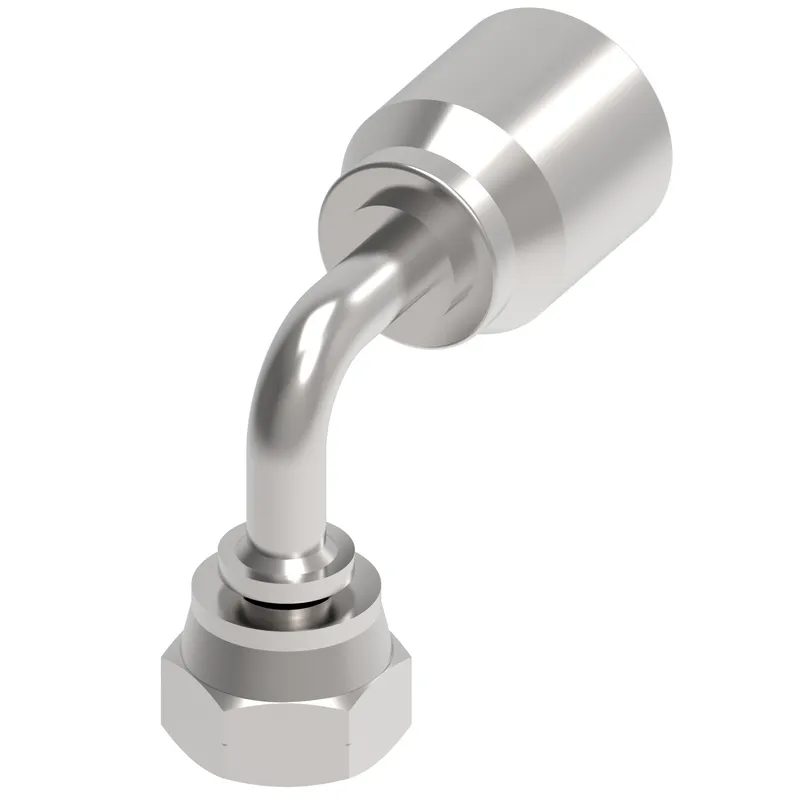

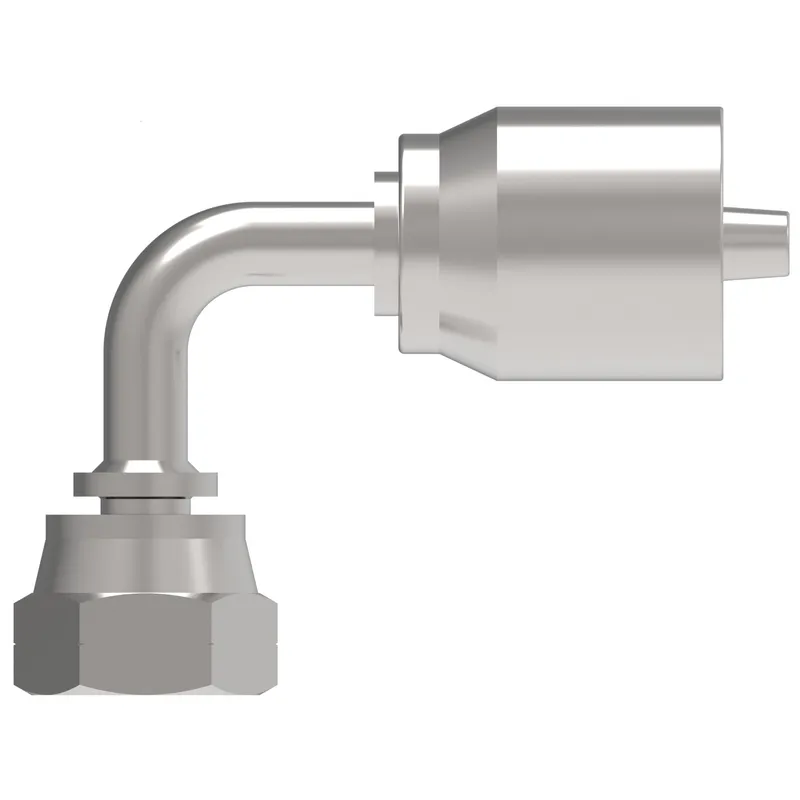

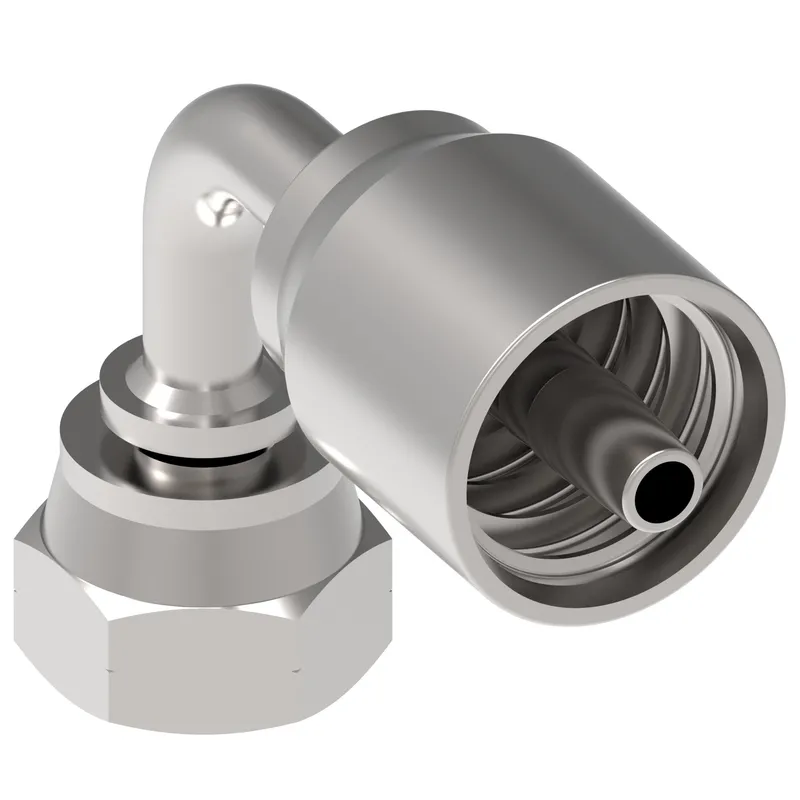

HOSE NIPPLE ASSY, 1P/06, BF/06, CS, 90D

MPN: 22691Y-06-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691Y-06-06Z?

Danfoss HOSE NIPPLE ASSY, 1P/06, BF/06, CS, 90D, manufacturer part number 22691Y-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.570
A dimension MM	65.300
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.690
Drop dimension MM	43.00
End connection torque	33-40 lb-ft(45-55 Nm)
End size 1	-6
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	0.870
Hex size 2 MM	22.098
Hose cut off factor IN	1.390
Hose cut off factor MM	35.300
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	2.480
Product height mm	62.992
Product length in	3.000
Product length mm	76.200
Product material	Carbon steel
Product width in	1.074
Product width mm	27.28
Thread sealant	No
Thread size 1	G 3/8
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
