Danfoss 22691Y-04-04Z

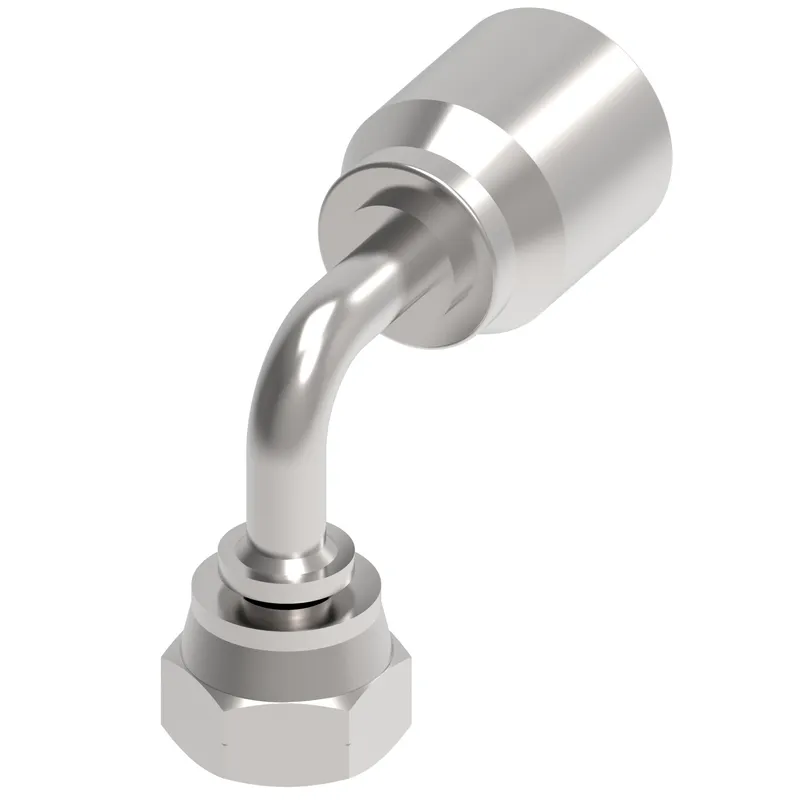

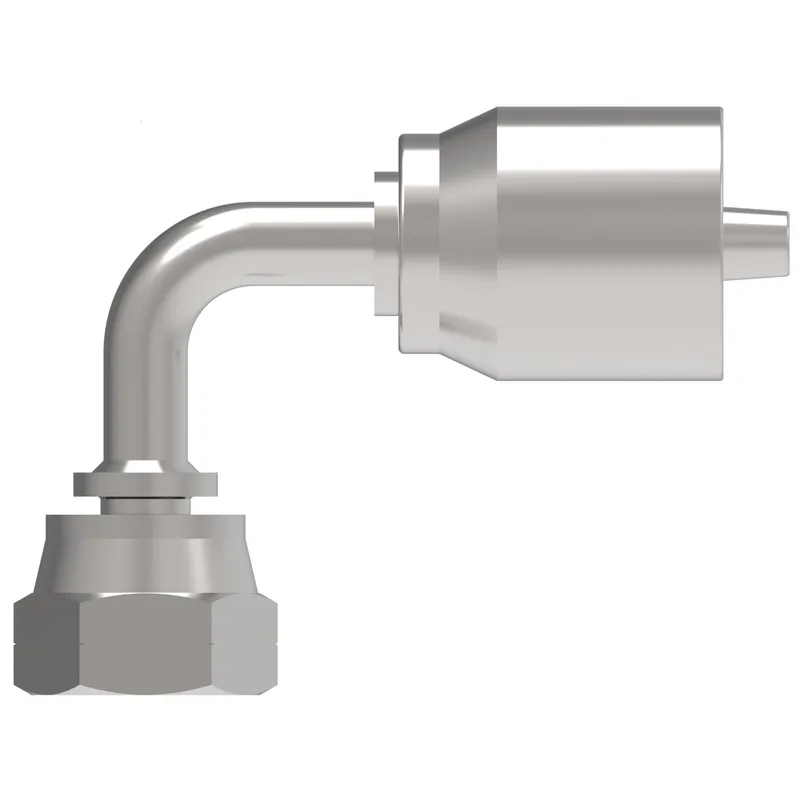

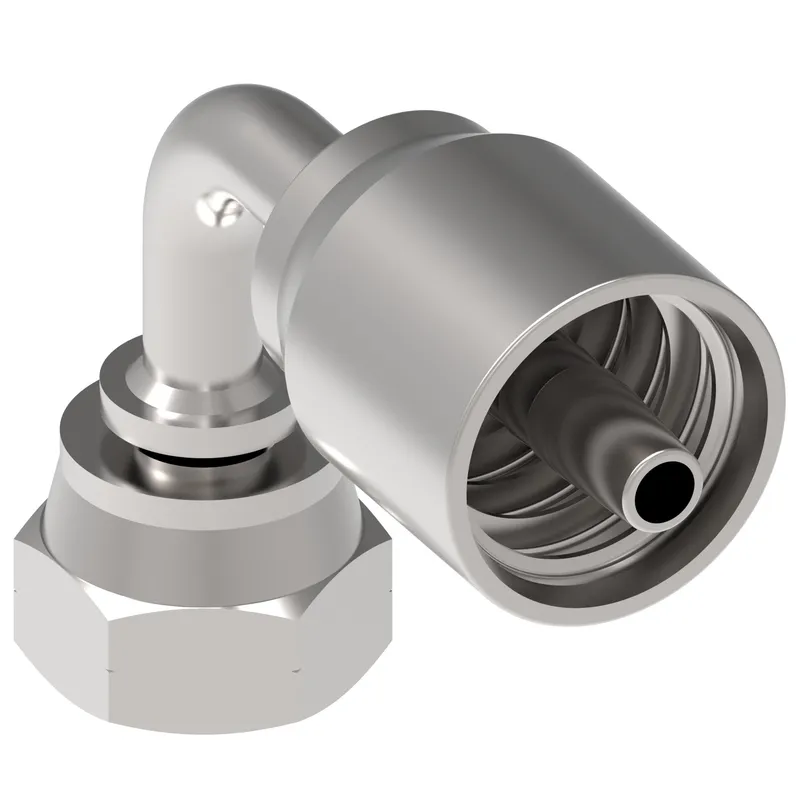

HOSE NIPPLE ASSY, 1P/04, BF/04, CS, 90D

MPN: 22691Y-04-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691Y-04-04Z?

Danfoss HOSE NIPPLE ASSY, 1P/04, BF/04, CS, 90D, manufacturer part number 22691Y-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.280
A dimension MM	58.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.440
Drop dimension MM	36.50
End connection torque	19-23 lb-ft(25-30 Nm)
End size 1	-4
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	0.750
Hex size 2 MM	19.050
Hose cut off factor IN	1.180
Hose cut off factor MM	30.000
Hose size	-4
Inside diameter IN	0.160
Inside diameter MM	4.000
Product height in	2.100
Product height mm	53.340
Product length in	2.660
Product length mm	67.564
Product material	Carbon steel
Product width in	0.897
Product width mm	22.784
Thread sealant	No
Thread size 1	G 1/4
Working pressure max BAR	450
Working pressure max PSI	6550
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
