Danfoss 22691-08-08ZF

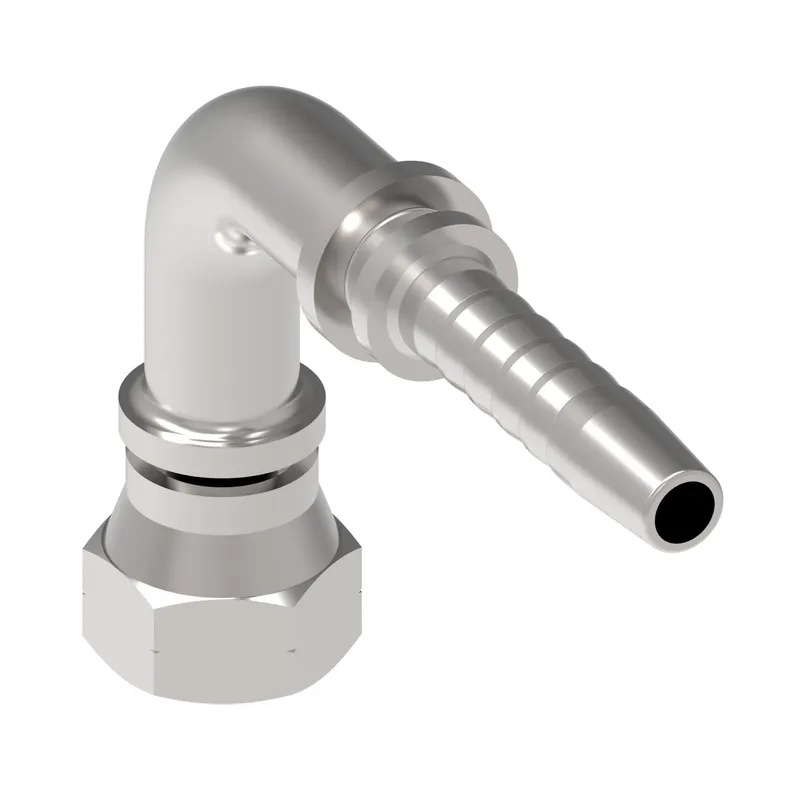

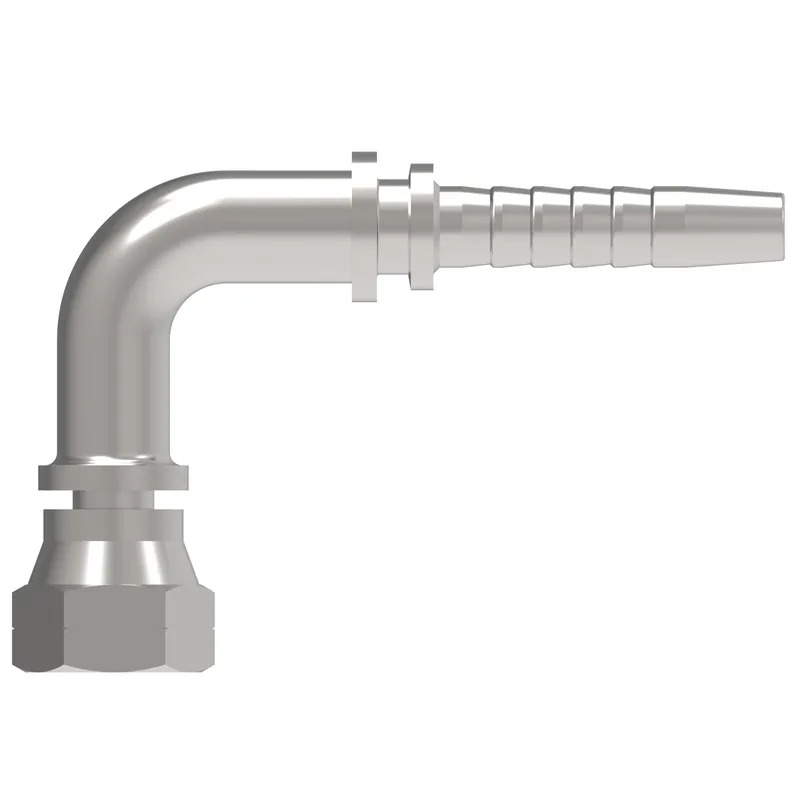

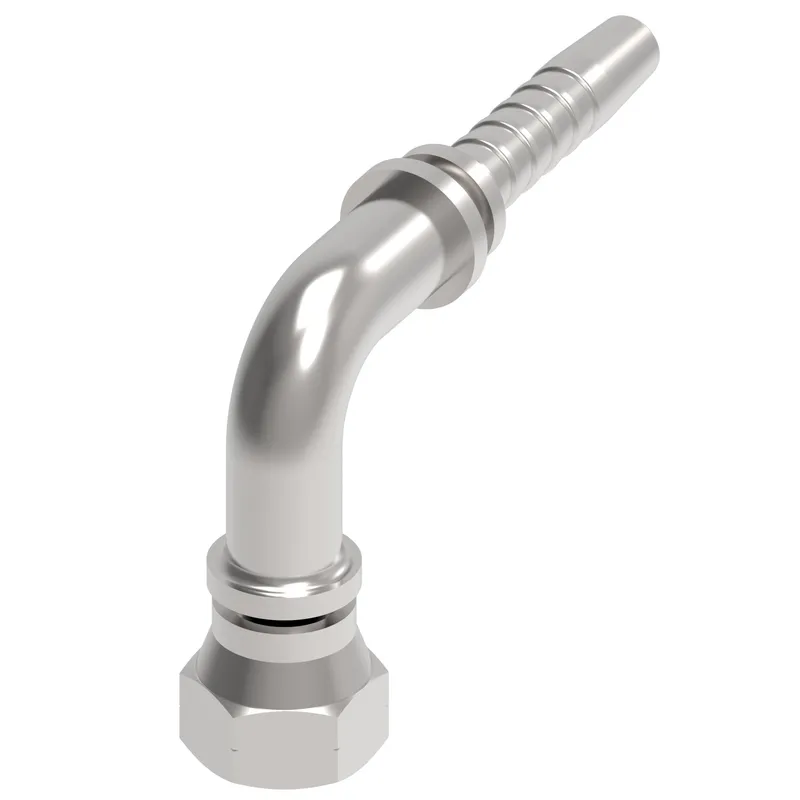

HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,90D

MPN: 22691-08-08ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691-08-08ZF?

Danfoss HOSE NIPPLE ASSY,2P/08,JIS-F/08,CS,90D, manufacturer part number 22691-08-08ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.850
A dimension MM	72.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Construction Style	Crimp
Drop dimension IN	2.010
Drop dimension MM	51.00
End size 1	-8
End Type 1	Female BSPP DKO swivel 60 deg.
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	1.610
Hose cut off factor MM	41.000
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.280
Product height mm	57.912
Product length in	3.780
Product length mm	96.012
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Thread sealant	No
Thread size 1	G 1/2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
