Danfoss 22691-08-06TZ

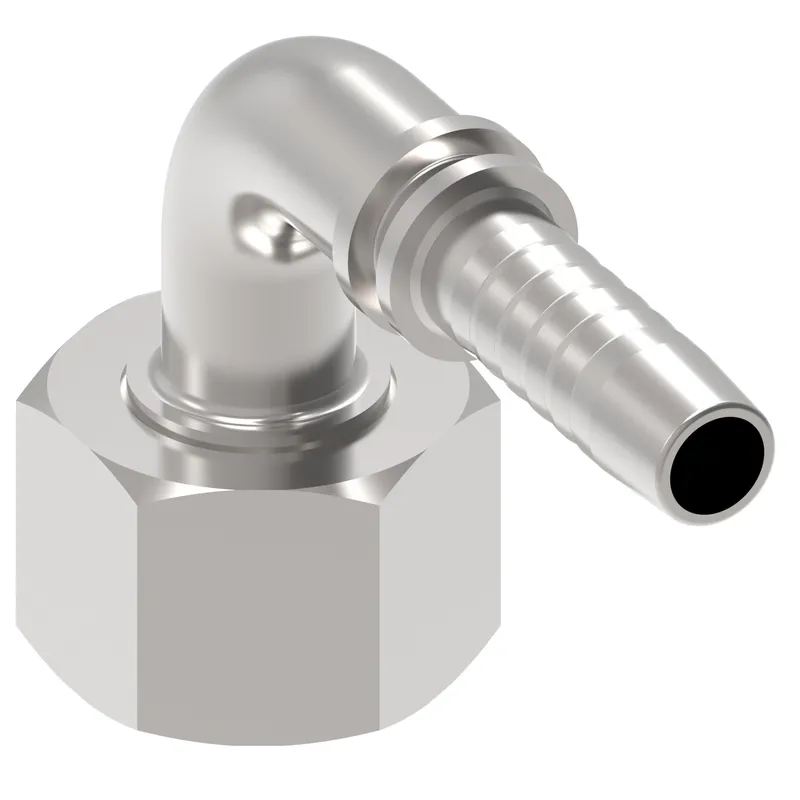

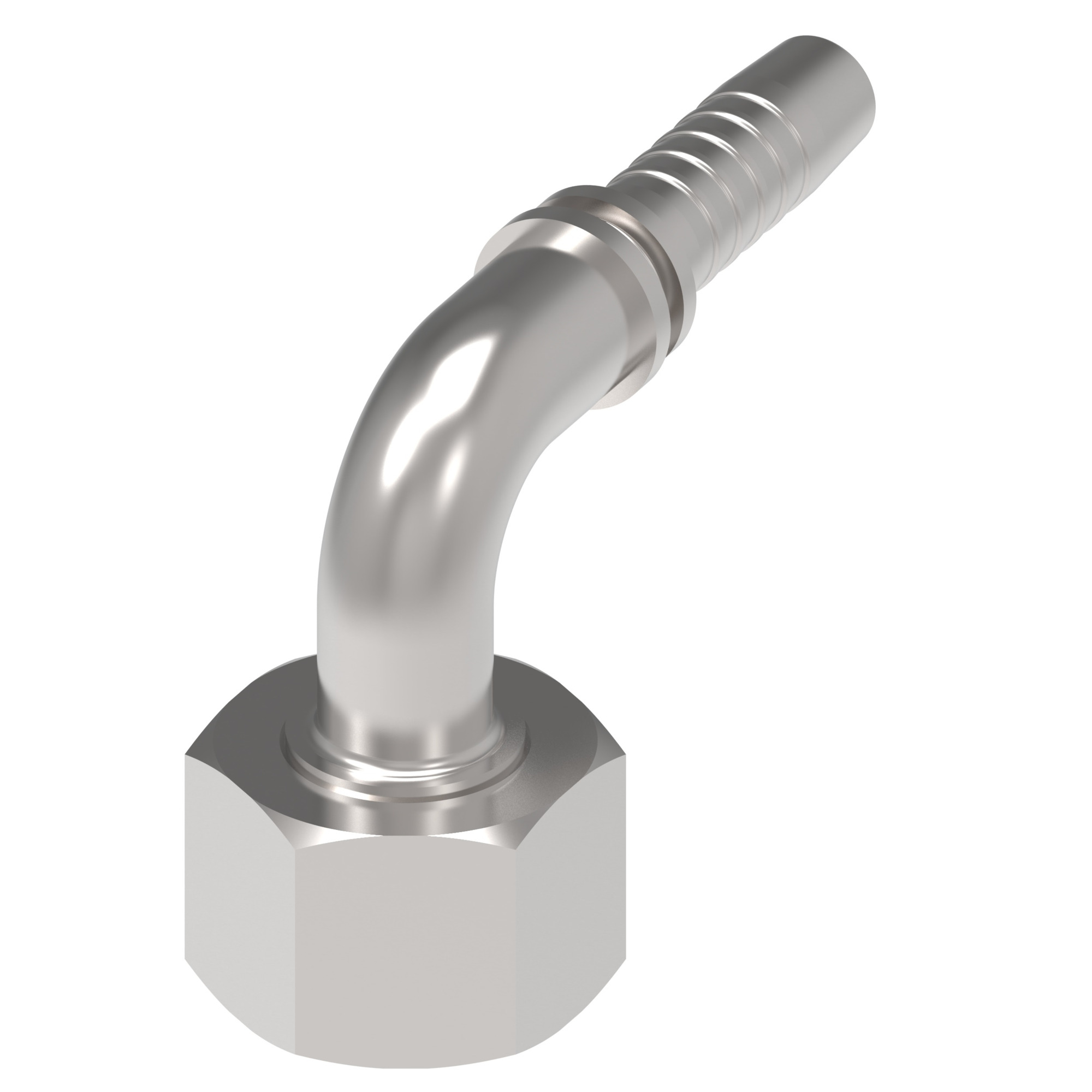

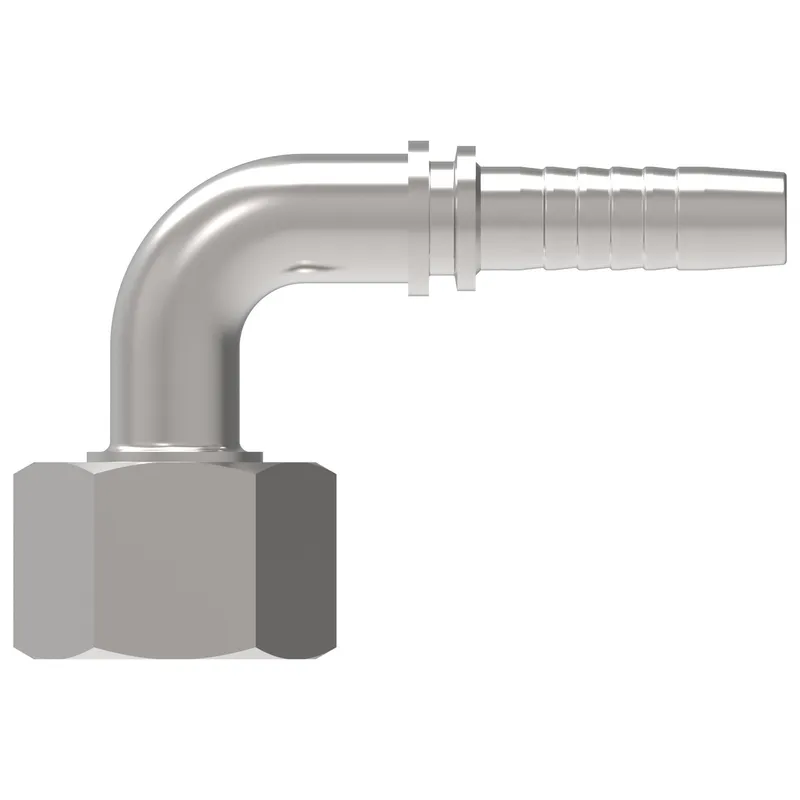

HOSE NIPPLE ASSY, 2P/06, BF/08, CS, 90D

MPN: 22691-08-06TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691-08-06TZ?

Danfoss HOSE NIPPLE ASSY, 2P/06, BF/08, CS, 90D, manufacturer part number 22691-08-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.570
A dimension MM	65.300
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Construction Style	Crimp
Drop dimension IN	1.645
Drop dimension MM	41.80
End size 1	-8
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hose cut off factor IN	1.389
Hose cut off factor MM	35.300
Inside diameter IN	0.275
Inside diameter MM	7.000
Product height in	2.240
Product height mm	56.896
Product length in	3.100
Product length mm	78.740
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Proposition 65	Cancer and Reproductive Harm
Thread sealant	No
Thread size 1	G 1/2
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
