Danfoss 22691-10-10ZF

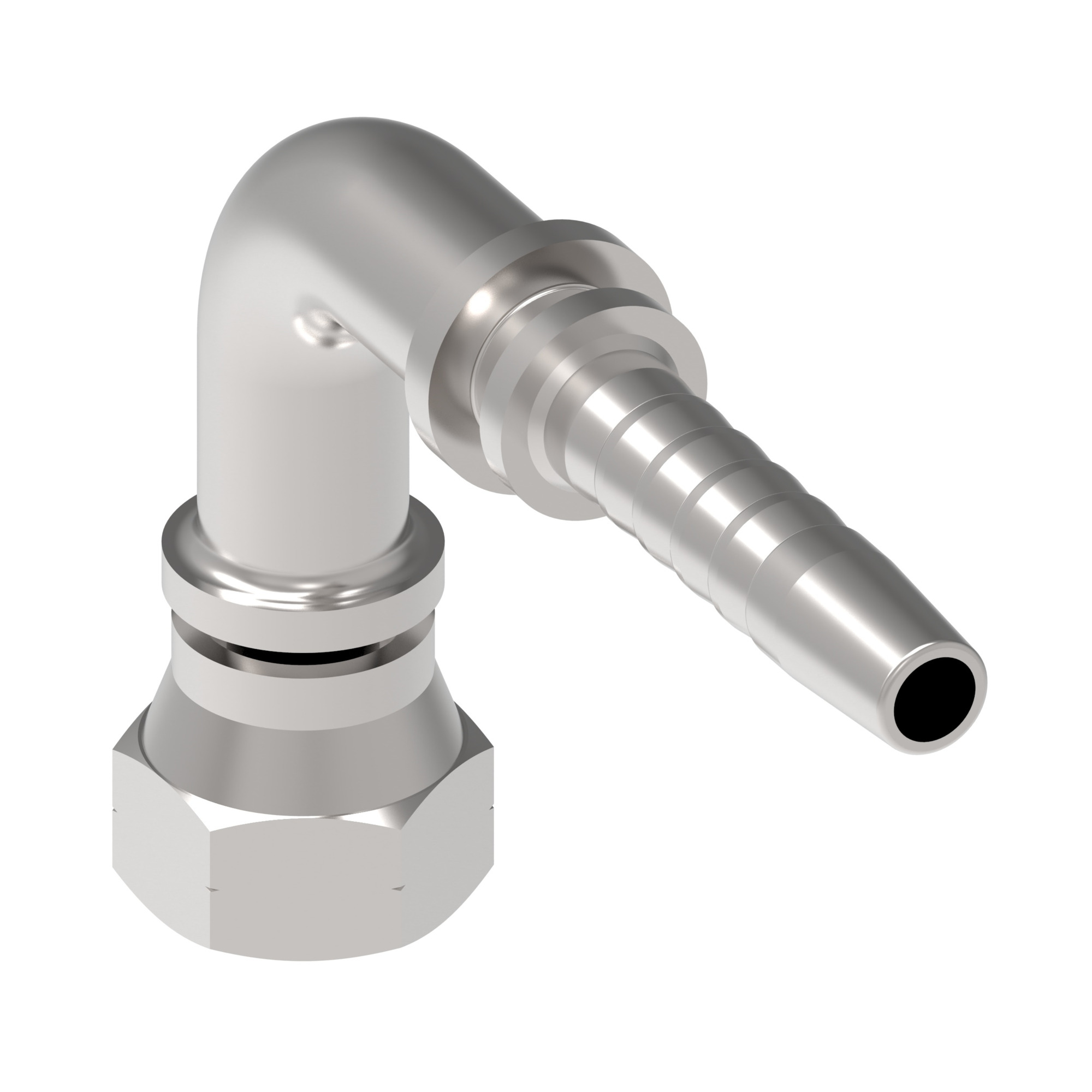

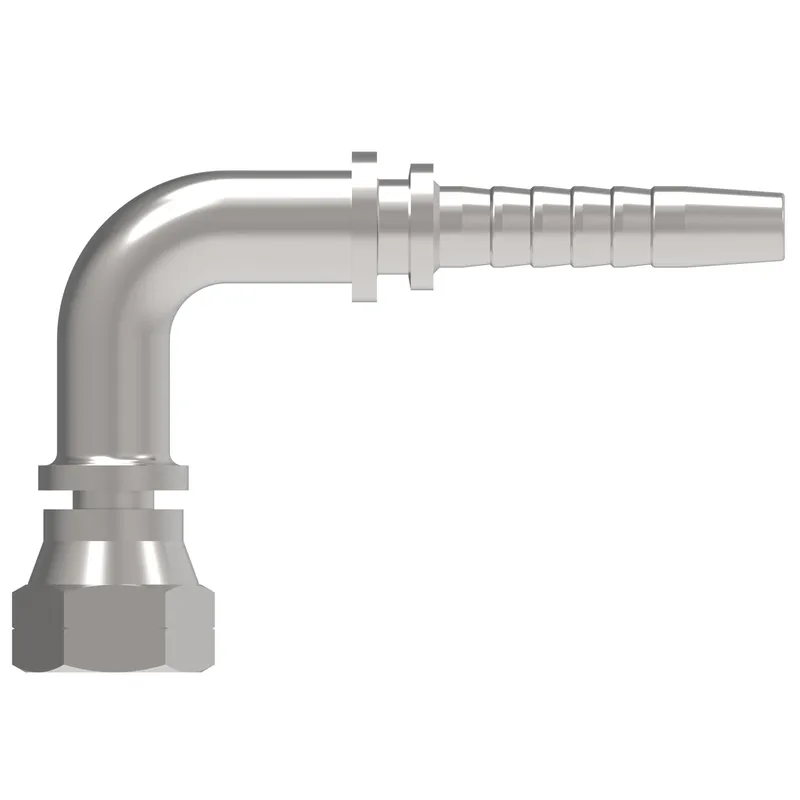

HOSE NIPPLE ASSY, 2P/10, BF/10, CS, 90D

MPN: 22691-10-10ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22691-10-10ZF?

Danfoss HOSE NIPPLE ASSY, 2P/10, BF/10, CS, 90D, manufacturer part number 22691-10-10ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.540
A dimension MM	90.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Construction Style	Crimp
Drop dimension IN	2.200
Drop dimension MM	56.00
End size 1	-10
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	1.188
Hex size 1 MM	30.000
Hose cut off factor IN	2.201
Hose cut off factor MM	56.000
Inside diameter IN	0.472
Inside diameter MM	12.000
Product height in	3.085
Product height mm	78.359
Product length in	4.131
Product length mm	104.927
Product material	Carbon steel
Product width in	1.181
Product width mm	29.997
Thread sealant	No
Thread size 1	G 5/8
Working pressure max BAR	350
Working pressure max PSI	5100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
